– 40 –

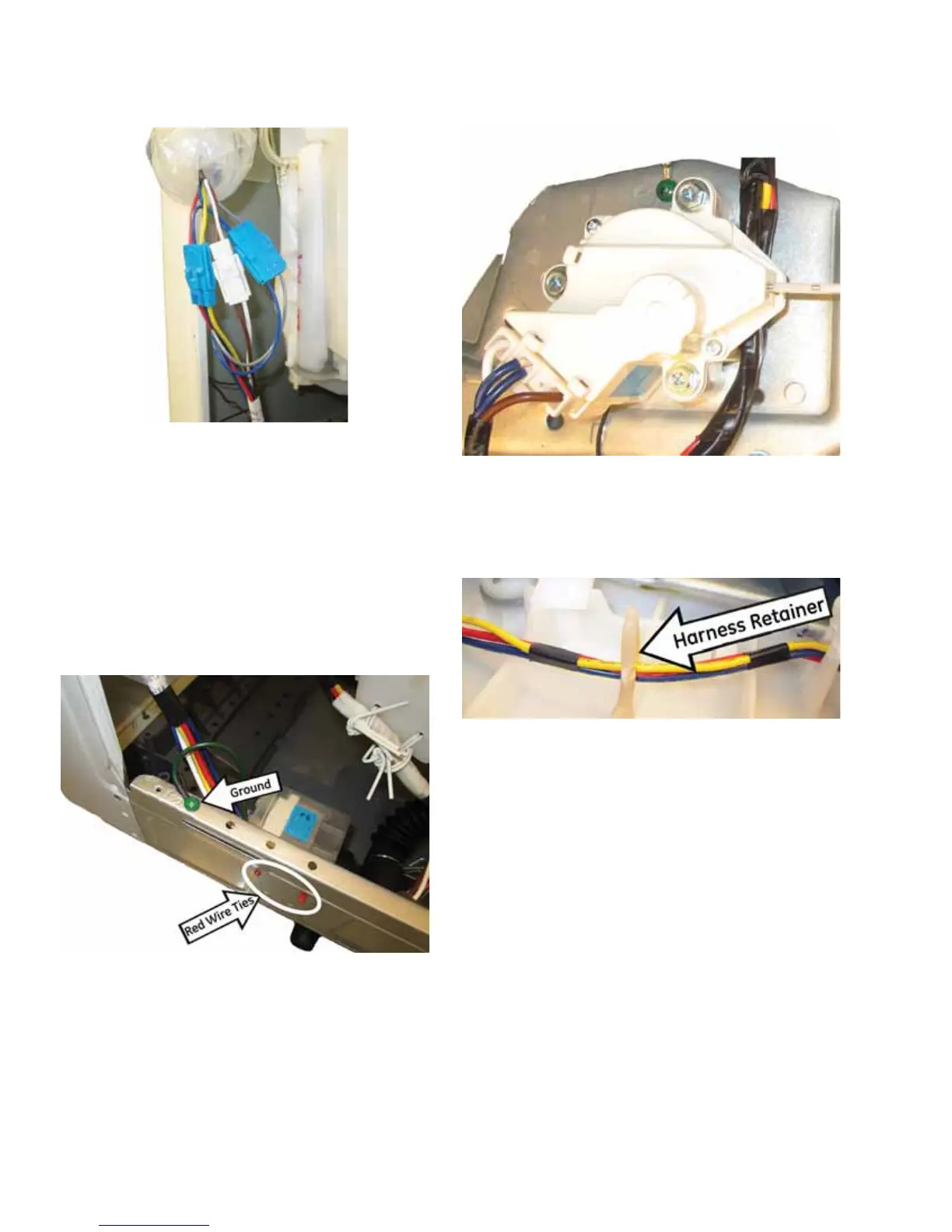

5. Disconnect and remove the harness connectors
that separate the upper harness from the lower
harness.
Lower Harness Replacement
1. Remove the back panel to access the harness
connectors.
2. Remove the ground screw with the green wire
on the lower right side of the cabinet.
NOTE: After reconnecting any ground wire, be sure
to check the component or cabinet that the ground
wire is connected to, to the power cord ground plug.
3. Release the two red harness wire ties from the
cabinet.
4. Disconnect the harness connector from the
pump, drive motor, mode shifter and capacitor.
NOTE: The harness routes under the mode shift
motor and it will need to be removed to replace the
harness.
5. Remove the harness from the bottom of the tub
by un-twisting the harness retainers formed
from the tub and two clips that secures the
harness to the tub.
To Next Page
