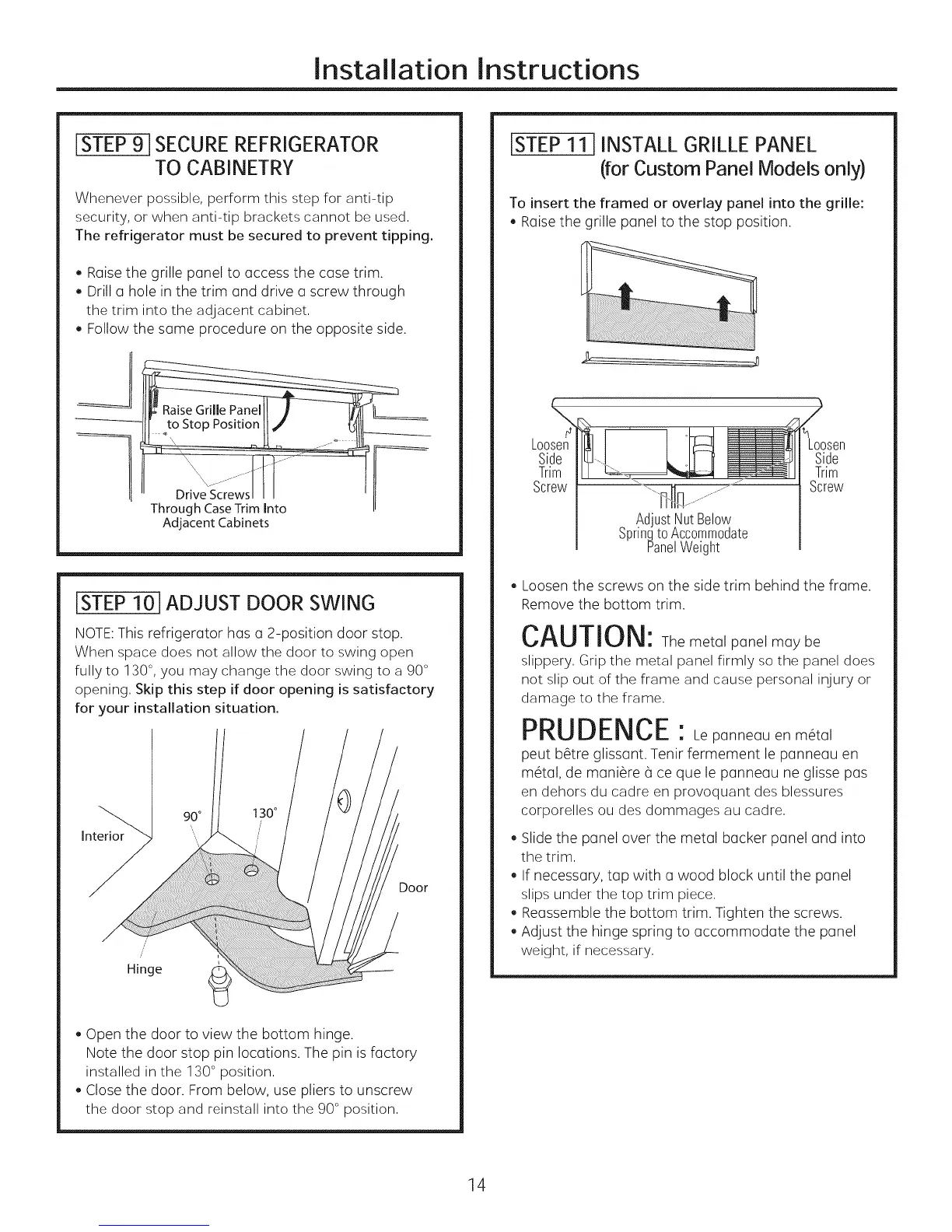

Installation Instructions
[STEP 9] SECURE REFRIGERATOR
TO CABINETRY
Whenever possible, perform this step for anti-tip
security, or when anti-tip brackets cannot be used.
The refrigerator must be secured to prevent tipping.
. Raisethe grille panel to access the case trim.
. Drill a hole in the trim and drive a screw through
the trim into the adjacent cabinet,
. Follow the same procedure on the opposite side.
Through Case Trim Into
Adjacent Cabinets
[STEP 101ADJUST DOOR SWING
NOTE: This refrigerator has a 2-position door stop.
When space does not allow the door to swing open
fully to 130 °, you may change the door swing to a 90 °
opening, Skip this step if door opening is satisfactory
for your installation situation.
Interior
130 °
Door
/
/'
Hinge
. Open the door to view the bottom hinge.
Note the door stop pin locations. The pin is factory
installed in the 130° position,
. Close the door. From below, use pliers to unscrew
the door stop and reinstall into the 90° position,
ISTEP 111 INSTALL GRILLE PANEL
(for Custom Panel Models only)
To insert the framed or overlay panel into the grille:
. Raisethe grille panel to the stop position.
A=== j
Loosen Loosen
Side Side
Trim Trim
Screw Screw
AdjustNutBelow
SpringtoAccommodate
PanelWeight
Loosen the screws on the side trim behind the frame.
Remove the bottom trim.
CAUTION: The metal panel may be
slippery, Grip the metal panel firmly so the panel does
not slip out of the frame and cause personal injury or
damage to the frame,
PRUDENCE : LepanneauenmGtal
peut b#tre glissant. Tenir fermement le panneau en
mGtal,de mani#re 6 ce que le pannemu ne glisse pros
en dehors du cadre en provoquant des blessures
corporelles ou des dommages au cadre,
. Slide the panel over the metal backer panel and into
the trim,
. If necessary, top with a wood block until the panel
slips under the top trim piece,
. Reassemble the bottom trim. Tighten the screws.
. Adjust the hinge spring to accommodate the panel
weight, if necessary,
14
