GE ZISS480NXBSS

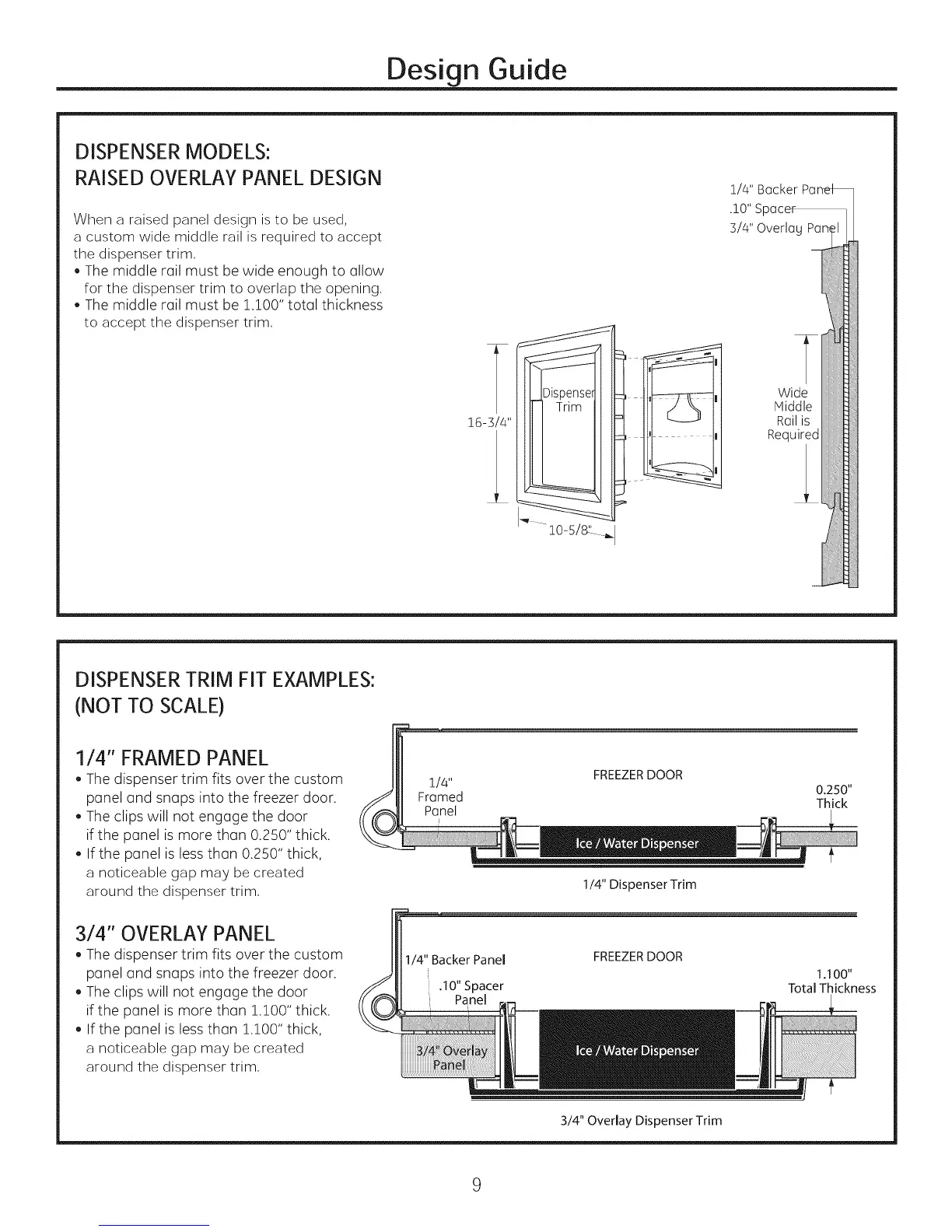

Design Guide
DISPENSER MODELS:
RAISED OVERLAY PANEL DESIGN
When a raised panel design is to be used,
a custom wide middle rail is required to accept
the dispenser trim.
, The middle rail must be wide enough to allow
for the dispenser trim to overlap the opening.
, The middle rail must be !.!00" total thickness
to accept the dispenser trim.
16-3/4"
i0-5/8:'- "_1
1!4" Backer Pan_4
.10" Spacer
3/4" Overlay Par_
Wide
Hiddle
Rail is
Required
DISPENSERTRIM FIT EXAMPLES:
(NOT TO SCALE)
1/4" FRAMED PANEL
, The dispenser trim fits over the custom
panel and snaps into the freezer door.
, The clips will not engage the door
if the panel is more than 0.250" thick.
, If the panel is less than 0.250" thick,
a noticeable gap may be created
around the dispenser trim.
3/4" OVERLAY PANEL
, The dispenser trim fits over the custom
panel and snaps into the freezer door.
, The clips will not engage the door
if the panel is more than !.!00" thick.
, If the panel is less than !.!00" thick,
a noticeable gap may be created
around the dispenser trim.
1/4" FREEZER DOOR
0250"
Framed Thick
I14" Backer Panel
.I0" Spacer
114" Dispenser Trim
FREEZER DOOR
1.100"
Total Thickness
3/4" Overlay Dispenser Trim
