7 I Installation of service kits

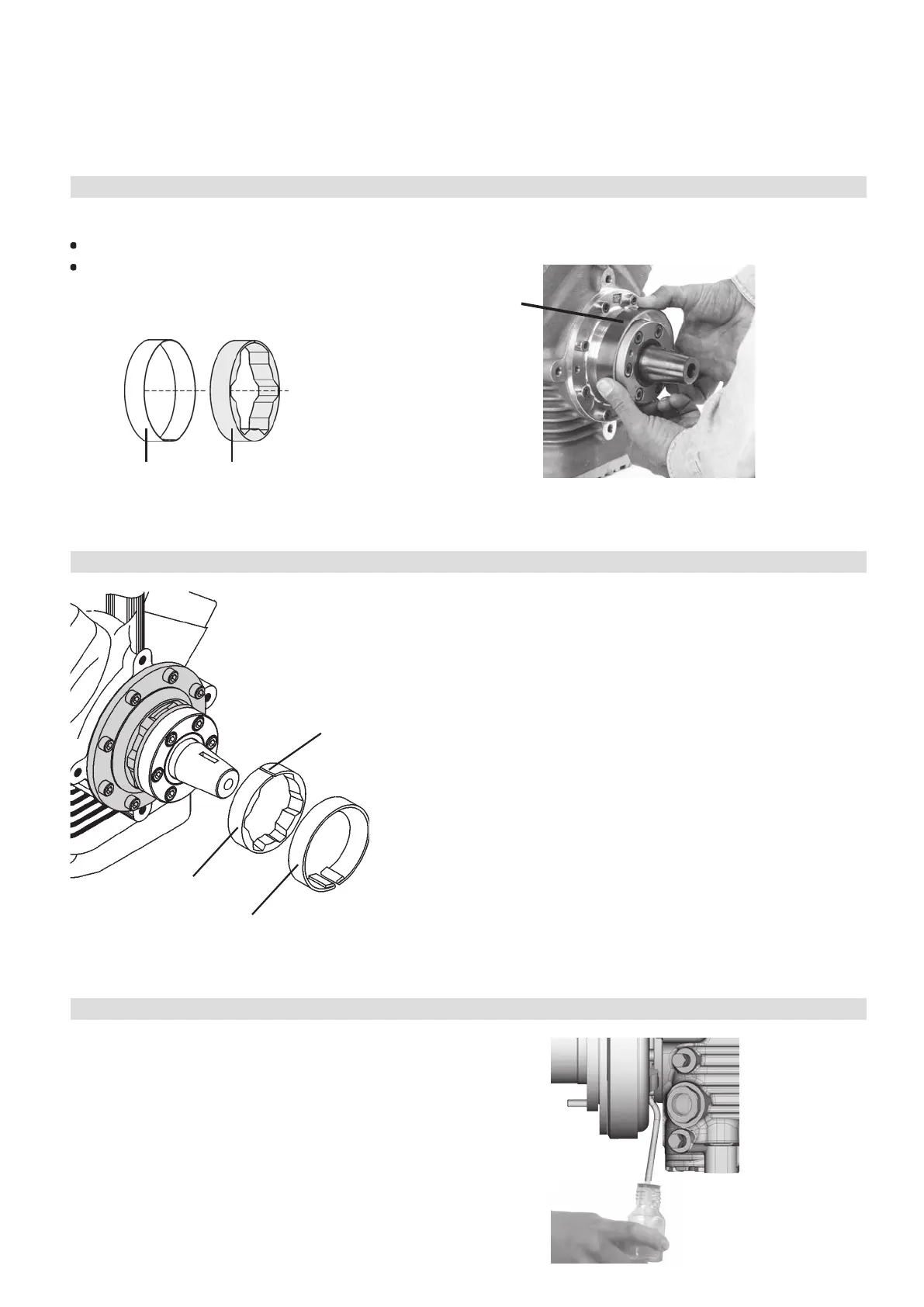

Clamping ring with oil felt (Item No. 80129)
Procedure:
Remove the clamping ring (1) and the oil felt (2) (see Fig. 3)
Insert the oil felt (2) included in the repair kit and mount
the clamping ring (1).
Starting from type code 015- (starting from 4th quarter 2005)
Emptying the oil reservoir: The oil reservoir can be emptied very
simply without having to dismantle the coupling and/or belt drive.
It is recommended that this is done at the same time as the air-
conditioning maintenance and motor service. Proceed by removing
the oil hose from the bracket, remove the sealing plug and drain
the oil into a collecting vessel. After emptying, close the oil hose
with the sealing plug and x it to the bracket. Dispose of used oil
in accordance with the regulations applicable in the country of use.
Clamping ring
Fig. 3
Fig. 2
1
2
Type code 007 - 014
Open at top
2
1
Fig. 4
