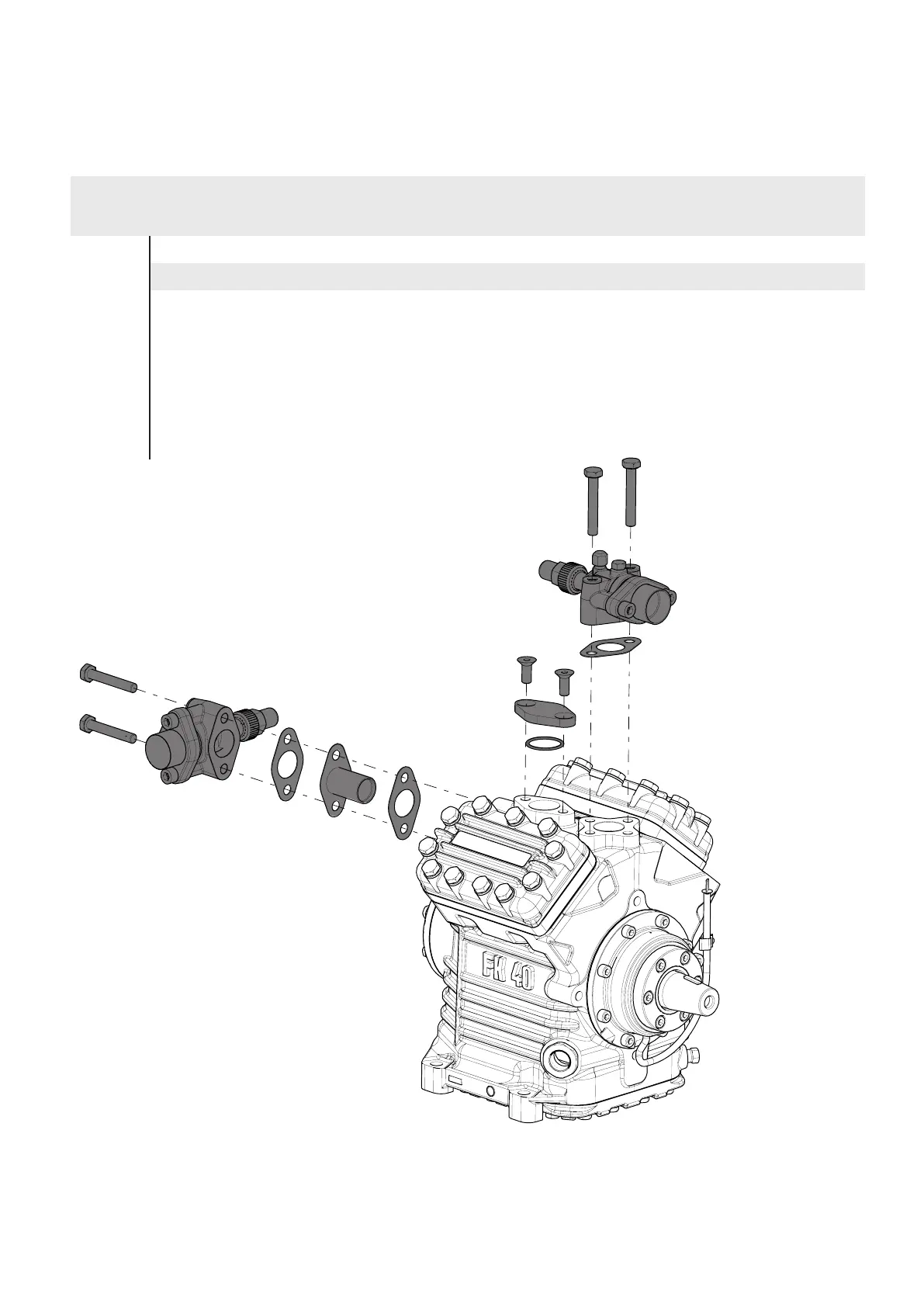

Removal of all shut-off valves and blind anges
Position in
parts list
Parts list position: 2060, 2070, 232
Tools: Spanner SW 17, allen key 6 mm
Working course
220
330, 210
230, 210
233
232, 231
- The compressor has to be depressurized
- Unscrew the xing screws of shut-off valves
- Remove the shut-off valves and the gaskets
- Remove the suction lter and the gasket
- Remove the screws from the blind ange
- Remove the blind ange and the O-ring
10 I Disassembly of the compressor
