41
09665-08.2018-Gb
12 I Assembly of compressor
2

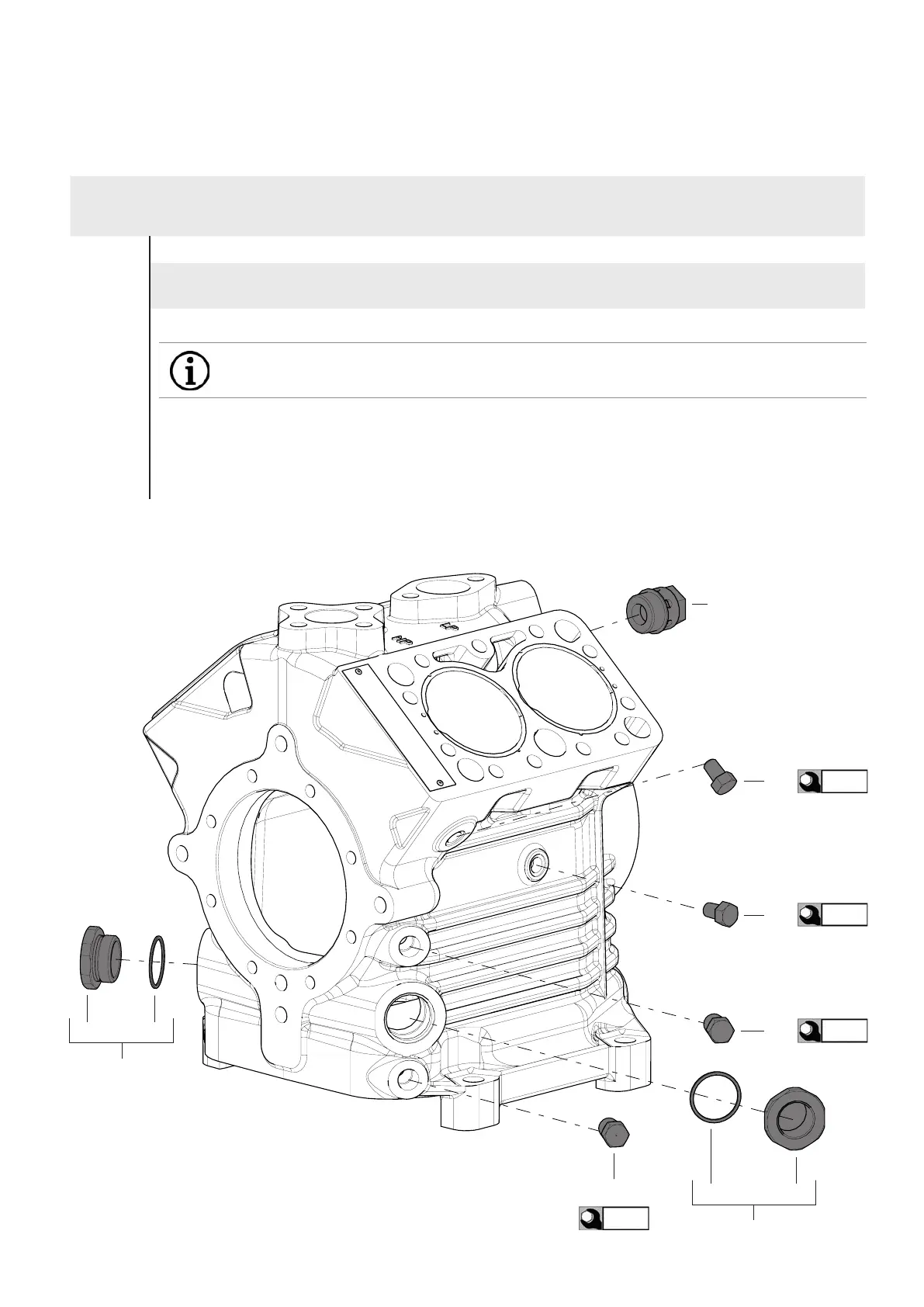

Fitting the sight glass, plugs and decompression valve
Position in
parts list
Parts list position: -
Tools: Spanner SW 13, 14, 30 or 36. For the decompression valve: GEA Bock special tool item No. 09524 (up to A015),
socket wrench SW 22 (from A017)
Working course
570, 590
520
521
100
- Screw on the sight glass with oiled O-ring to the compressor body
- Screw in the 1/8“ NPTF screw plugs
- Screw in the 1/4“ NPTF screw plugs
- Screw in the decompression valve into the suction channel
20 Nm
20 Nm
25 Nm
INFO Observe the screw tightening torques!
520
521
521
570 590
2080
100
590 570
2080
520
25 Nm
