53
09665-08.2018-Gb
12

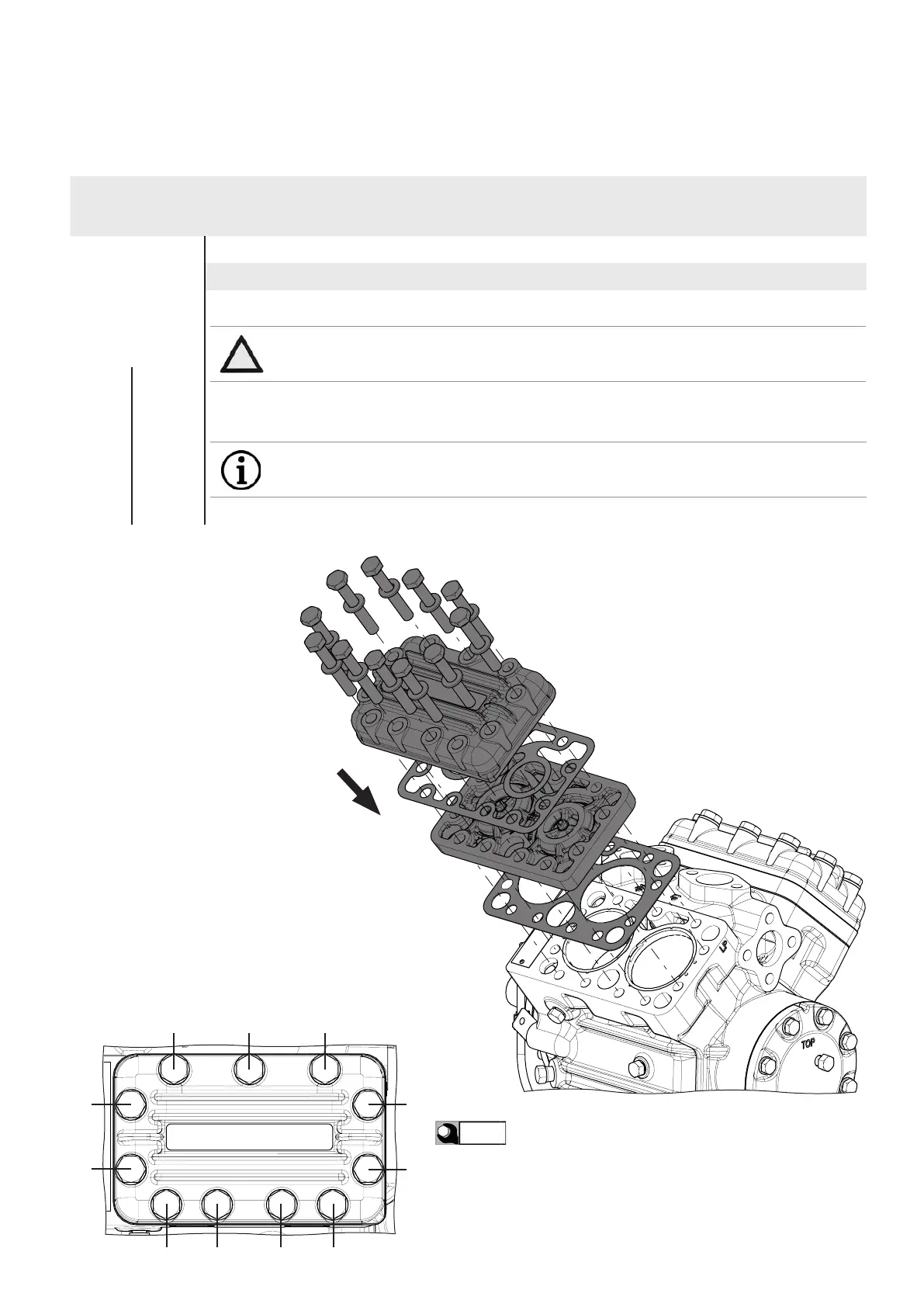

Installation of the cylinder covers and valve plates
Position in parts
list
N / TK K
Parts list position: 170, 2000 (N / TK versions), 1940, 2900 (K version)
Tools: Spanner SW 17
Working course
60, 50
170, 70
180, 181
1920, 1910
1940, 1930
1950, 181
- Mount the valve plate with the lower valve plate gasket onto the body
- Mount the cylinder cover with the upper valve plate gasket on the valve plate
- Tighten the screws and washers cross-wise in at least two steps
12 I Assembly of compressor
ATTENTION Install only the cylinder covers and valve plates which belong together,
avoid mix-ups! Observe the tightening torques!
60 Nm
INFO Mount the K type plate with the marking „TOP“ facing upwards!
9
11
10
8
6
2
3
4
15
7
