Gecko In.stream 2 User Manual

11

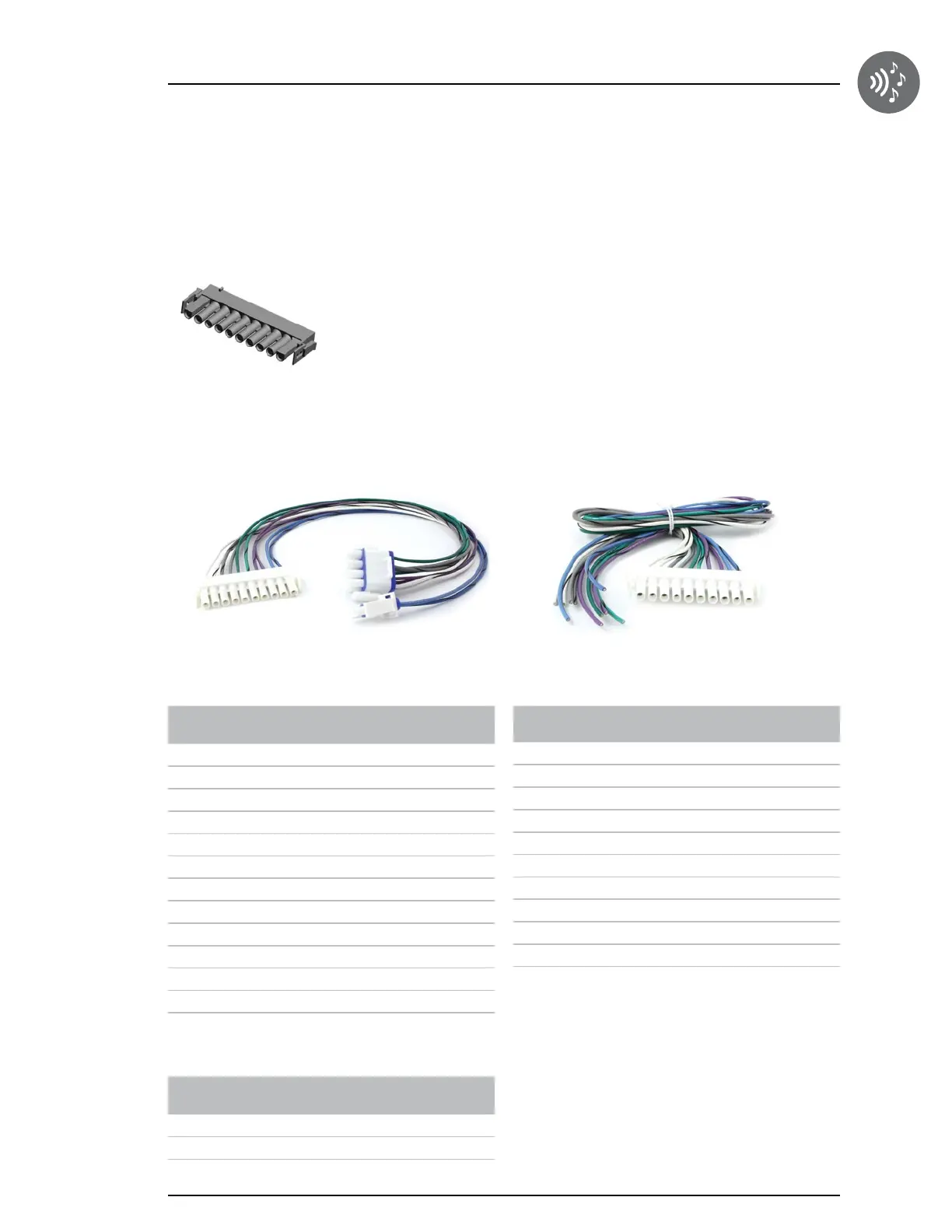

Optional adapter cables
Speaker cables
Connector
pins
Identification Wire Color
1 NC NC
2 NC NC
3 Rear Left speaker (+) Green
4 Rear Left speaker (-) Green-Black
5 Front Right speaker (+) Gray
6 Front Right speaker (-) Gray-Black
7 Rear Right speaker (+) Purple
8 Rear Right speaker (-) Purple-Black
9 NC NC
10 Front Left speaker (+) White
11 Front Left speaker (-) White-Black
12 NC NC
Connector
pins
Identification Wire Color
1 Subwoofer (+) Blue
2 Subwoofer (-) Blue-Black
Connections
An optional adapter cable allows you to connect the 10-pin connector from the in.stream 2 to the 3x4-pin connector
commonly used in spa audio systems. With this adaptor, the subwoofer output is on a separate 1x2-pin connector.
Customer made cable
For customer that want to build their own cable, the following parts can be used.
3x4-pin
1x2-pin
10-pin
Part number: 9920-401425 Part number: 9920-401428
Connector
pins
Identification
Wire Color
1 Front Left speaker (+) White
2 Front Left speaker (-) White-Black
3 Front Right speaker (-) Gray-Black
4 Front Right speaker (+) Gray
5 Rear Left speaker (+) Green
6 Rear Left speaker (-) Green-Black
7 Rear Right speaker (-) Purple-Black
8 Rear Right speaker (+) Purple
9 Subwoofer (+) Blue
10 Subwoofer (-) Blue-Black
The required housing connector is a 10 position Universal MATE-N-LOK.
TE CONNECTIVITY: Part number 926302-3
The suggested crimping contact are for AWG 14-20 TE CONNECTIVITY:
Part number 350550-3
