Gecko Y Series Tech Book

22
Y Series TechBook
Pump 2 (A2)
Voltage 120 V 240 V
Green / ground P51 P51
Black / low speed K6-P K6-P
Red / high-speed K3-P K3-P
White / common P60 P71
Blower (A4) (in.ye-5 ce only)
Voltage 120 V 240 V
Green / ground P48 P48
Black / line K6-P K6-P
White / common P57 P68
Pump 3 (A4) (in.yt-5 ce only)
Voltage 120 V 240 V
Green / ground P48 P48
Black / low speed K6-P K6-P
White / common P57 P68
Circ. pump* (A1)
Voltage 120 V 240 V
Green / ground P52 P52
Black / line K1-P K1-P
White / common P61 P72
Light (12 V AC, 1A Max.)
Voltage
Always on P34
Relay P35
Pump 1 (A3)
Voltage 120 V 240 V
Green / ground P49 P49
Black / low speed K2-P K2-P
White / common P58 P69
Ozonator* (A1)
Voltage 120 V 240 V
Green / ground P52 P52
Black / line K1-P K1-P
White / common P61 P72
Direct output 1 (in.ye-5 ce only)
(Floating connector)
Voltage 120 V 240 V
Green / ground P47 P47
Black / line P32 P32
White / common P56 P67
This table shows typical connections OEMs may have a different connection scheme
* Ozonator and circ pump can be combined on the same output via the optional splitter PP1.

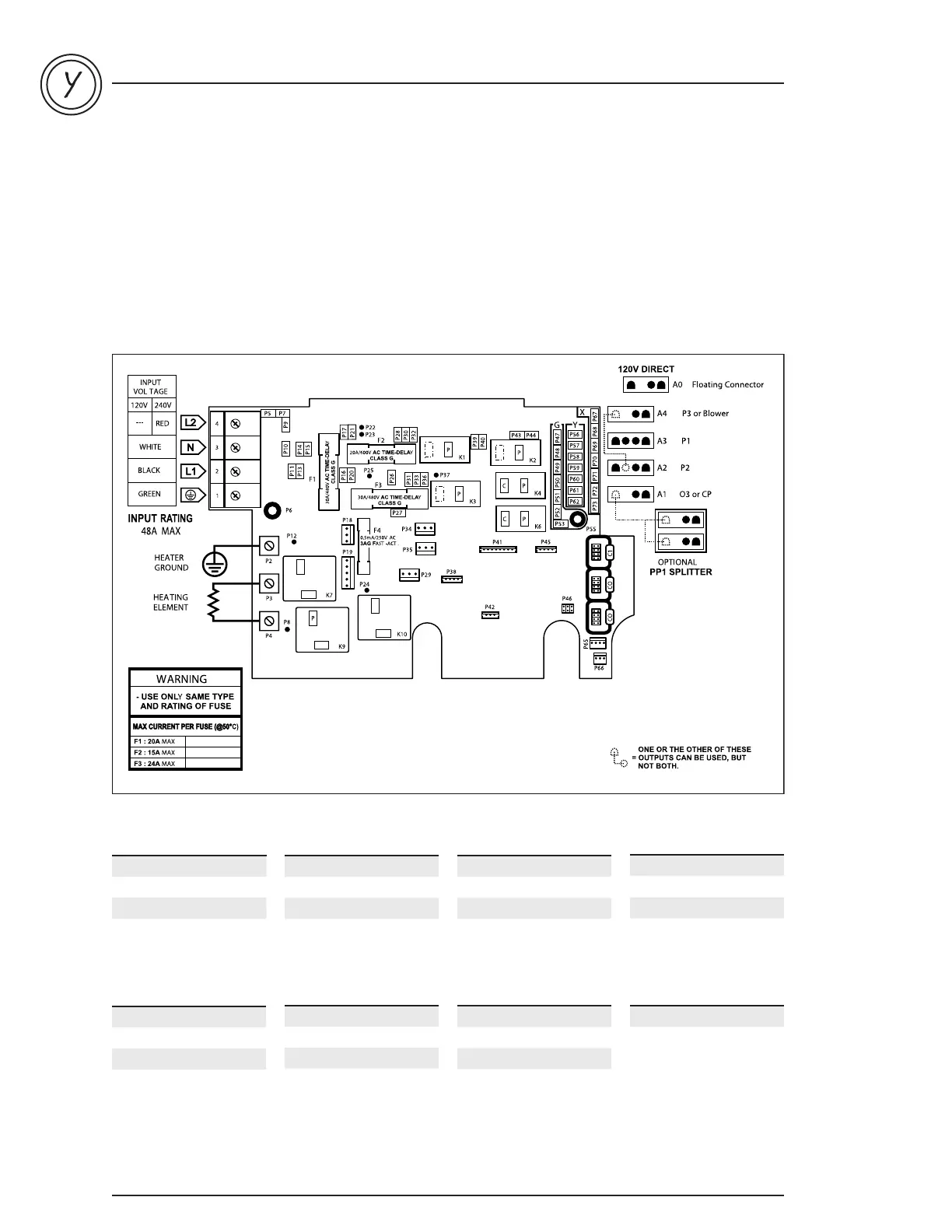

High voltage accessory connections
Two options are available with Y Series spa packs for connecting high voltage accessories: 0250” quick-connect
terminals, or AMP pins and housings
in.ye
These tabs require high-voltage accessories to have straight, non-insulated, female quick-connect terminals for all
connections, including ground Depending on where the connections are made on the inye pack PCB, 120 V and
240 V accessories are supported Refer to the following tables for correct connections Note that all female terminals
must be correctly and completely seated on the PCB tab for proper current ratings
