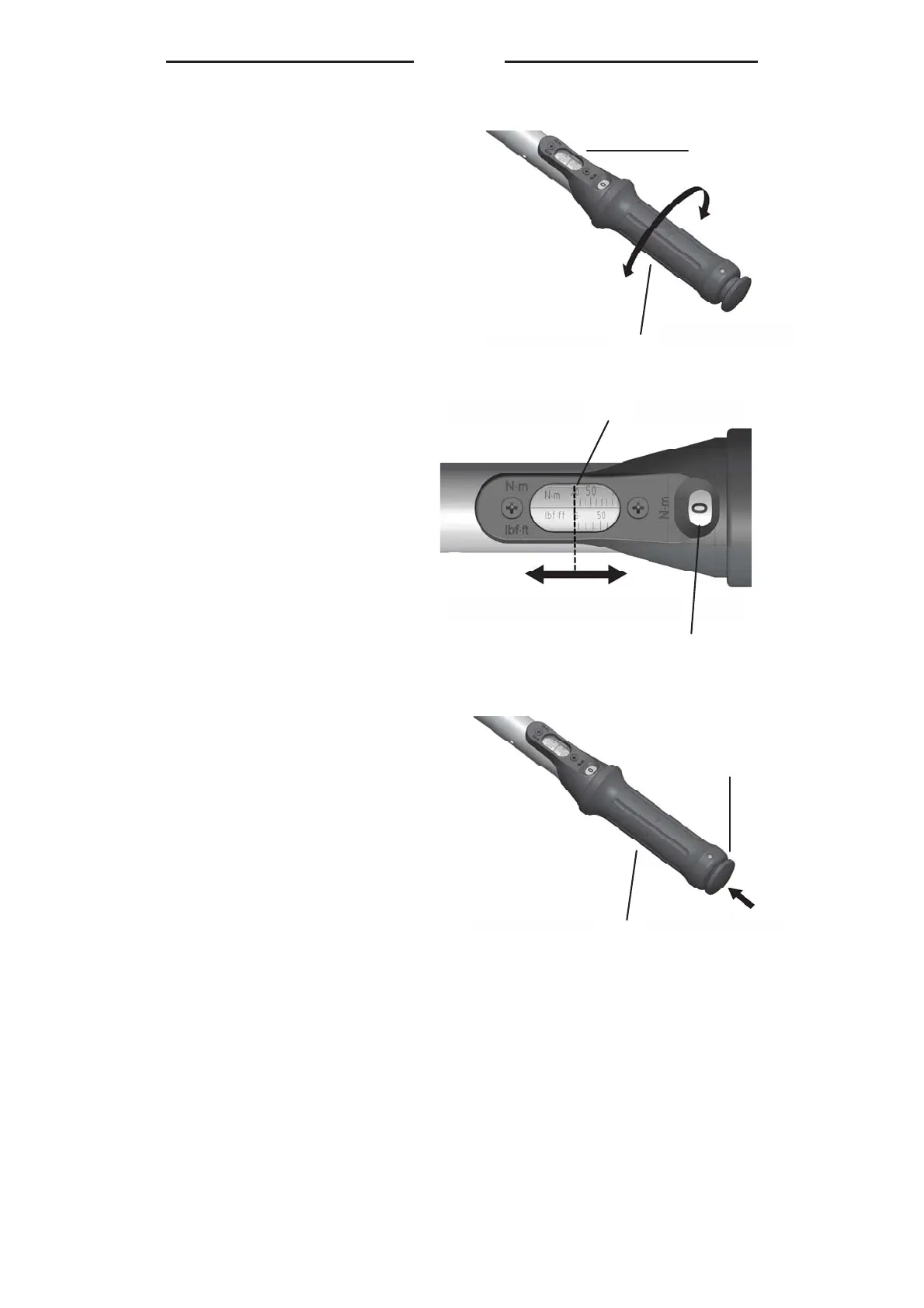

Turn the handle (2) until the
desired torque in the
particular scale (3) N·m or
lbf·ft / lbf·in is identical with
the mark in the reading
glass.
Make a precise
adjustment of the main
scale using the
micrometer scale (4).
Insert the locking button
(1) into the end of the
handle (2) again. Care
must be taken to ensure
that the locking button (1)
locks into place correctly.
Only then has the torque
been set correctly.
