Geeetech GT2560 User Manual

GEEETECH
www.geeetech.com Tel: +86 755 2658 4110 Fax: +86 755 2658 4074 -858
- 9 -
5.LCD ENCODER： LCD panel
6. SD Card
7. X_MIN/X_MAX/Y_MIN /Y_MAX /Z_MIN /Z_MAX: 6 end stop input, XH2.54-2Pin
8. TEMP1: temperature sensor for extruder 1, XH2.54-2Pin
9. TEMP2: temperature sensor for extruder 2, XH2.54-2Pin
10. TEMP3: temperature sensor for heatbed, XH2.54-2Pin
11. X,Y,Z：Stepper motors for X, Y, Z axis, XH2.54-4Pin
12. EXT1, EXT2(A)：Stepper motors for extruder 1 and extruder 2, XH2.54-4Pin
13. FAN1，FAN2，FAN3：3 12V cooling fans, PH2.0-3Pin
14.1 PWM: PWM output for cooling fan, FAN: PH2.0-3Pin

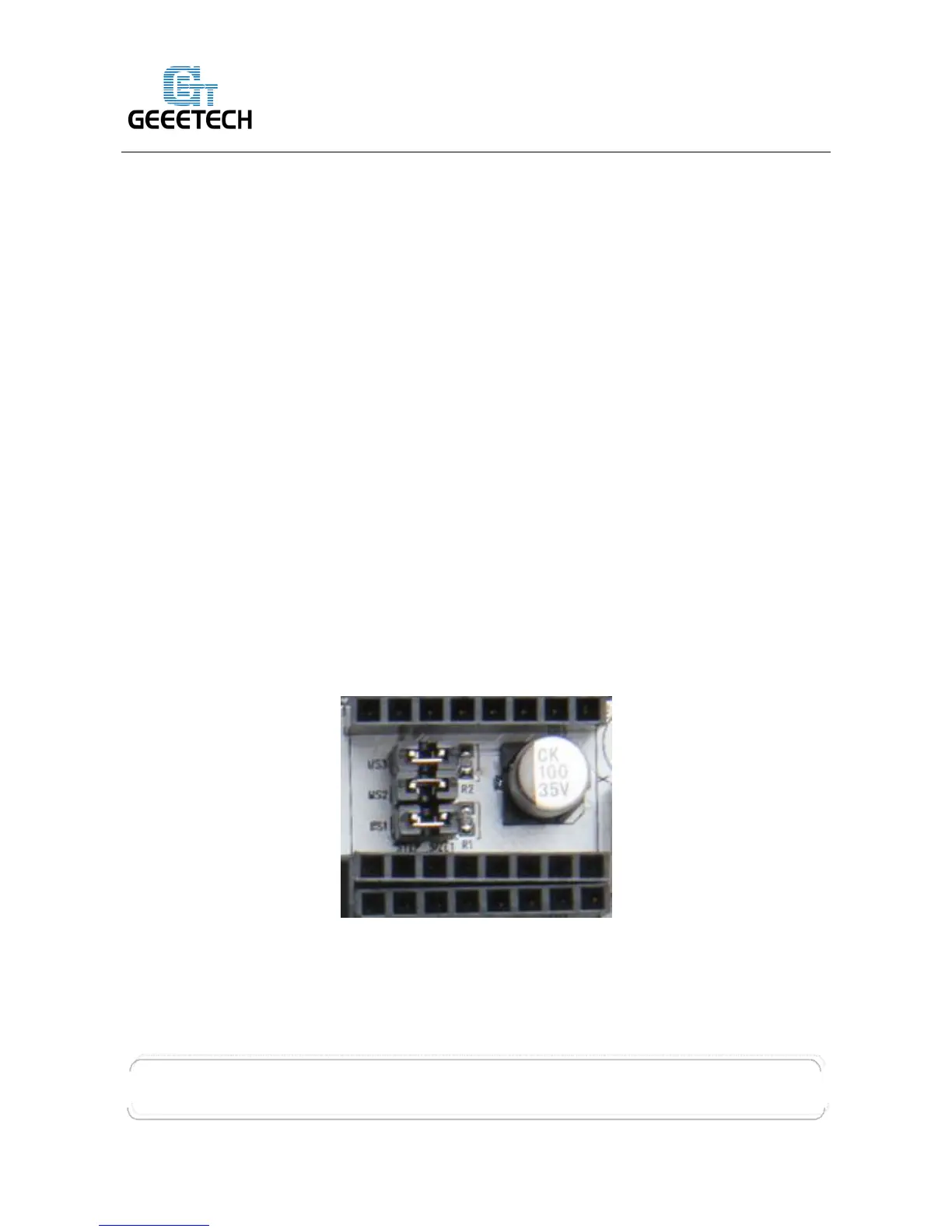

2.3 subdivision of stepper motor
Use jumper caps to subdivide stepper motor. When jumper cap is plugged, it is ON.
2-2
1. Subdivision on the base of A4988 stepper driving module:
