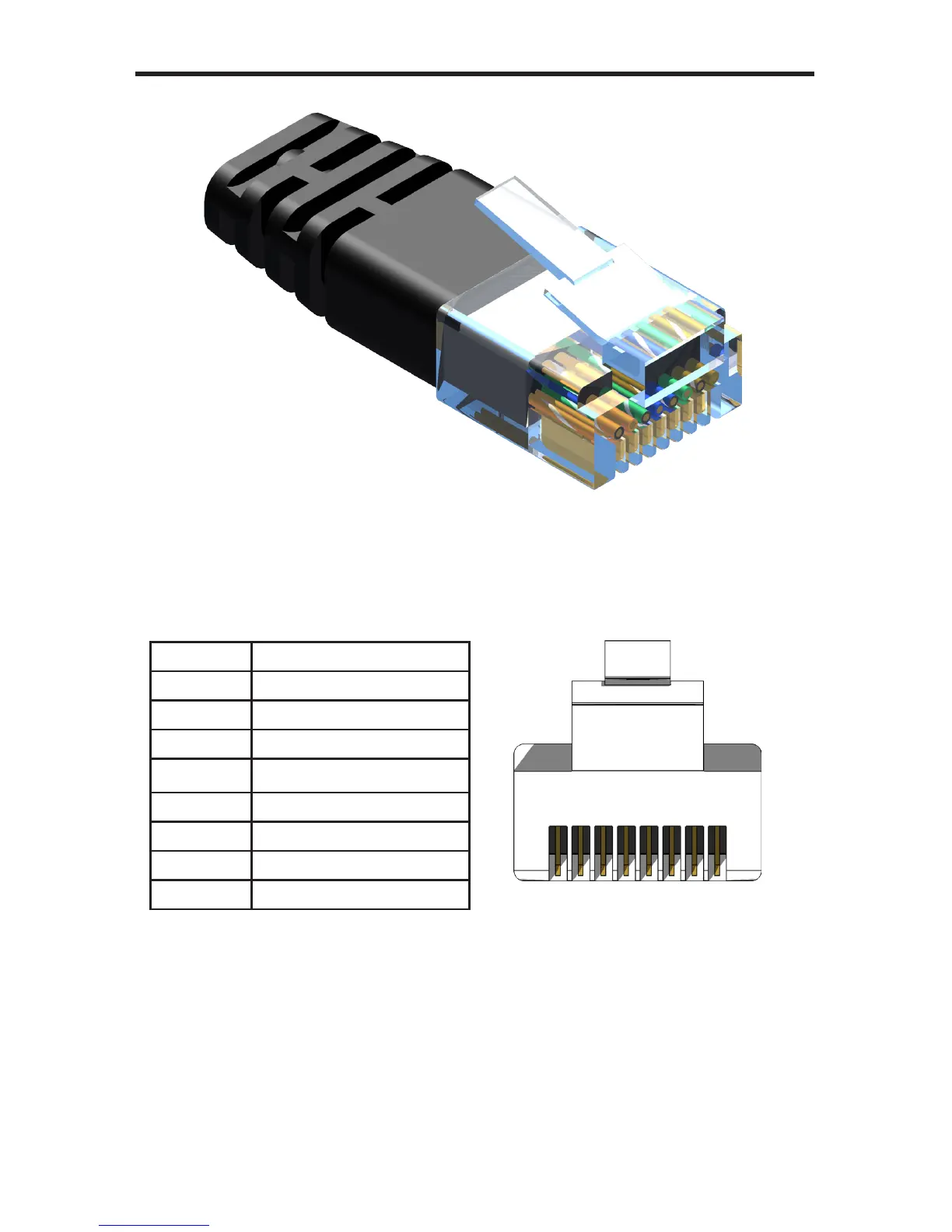

1 2 3 4 5 6 7 8
Gefen recommends the TIA/EIA-568-B wiring option. Please adhere to the table
belowwheneldterminatingcableforusewithGefenproducts.
Pin Color
1 Orange / White
2 Orange
3 Green / White
4 Blue
5 Blue / White
6 Green
7 Brown / White
8 Brown
11
NETWORK CABLE WIRING DIAGRAM
Cat-5, Cat-5e, and Cat-6 cabling comes in stranded and solid core types. Gefen
recommends using solid core cabling.
It is recommended to use one continuous run from one end to the other. In some
cases, connecting through a patch might not work.
