Size 2: Mounting on a flat surface.
Din rail type installation
：
Din rail kit includes a plastic adaptor plate as an attachment for the inverter base.
Refer to Diagram below:

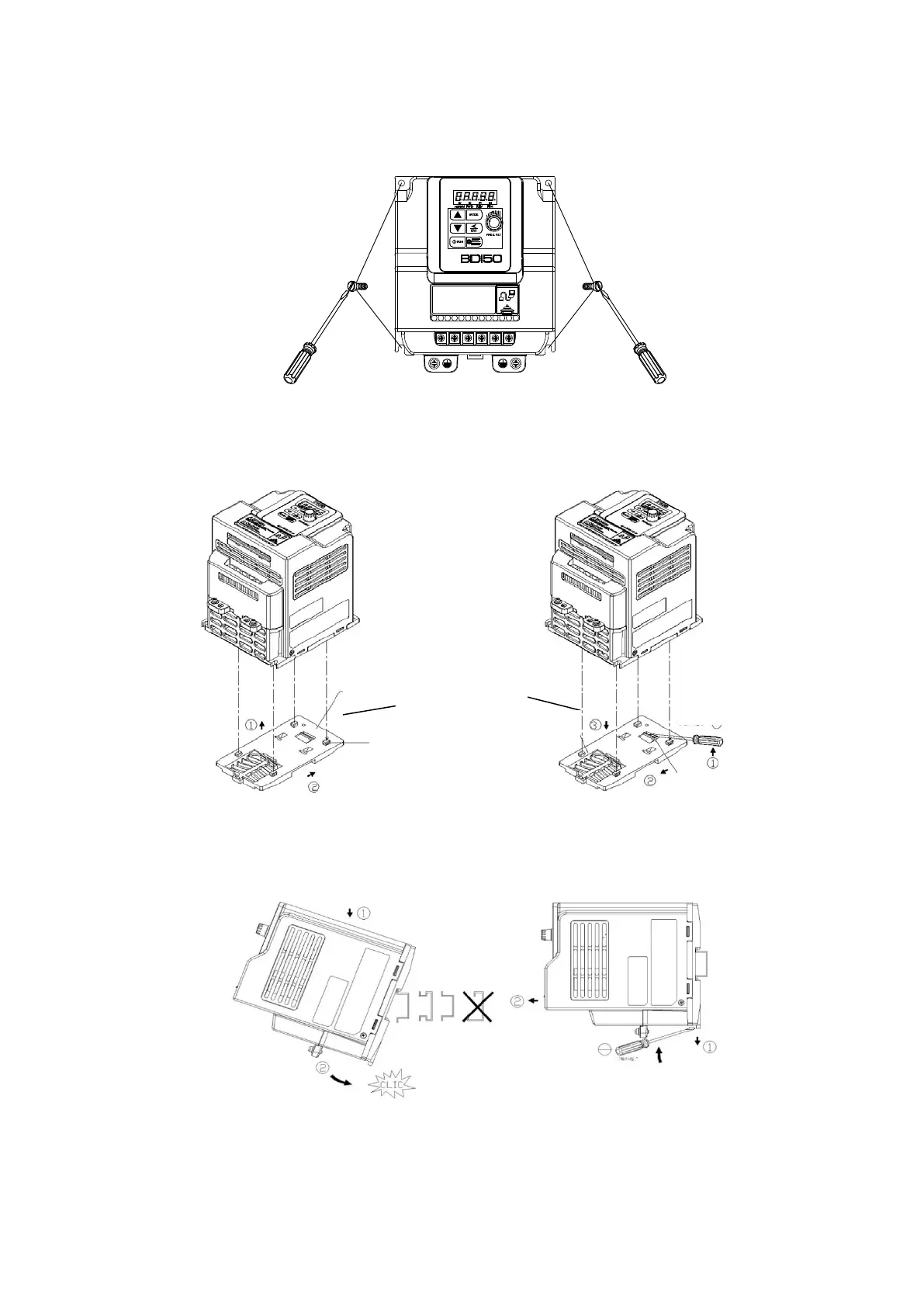

Din Rail Mounting & Dismounting as shown in the diagram below:Use a 35mm Din Rail.
Plastic adaptor plate.
KIT DIN BDI50 Size 2 (Size 2 Din rail kit model)
M4
Mounting
Dismounting
Assembly:
Disassembly:
Plastic Adaptor plate
Snap hook
Middle Snap hook
Snap hook
