4.1.3 Digital display set up

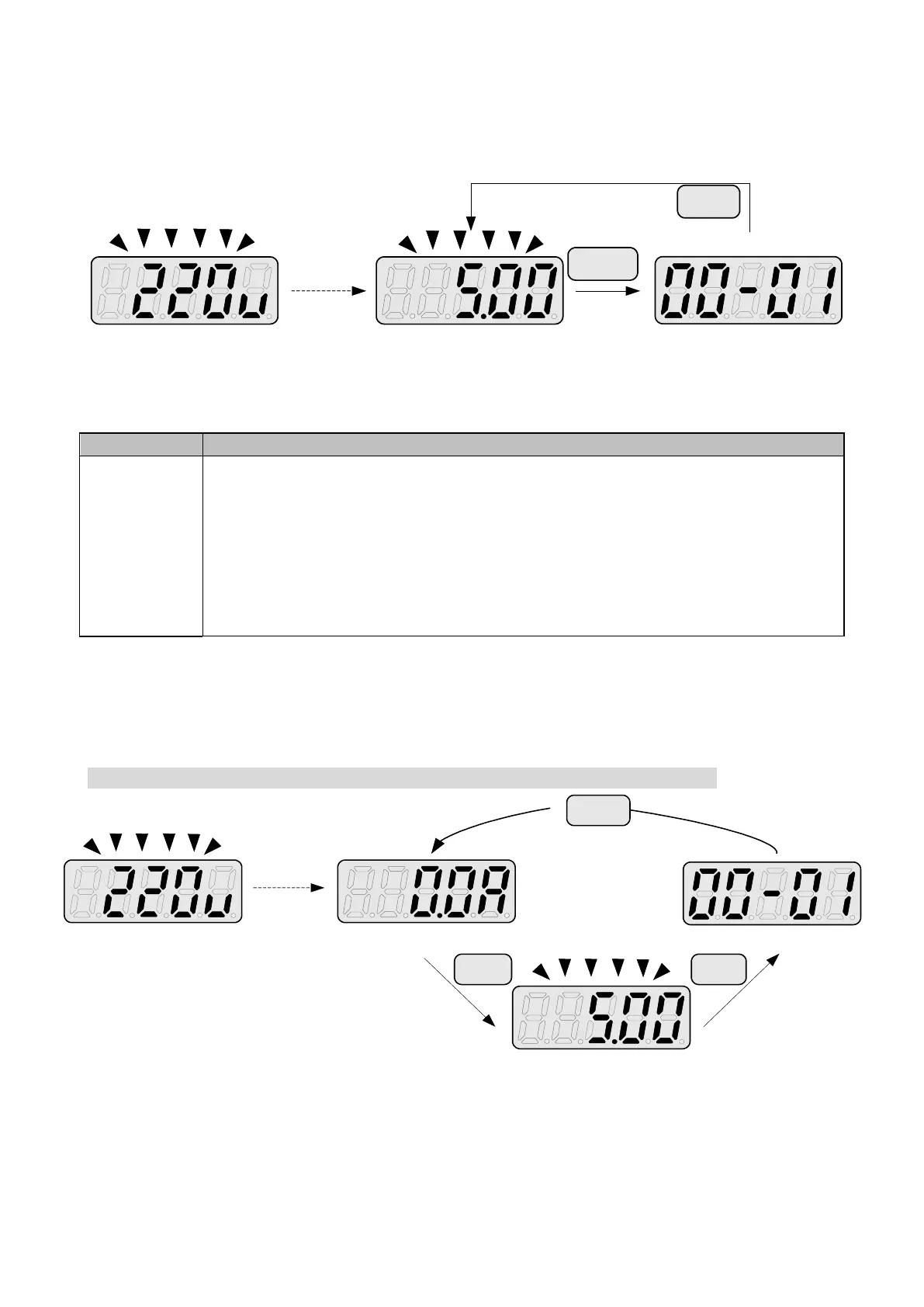

On power up digital display screens will be as shown below.
MODE
2sec later
Power supply
frequency
parameter
MODE
User selectable display formats:
12- 00
Display Mode
Range
0 0 0 0 0
high
Low
Each of the above 5 digits can be set to any of the selections below from 0 to 7
【0】:Disable display
【1】:output Current
【2】:output Voltage
【3】:DC voltage
【4】:Temperature
【5】:PID feedback
【6】:AVI
【7】:ACI
The highest bit of 12-00 sets the power on the display, other bits set the selected display from range
0-7.as Listed above.
Example1: Set parameter 12- 00=
【
10000
】
to obtain display format shown below.
MODE
MODE MODE
2sec later
display：Power supply
Output Current
Set frequency
parameter
