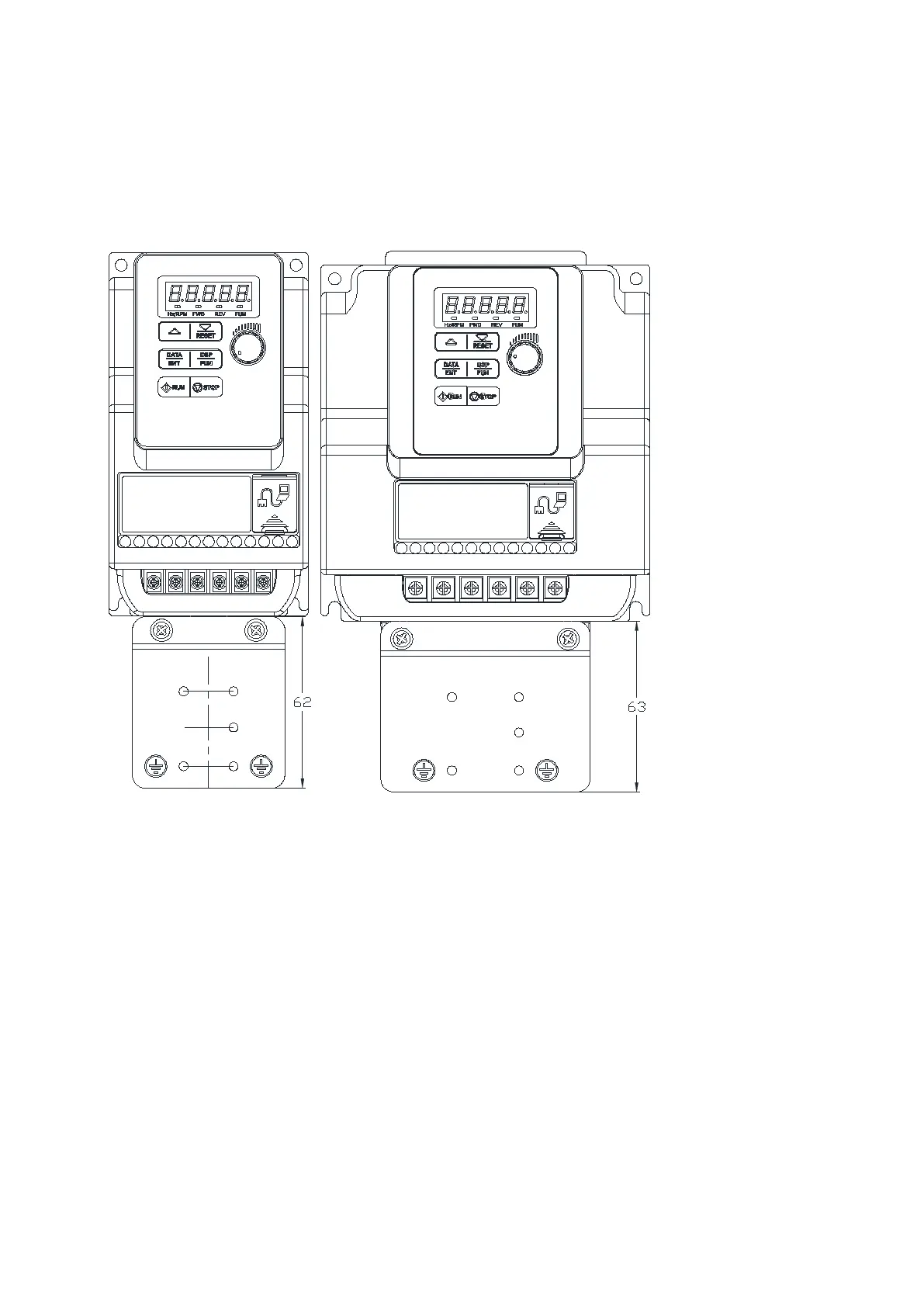

3-7
Installation for Grounding kit
Grounding kit
：
As bellowed diagram, use screw to install EMC metal plate into heatsink.
Size 1 Size 2
