Geist Watchdog 15 Series User Manual

GM1137
7
Revision Date: 02/13/2015
Save changes.
The unit should now be accessible in a web browser via the unit’s permanent IP address:
http://192.168.123.123/. See Unit Configuration (page 13) for details.
Mac OS
Open System Preferences via the Dock or the Apple menu.
Select “Network” under “Internet & Network.”
Select “Ethernet” from the list on the left side of the window and enter these settings on the
right side of the window:
 Configure: Manually
 IP Address: 192.168.123.1
 Subnet Mask: 255.255.255.0
 Router: Leave blank

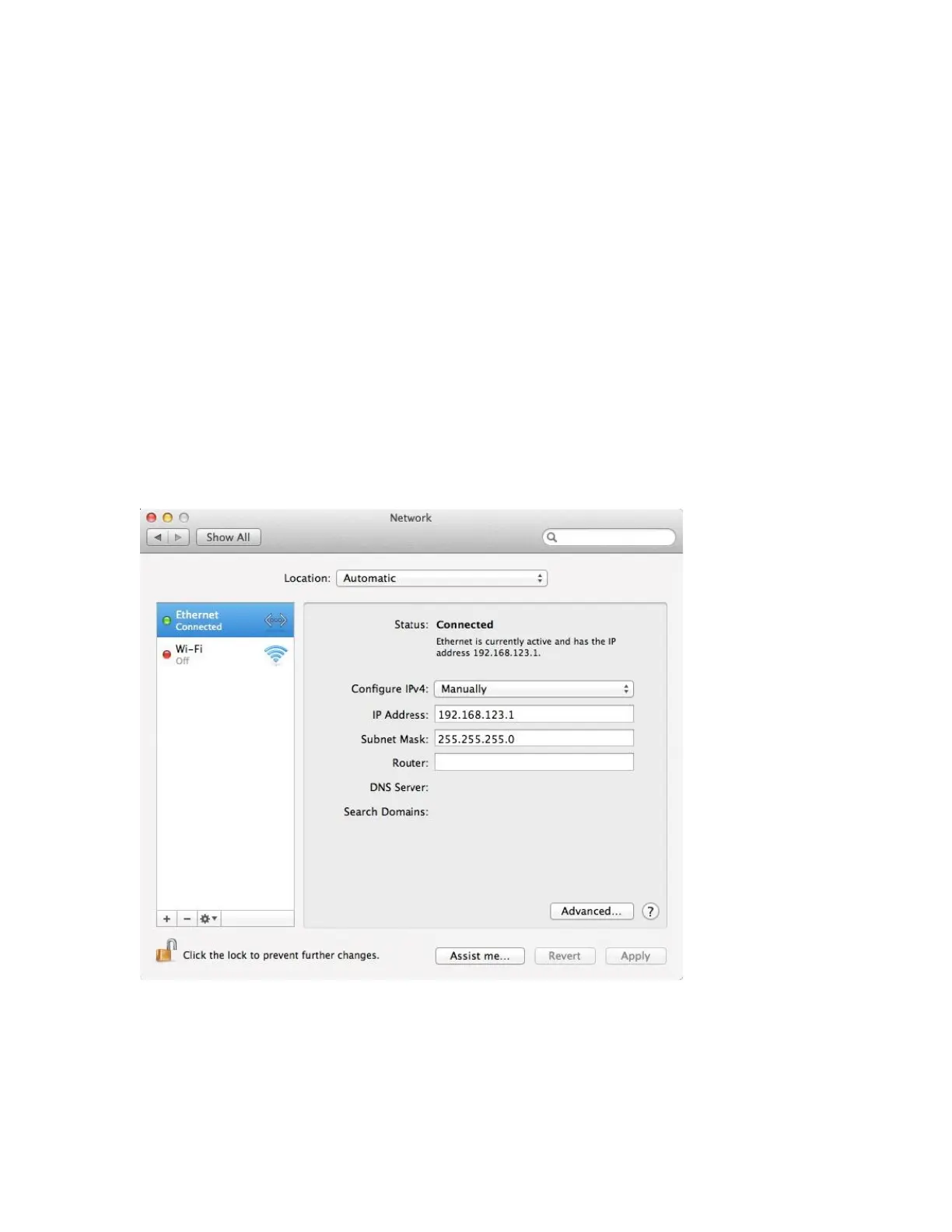

Figure 2: Mac OS network settings for initial setup. Image varies depending on Mac versions.
Apply changes.
The unit should now be accessible in a web browser via the unit’s permanent IP address:
http://192.168.123.123/. See Unit Configuration (page 13) for details.
