GEM M75 - Page 13

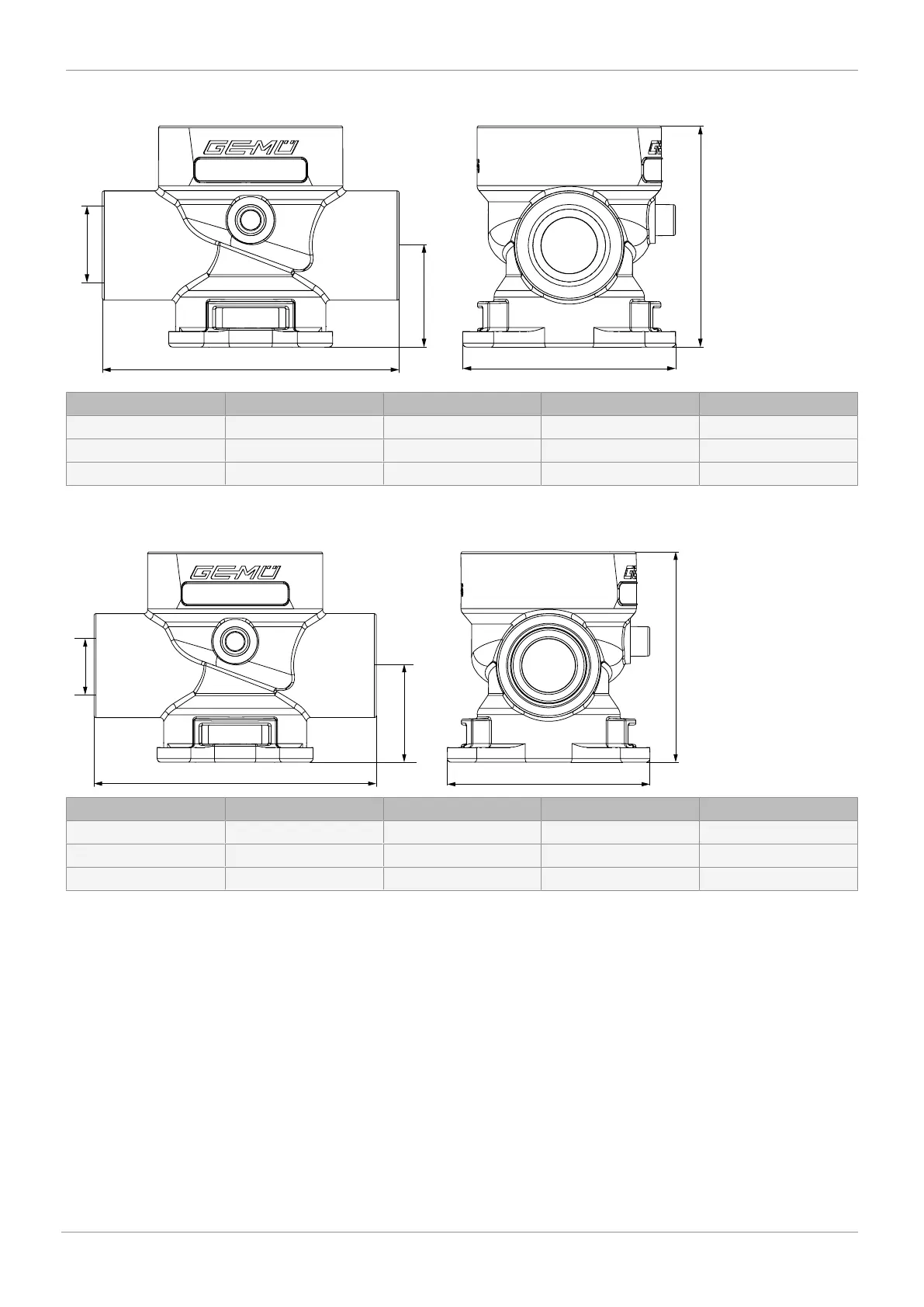

8.2.2 Threaded socket (code 1)
L1
58,0
H
Ød
H1
L1
58.0
H1
H
Ød
Nominal size L1 Ød H H1
DN 8 65.0 G1/4 56.6 26.0
DN 10 76.0 G3/8 56.6 26.0
DN 15 76.0 G1/2 56.6 26.0
Dimensions in mm
8.2.3 Solvent cement socket (code 2)
L1
58,0
H
H1
Ød
L1
58.0
H1
H
Ød
Nominal size L1 Ød H H1
DN 8 65.0 12.2 56.6 26.0
DN 10 76.0 16.2 56.6 26.0
DN 15 76.0 20.2 56.6 26.0
Dimensions in mm
GEMÜ M75www.gemu-group.com 13 / 29
8 Dimensions
