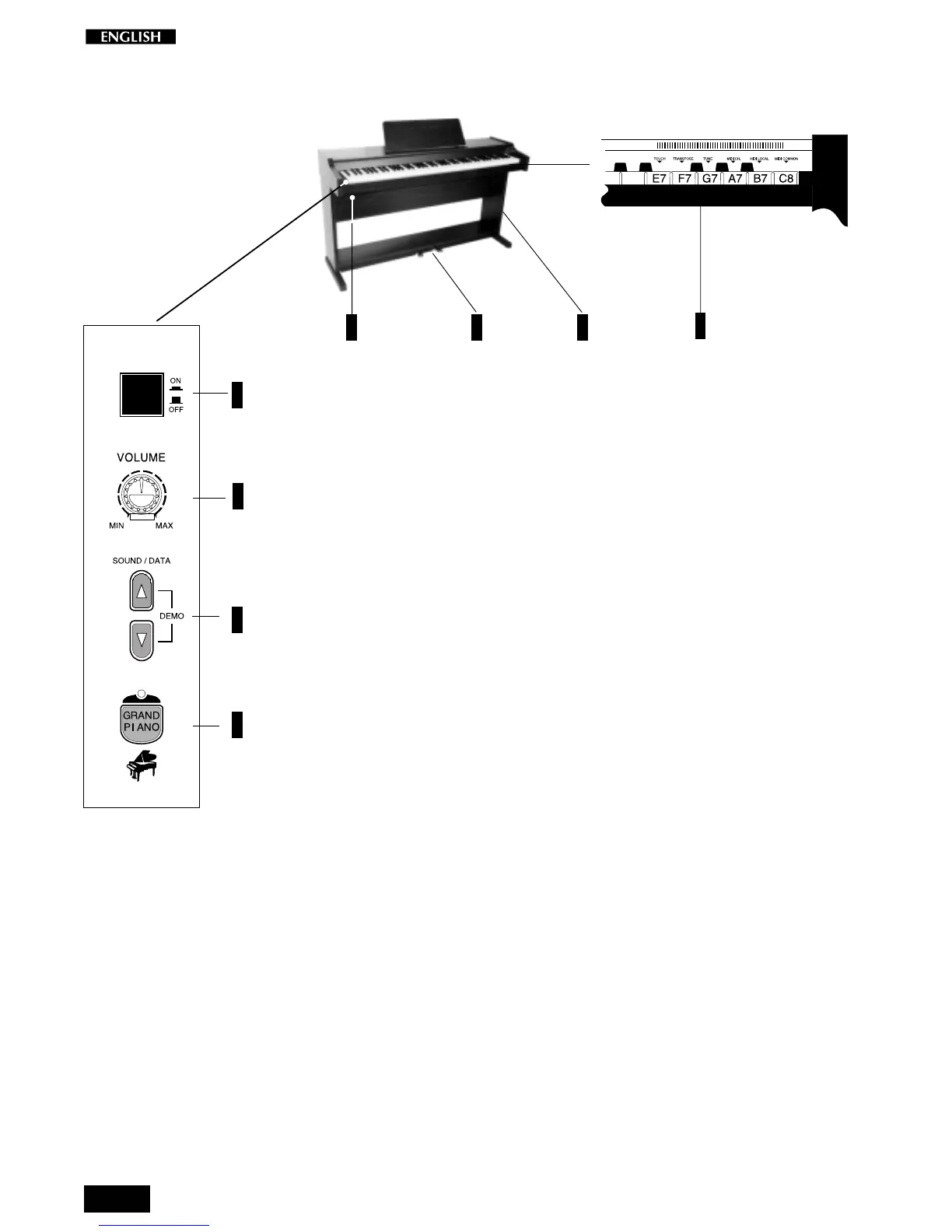

Instrument Overview
1. P
OWER
O
N
/O
FF
Press to turn the instrument on and off.
2. V
OLUME
Control knob to regulate the general volume of the instrument.
3. D
ATA
m
/
n
Use these buttons to select Presets (single, layer or split sound
combinations). Press both buttons at the same time to trigger the
DEMO song.
In Function mode, the Data
m
/
n
buttons change the parameter
status of the current function. The functions are selected with the
last six notes of the highest octave of the keyboard.
4. G
RAND
P
IANO
Press this button to select the GrandPiano Preset which instantly
recalls the GrandPiano sound across the entire keyboard.
5. F
UNCTION
KEYS
Notes E7-C8 of the highest octave are dedicated to the selection
of the RP60/70 functions. The function parameters are selected
with the Data
m
/
n
buttons while holding down a function key.
6. H
EADPHONES
Two Headphone jacks to connect headphones.
7. P
EDALS
Soft and Damper pedals. The cable from the pedal assembly
should be plugged into the rear panel PEDALS connector.
8. C
ONSOLE
The RP60/70 rests on a console which requires assembling.
Refer to the separate mounting instructions.
6
1
2
3
5
7 8
4
