Gema OptiSpray AP02 - Connection Instructions

Rev. 00 12/23
22 • Assembly / Connection OptiSpray AP02
Connection instructions
The Gun control unit and the Application pump(s) are supplied ready for
use by the manufacturer. Just a few cables and hoses must be
connected.

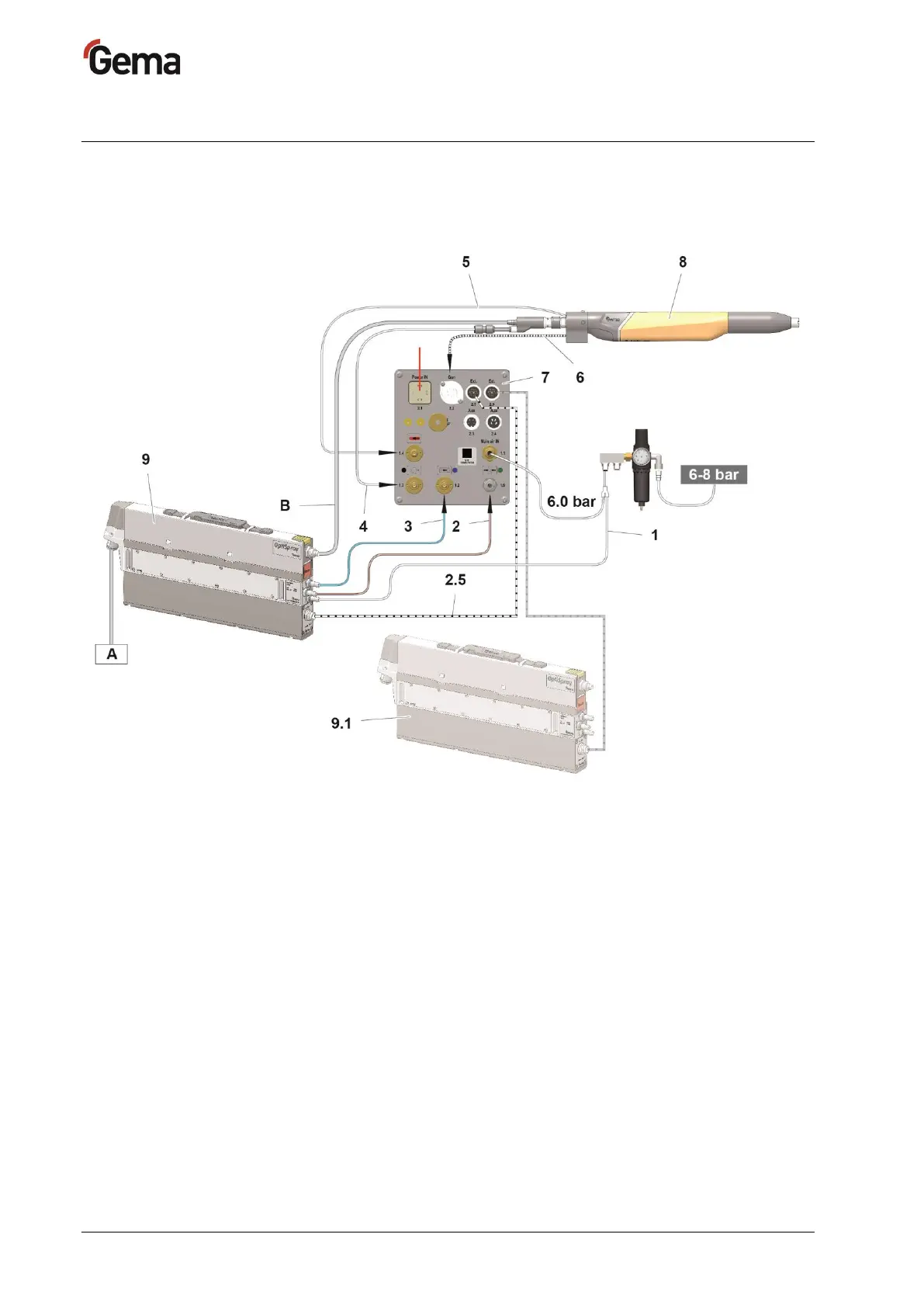

Fig. 7: Connection instructions – overview
A Powder container
B Powder hose
1 Compressed air hose
2 Pinch valve air hose
2.5 Control signal cable
3 Transport air hose
4 Spraying air hose
5 Electrode rinsing air hose
6 Gun cable
7 Control unit
8 Automatic gun with diffuser
9 Application pump no. 1
9.1 Application pump no. 2
