Gema OptiSpray AP02 - Connecting Material

Rev. 00 12/23
56 • Spare parts list OptiSpray AP02
Connecting material
B
Nut with kink protection – M16-Ø 12 mm
1005 443
Powder hose – Ø 11.4/7 mm
1005 097*#
1
Quick release connection – NW5-Ø 8 mm
203 181
Plastic tube – Ø 8/6 mm, black
103 152*
2
Quick release connection – NW5-Ø 8 mm
203 181
Plastic tube – Ø 8/6 mm, green
103 519*
3
Quick release connection – NW5-Ø 8 mm
203 181
Plastic tube – Ø 8/6 mm, blue
103 497*
2.5
Connecting cable – 12 pins, 1.5 m
1000 991
Connecting cable – 12 pins, 2.2 m
393 398
Connecting cable – 12 pins, 5 m
1000 975
Connecting cable – 12 pins, 10 m
1000 976
Connecting cable – 12 pins, 15 m
1000 977
Connecting cable – 12 pins, 20 m
1000 978
* Please indicate length

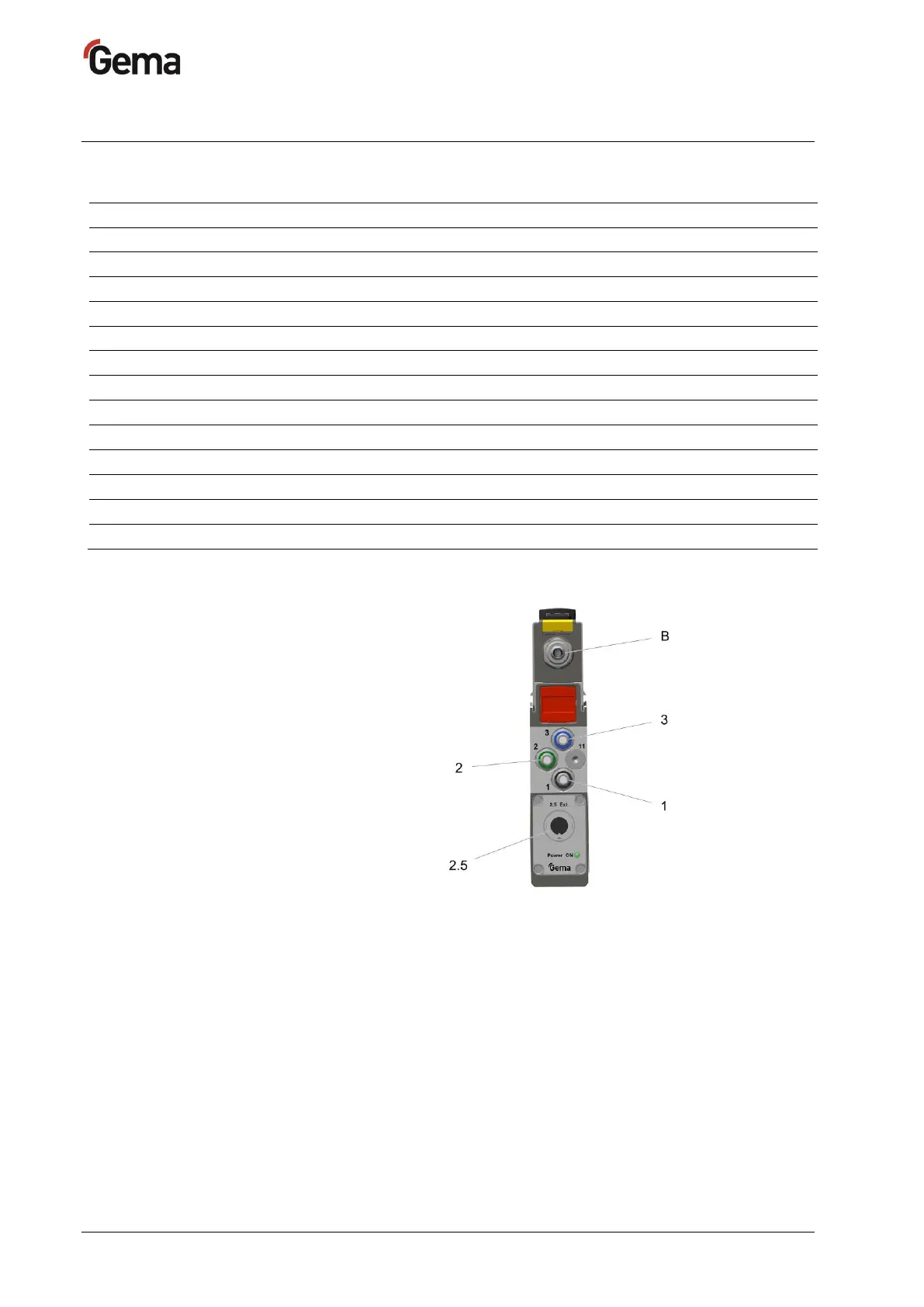

Fig. 16:
