Gema OptiSpray AP02 - Valve Assembly B

Rev. 00 12/23
OptiSpray AP02 Spare parts list • 53
Valve assembly B
1
Solenoid valve – complete
1023 975
2
Gasket
1026 776
3
O-ring – Ø 12x1.5 mm
1026 375 #
4
Screw – M4x10 mm
1026 379
7
O-ring – Ø 13x1.5 mm
1026 353 #
8
Coupling plug
1023 992
9
Coding ring – black
1026 334
10
Coding ring – green
1026 336
11
Coding ring – blue
1026 335
12
Injector unit – complete (incl. pos. 13, 14, 15)
1023 851
13
Angular connection
1023 893
14
Filter
1023 894
15
O-Ring – Ø 7x1.5 mm
1026 355 #
# Wear part

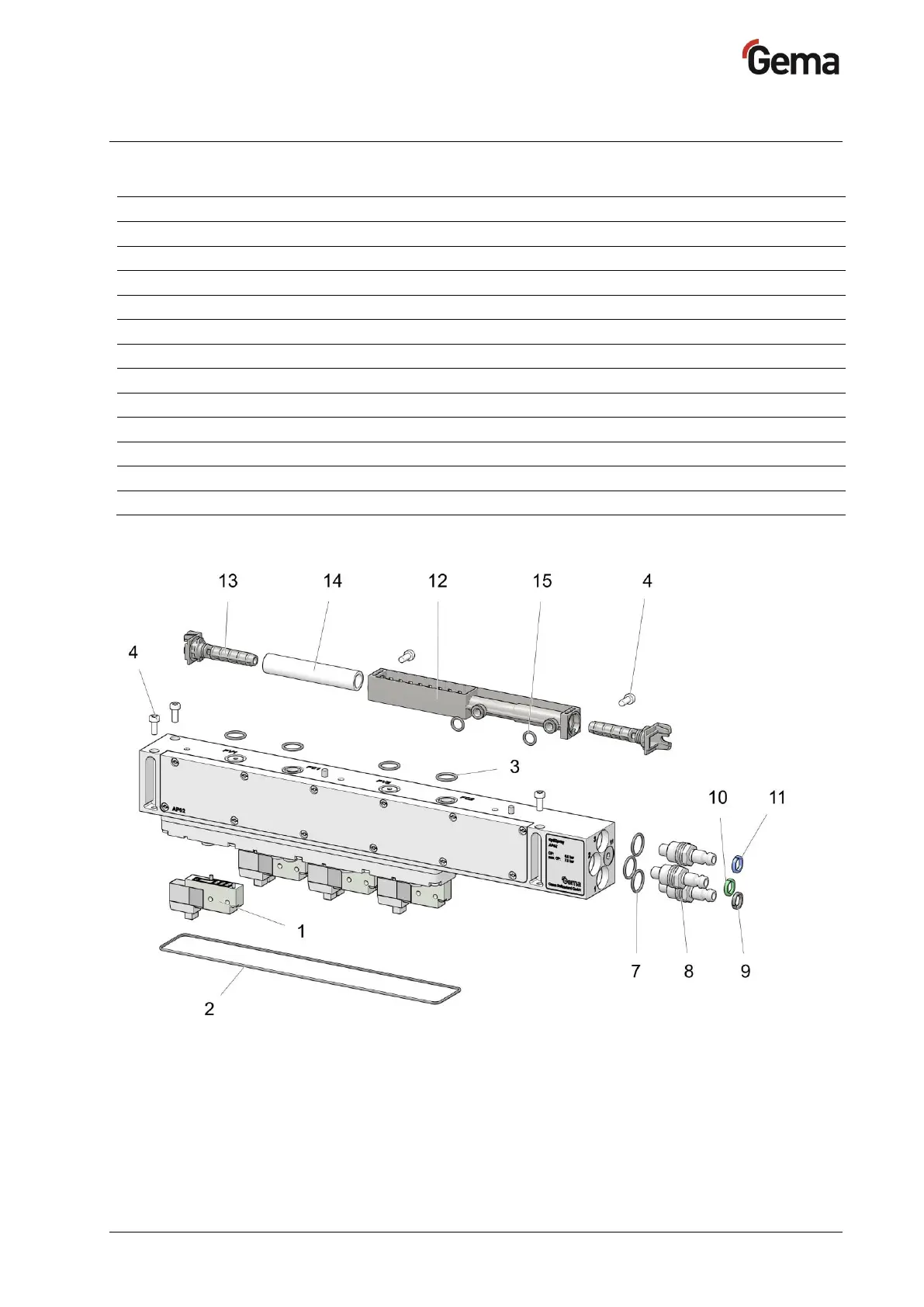

Fig. 13:
