Gema OptiSpray AP02 - Pump Disassembly

Rev. 00 12/23
OptiSpray AP02 Maintenance / Repairs • 35

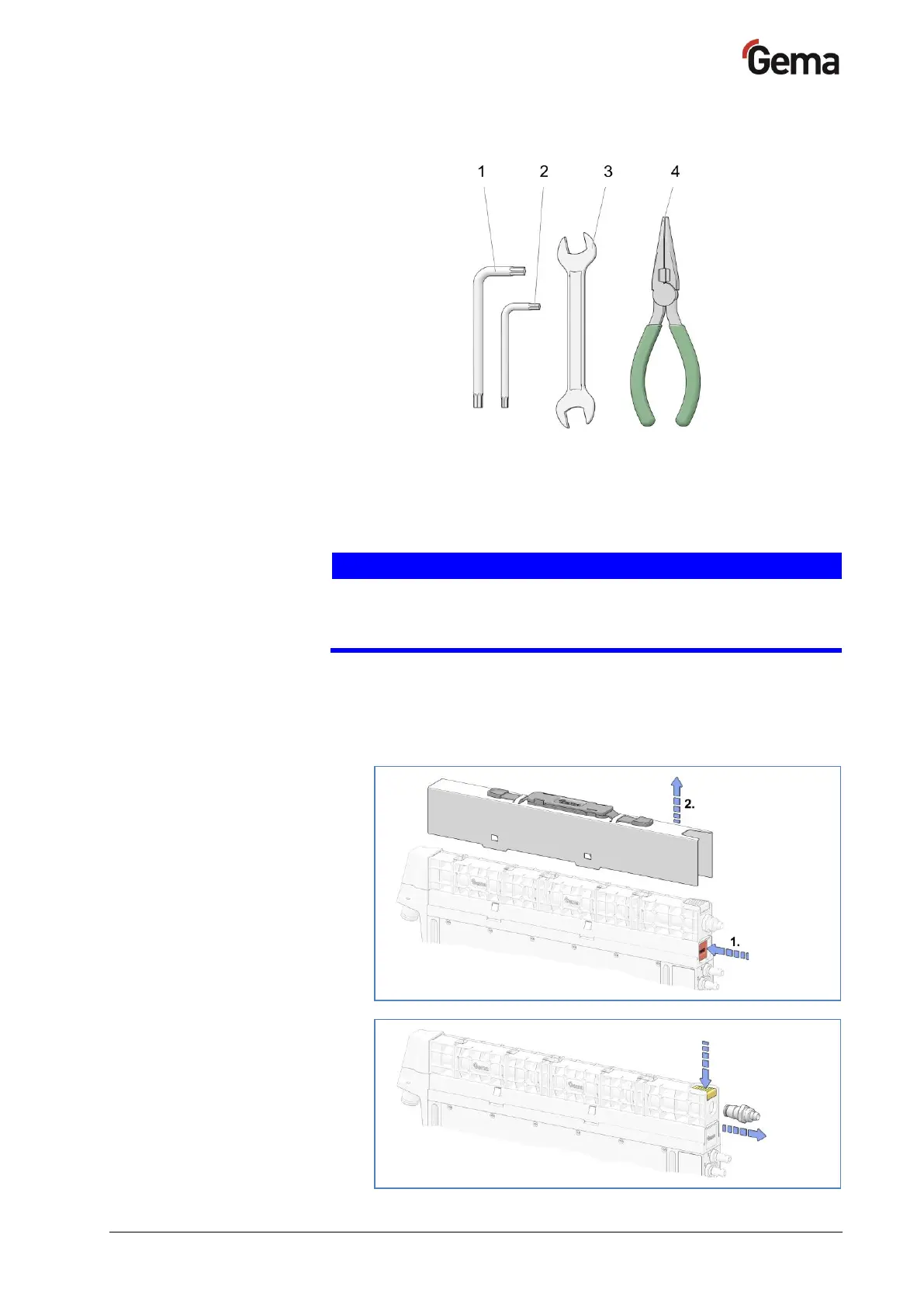

Required tools
Fig. 10
1 Torx L-key size 20
2 Torx L-key size 10
3 Open-ended wrench
14 mm
4 Needle nose pliers
ATTENTION
Incorrectly assembled parts may cause malfunctions or defects
► Observe the tightening torques when assembling!
► Use the appropriate torque wrench!
Pump disassembly
1.
Remove hoses and cables
2.
3.
