Document Reader AT9000 MK2 User Guide Maintenance
Page 24 of 33

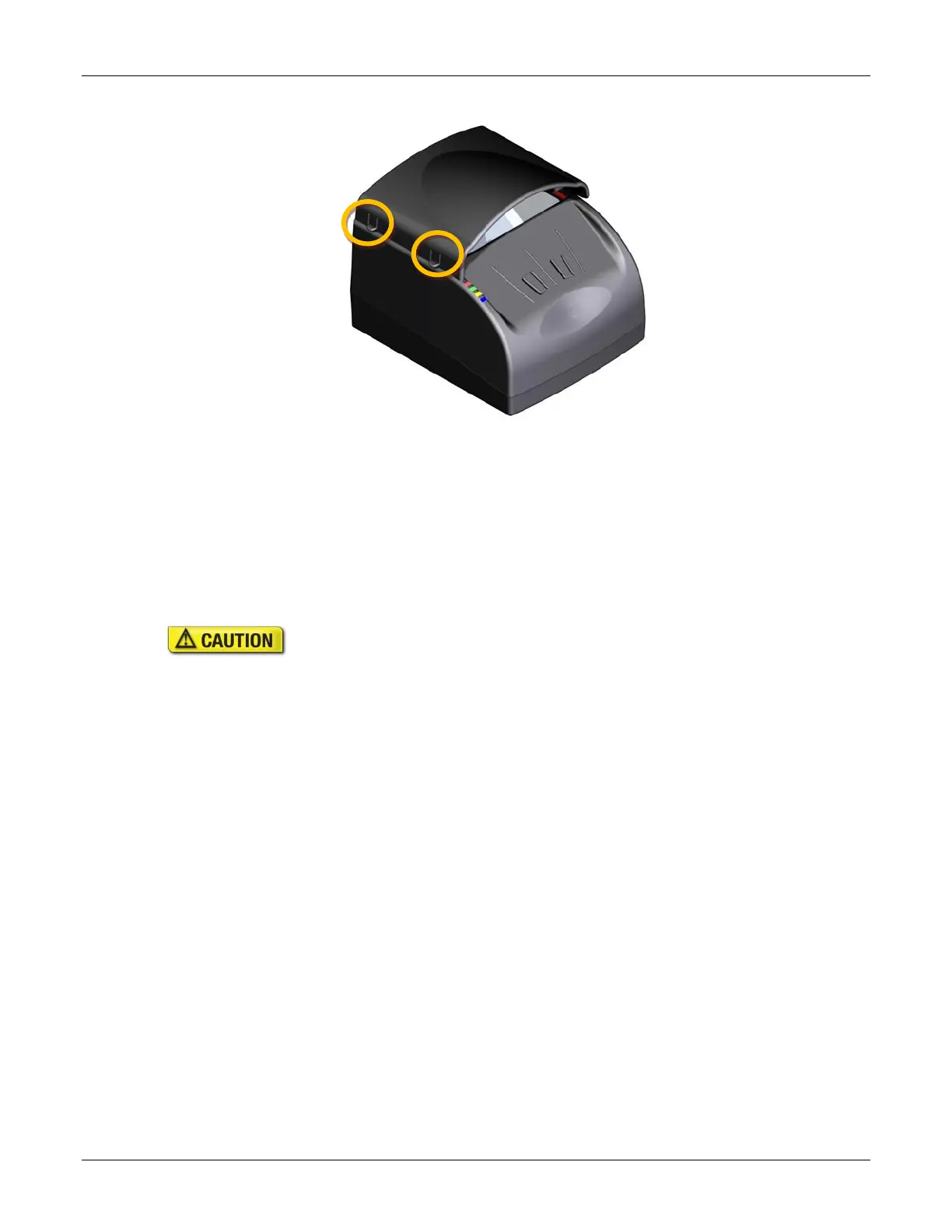

3. To re-attach the document hood, ensure that the pin on the right of the hood is correctly seated
before pressing down on the tabs on the left of the hood.
Replacing the document glass
You can replace the glass in the document window if it becomes damaged. See page 32 for information
about ordering a replacement.
Only an authorized, trained technician should perform this procedure. Failure to correctly
follow the instructions could result in injury or cause damage to the equipment.
To replace the document window glass:
1. Remove document hood, as described on page 23.
2. If an optional module is attached to the back of the reader:
I. Remove the two screws securing the module.
II. Remove the center screw securing the document guide and clip assembly.
If there is no optional module, remove the three retaining screws located on the back of the panel.
3. Slide off the document guide and document clip assembly.
