NAPCO Security Systems
X
GEM-P3200 Programming Instructions
WI818D 8/00
!
Page 23
Exit/Entry Zones
(Appears for New Panel Only)
Directly enter the zone numbers which are to be used as Exit/Entry zones.
Valid entries are from 01 to 48. Directly enter each zone number, including
leading zeros. Use number buttons
1 through 9. NOTE: Press the
0
button for a zero. Press
J
to save and then repeat for any additional
zone(s). Press NEXT (
E) button to proceed.
NOTE:
Exit/Entry Zones will have an entry delay of 30 seconds and an exit
delay of 60 seconds. Chime will automatically be programmed for all E/E
zones. If you are programming a 2 Area system, enter all of the zones
required for Areas 1 & 2.
Interior Zones (Appears for New Panel Only)
Directly enter the zone numbers which are to be used as Interior Zones. Valid
entries are from 01 to 48 Directly enter each zone number, including leading
zeros. Use number buttons
1 through 9. NOTE: Press the 0
button for a zero. Press Jto save and then repeat for any additional zone(s).
Press NEXT (
E
) button to proceed.
NOTE: All Interior zones will also be automatically programmed as “Exit/
Entry Follower” zones. If you are programming a 2 Area system, enter all the
zones required for Areas 1 & 2.
Number of Keypads in Area 1
Directly enter the total number of Keypads to be installed in Area 1. Valid
entries are from 01 to 07. Directly enter the number of keypads, including
leading zeros. Use number buttons
1
through
9
.
NOTE:
Press the
0 button for a zero. Press
J
to save . Press NEXT (E) button to
proceed.
Number of Keypads in Area 2
Directly enter the total number of Keypads to be installed in Area 2. Valid
entries are from 01 to 07. Directly enter the number of keypads, including
leading zeros. Use number buttons
1
through
9
. NOTE: Press the
0 button for a zero. Press
J
to save . Press NEXT (E) button to
proceed.
Central Station Receiver 1 Telephone Number
Using number buttons, enter telephone number of up to 16 digits including
prefix letters, if necessary, for receiver 1. Use number buttons
1 through
9 for digits 1–9; press the G 0 button for a zero and G
1
through G 5 for letters B–F, respectively. NOTE: Pre-Dial
Delay = “D”; Dial-Tone Detection = “E”. Pressing the
0 button will
produce a blank space (•). Press
Jto save. Press NEXT (
E
) to proceed.
NOTE:
Central Station Receiver 2 and 3 Telephone Numbers can only be
entered in Direct Address Programming. See CS Receiver Options.
(Direct Entry)
07
INTERIOR
BYPASS FIRE/TBL SYS TBL CHIME
INTERIOR
BYPASS SYS TBL CHIME
FIRE/TBL
(Direct Entry)
08
INTERIOR
BYPASS FIRE/TBL SYS TBL CHIME
INTERIOR
BYPASS SYS TBL CHIME
FIRE/TBL
(Direct Entry)
09
INTERIOR
BYPASS FIRE/TBL SYS TBL CHIME
INTERIOR
BYPASS SYS TBL CHIME
FIRE/TBL

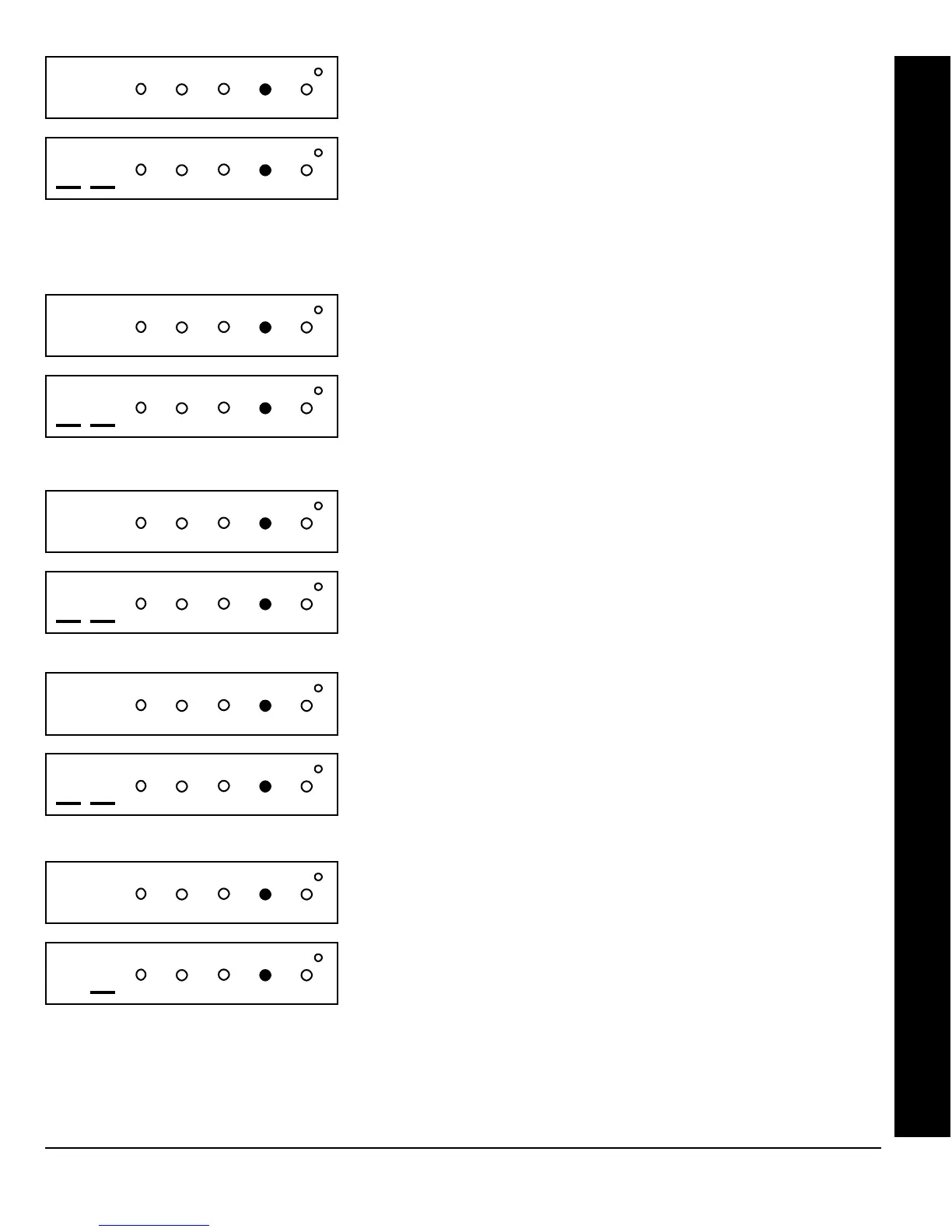

GEM-RP3DGTL Keypad: Exit/Entry Zones, Interior Zones, Keypads per Area & CS Tel. No.
(Direct Entry)
10
INTERIOR
BYPASS FIRE/TBL SYS TBL CHIME
INTERIOR
BYPASS SYS TBL CHIME
FIRE/TBL
(Direct Entry)
11
INTERIOR
BYPASS FIRE/TBL SYS TBL CHIME
INTERIOR
BYPASS SYS TBL CHIME
FIRE/TBL
To Next Page
