geminox THR Series - 2 - PIPE CONNECTION diametERS; 3 - DIMENSIONS


7(&+1,&$/63(&,),&$7,216
  3,3(&211(&7,21',$0(7(56
  ',0(16,216
Combustion products: ∅ 80 (item. 1, fig. 1)
Gas inlet: 1" (item. 2, fig. 1)
Heating flow: 1" (item. 3, fig. 1)
Heating return: 1" (item. 4, fig. 1)
Condensate drain: ∅ 25 PVC (item. 5, fig. 1)
Pressure relief valve: ∅ 27 (item. 6, fig. 1)
Possibility of connection for a second heating circuit: 1" (item. 7, fig. 1)

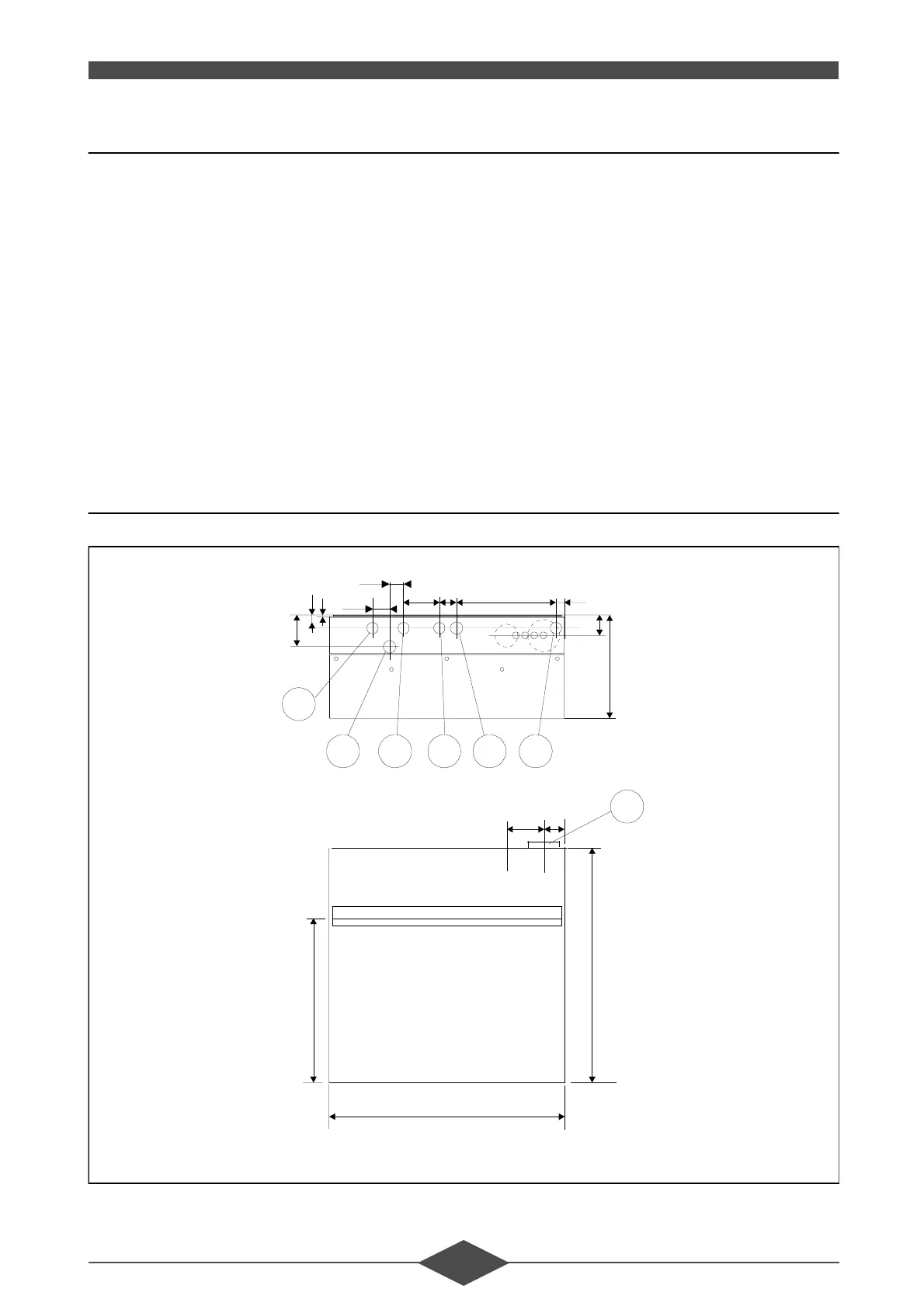

Bottom view
Rear view
2
75
63
4
43
6
55,5
45,5
117
56 323,5
27
66
361
102
1
765
120 67,5
530
760
)LJ
