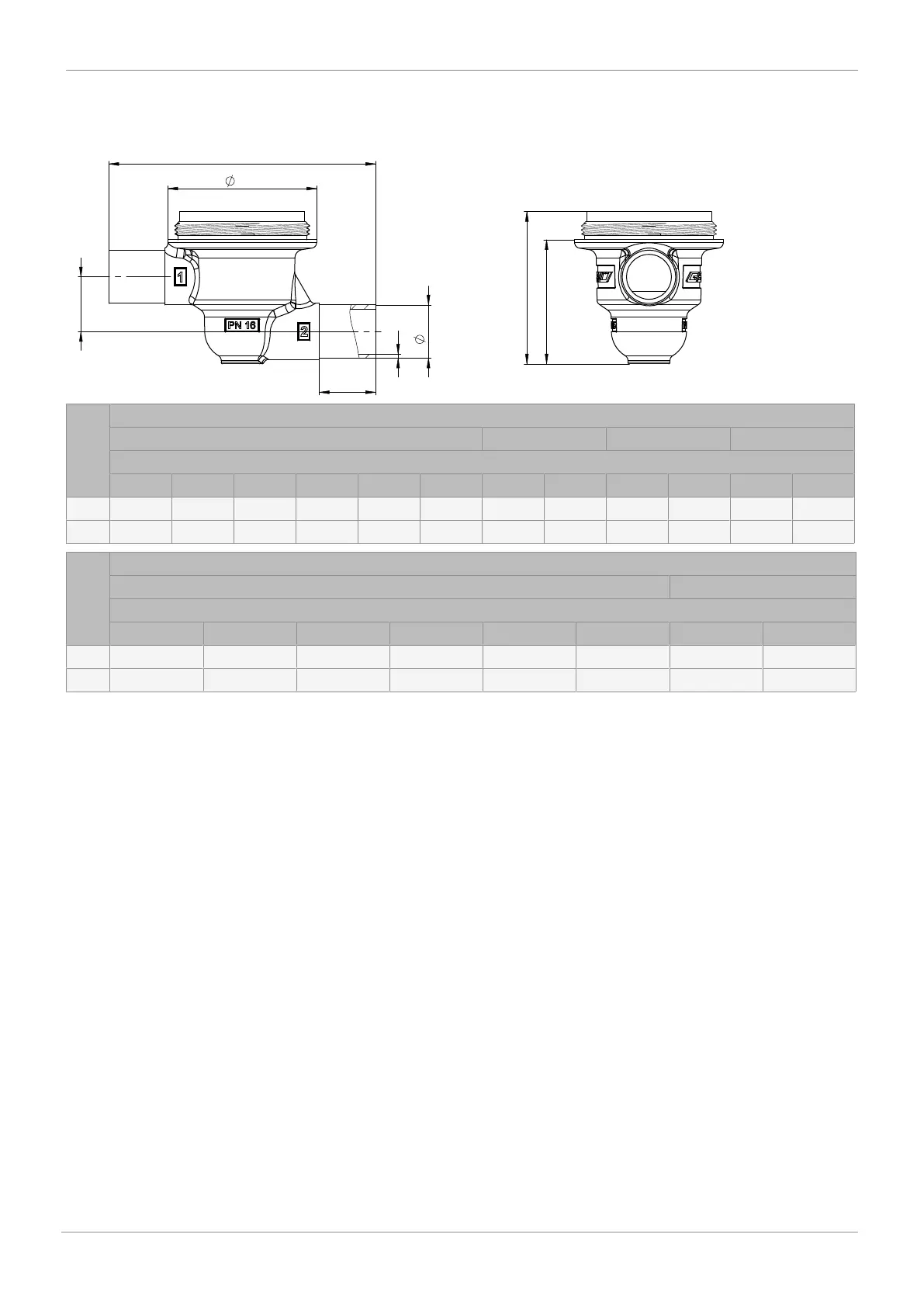

7.2 Body dimensions
7.2.1 Spigot
L
H1
s
c
H3
H2
B
d
DN Connection types code
1)
0 16 17
Material code C3
2)
L ØB c H1 H2 H3 ød s ød s ød s
10
95.0 53.0 20.0 21.5 41.2 51.2 - - - - 13.0 1.5
15
95.0 53.0 20.0 19.5 44.2 54.2 18.0 1.5 18.0 1.0 19.0 1.5
DN Connection types code
1)
59
Material code C3
2)
L ØB c H1 H2 H3 ød s
15
95.0 53.0 20.0 21.5 41.2 51.2 12.70 1.65
20
95.0 53.0 20.0 19.5 44.2 54.2 19.05 1.65
Dimensions in mm
1)
Connection type
Code 0: Spigot DIN
Code 16: Spigot EN 10357 series B, formerly DIN 11850 series 1
Code 17: Spigot EN 10357 series A (formerly DIN 11850 series 2) / DIN 11866 series A
Code 59: Spigot ASME BPE / DIN 11866 series C
2)
Valve body material
Code C3: 1.4435, investment casting
