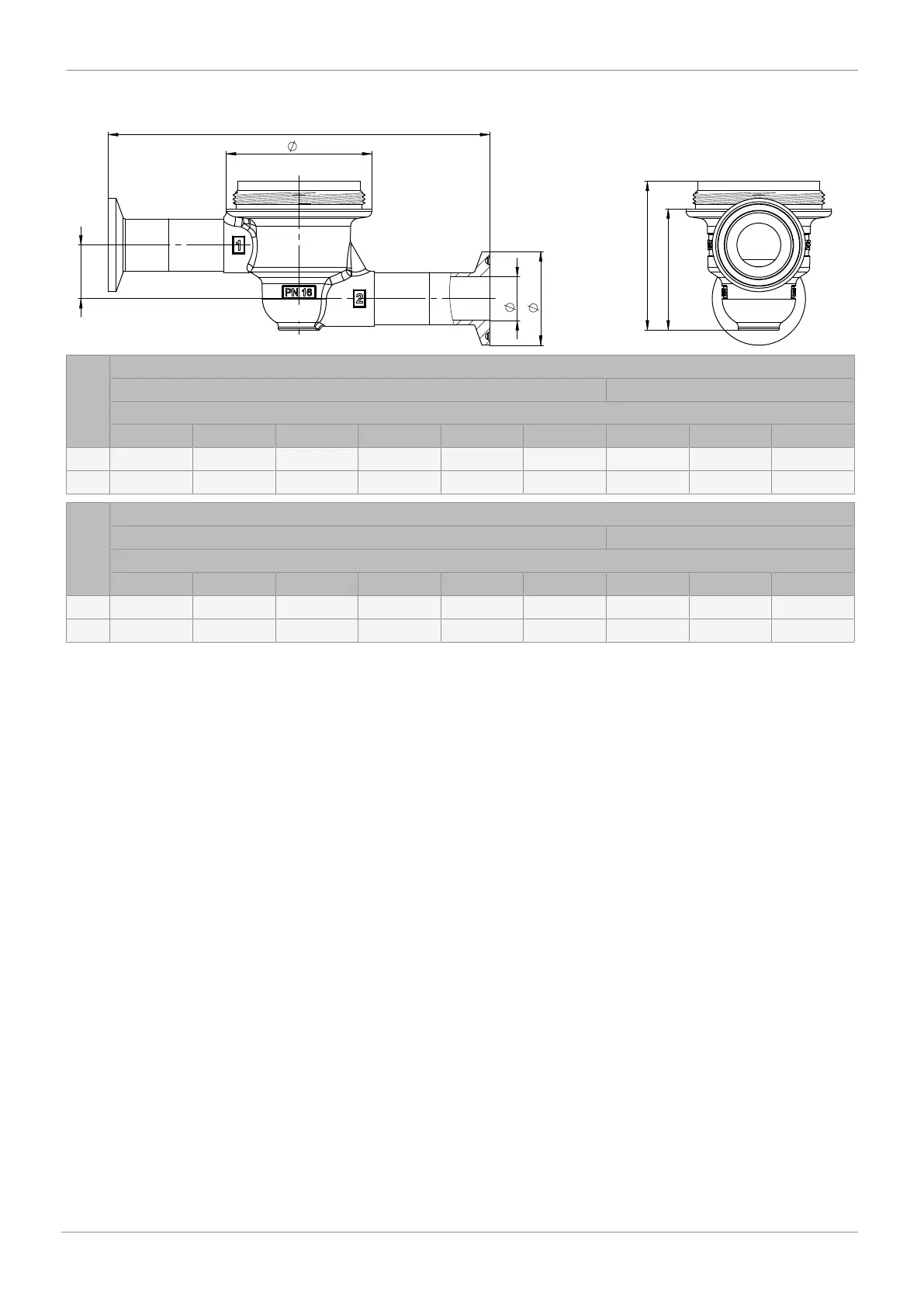

7.2.2 Clamp
H1
B
L
d1
d3
H2
H3
DN Connection types code
1)
86
Material code C3
2)
L ØB c H1 H2 H3 Ød1 Ød3 s
10
121.0 53.0 20.0 21.5 41.2 51.2 10.0 34.0 1.5
15
121.0 53.0 20.0 19.5 44.2 54.2 16.0 34.0 1.5
DN Connection types code
1)
88
Material code C3
2)
L ØB c H1 H2 H3 Ød1 Ød3 s
15
121.0 53.0 20.0 21.5 41.2 51.2 9.40 25.0 1.65
20
121.0 53.0 20.0 19.5 44.2 54.2 15.75 25.0 1.65
Dimensions in mm
1)
Connection type
Code 86: Clamp DIN 32676 series A
Code 88: Clamp ASME BPE
2)
Valve body material
Code C3: 1.4435, investment casting
GEMÜ F40www.gemu-group.com
13 / 24
