User and Service Manual
Doc # M010-004WWE July 2005
Gendex DenOptix® QST
DenOptix QST laser scanner

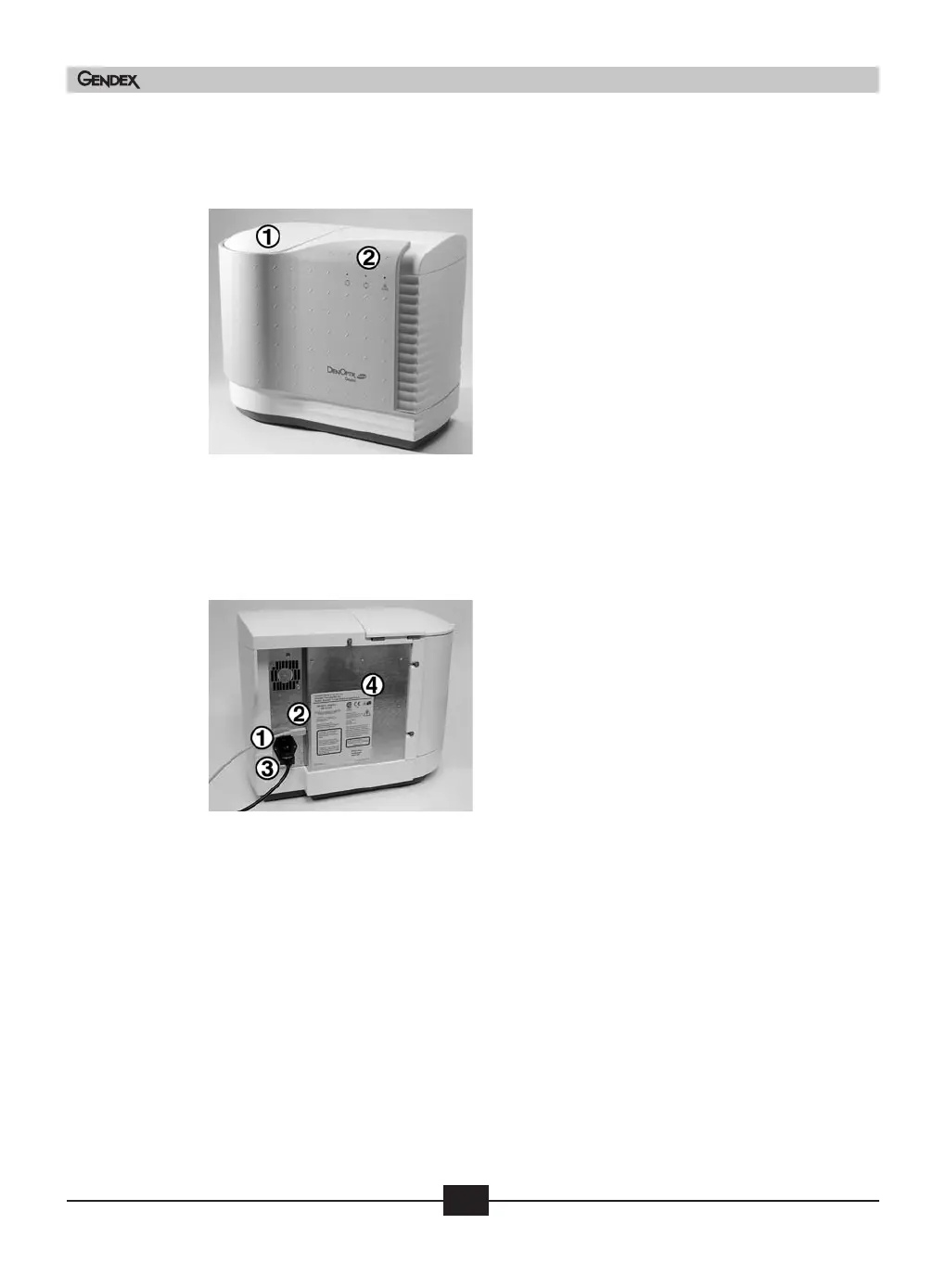

Figure 4-1 Scanner front view
1) Carousel well and lid. The lid has a locking mech-
anism that engages during scanning and loss of
power (see Section 7.3 or handling procedure).
The carousel, with imaging plates attached, is
inserted into the carousel well for scanning. The
carousel lid must be in the closed position prior to
scanning. The scanner will not operate with the lid
open.
2) LED indicator lights with graphic symbols.
The lights show the current status of the system.
Green — Ready to scan
Yellow Blinking – Scanning
Red — Error
Figure 4-2 Scanner rear view
1) DenOptix QST scanner power entry module with
switch and fuses
2) USB 2.0 connector. A USB 2.0 cable (provided)
connects the DenOptix QST scanner to the CPU’s
USB 2.0 port.
3) Power cord socket. The power cord (provided) will
be connected from this point to a grounded main
outlet.
4) Scanner label
