Genelec 1032C User Manual

3
Connect the MAINS INPUT to the mains supply. These
products support any mains voltage globally (100-240 VAC,
50-60 Hz) so they can be plugged in anywhere. If the mains
power is provided with a generator, inverter or certain lower-
quality UPS devices, we recommend filtering of the mains
power voltage harmonics and taking care that the voltage
supply is stable.
The ANALOG IN connector is used for analog audio signals. The
maximum input level is +25 dBu. The 1032C produces 100 dB
SPL sound level at 1 meter in free space for an analogue input
signal of -6 dBu.
The DIGITAL IN AES/EBU female XLR connector is for AES/
EBU formatted digital audio input signals. This input is selected
automatically when a valid digital audio signal is present. Analog
input is selected when the AES/EBU signal input is disconnected.
The AES/EBU input supports two channels in a single cable).
When the digital source device controls the digital output level, it
may be advantageous to lower the level on the monitor’s controls,
which will enable the use of a higher digital signal level with more
digital resolution. With digital inputs the audio is referenced to
0 dBFS (dB relative to the digital full scale, the largest level that
can be represented in the AES/EBU signal). The 1032C produces
100 dB SPL sound level at 1 meter in free space for a digital
input signal of –30 dBFS. The DIGITAL OUT male XLR carries an
unaltered copy of the digital signal fed into the digital in connector.
This enables daisy-chaining up to four monitors.
Figure 2. Connectors and controls on the back panel of a
1032C.
SMART ACTIVE MONITOR
ANALOG
IN
DIGITALTHRU
AES/EBU
DIGITALIN
AES/EBU
GLM
NETWORK
MAINSINPUT
50 /60Hz 200W
100 - 240 V~
WARNING:ELECTRICSHOCK HAZARD.DO NOTOPEN.DO NOT SUBJECT TO
WATERORMOISTURE. NOUSER SERVICEABLEPARTSINSIDE. REFER
SERVICINGTO QUALIFIED PERSONNEL. USE EARTHED MAINSCONNECTION
ONLY.
AVERTISSEMENTRISQUE DE CHOCÉLECTRIQUE.NE PASOUVRIR.NE PAS
EXPOSERÀL'EAU OUL'HUMIDITÉ. AUCUN COMPOSANT ÀL'INTÉRIEUR
REMPLAÇABLEPARL'UTILISAT EUR.ADRESSER TOUTE RÉPARATIONÀUN
PERSONNELQUALIFIÉ. CET APPAREILDOITÊTRE RACCORDÉÀLATERRE.
LAITEONLIITETTÄVÄ SUOJAKOSKETTIMILLAVARUSTETTUUN PISTORASIAAN.
APPARATETMÅ TILKOPLESJORDETSTIKKONTAKT.
APPARATEN SKALLANSLUTASTILLJORDATUTTAG.
ThisdevicecomplieswithFCC Part 15andCanadianICES-003radiofrequency
ClassBemissionrequirements. Refertooperatingmanualforfullinformation.
292-1332T-6
MADE IN FINLAND
1032C
MAGNETICALLYSHIELDED
SERIAL NUMBER
www.genelec.com
RESETTO FACTORY
SETTINGS: PUSH
BUTTONFOR10SEC
SENSITIVITY
IN dBuFOR
100 dBSPL (1 m)
-2
+4
+2
-4
-6
+6
dBu
0
20 160
+2
-2
-4
dB
-6
0
4k 20k
BASS
TILT
800
BASS
ROLL-OFF
DESKTOP
ALLOFF
TREBLE
TILT
Frequency (Hz)
(dB)(dB)
ON
OFF
BASS ROLL-OFF
BASS TILT
-2 -2
TREBLETILT
+2
DESKTOP160Hz -4
LEDDISABLE
A
-20dB
B
STORED
-10dB
LEVEL
DIGITAL
ISS
-4 -4 -4
CONNECTOR
PANEL
POWER
SWITCH
SENSITIVITY
ADJUSTMENT
TONE
CONTROLS
MICROPHONE
PLACED IN
THE LISTENING
POSITION
292-0063
GLM
TERMINATOR
COMPUTER
RUNNING
GLMSOFTWARE
USB CABLE
GLM ADAPTER
GLM NETWORK
CABLE
MONITORS
SUBWOOFER
ON ON ON

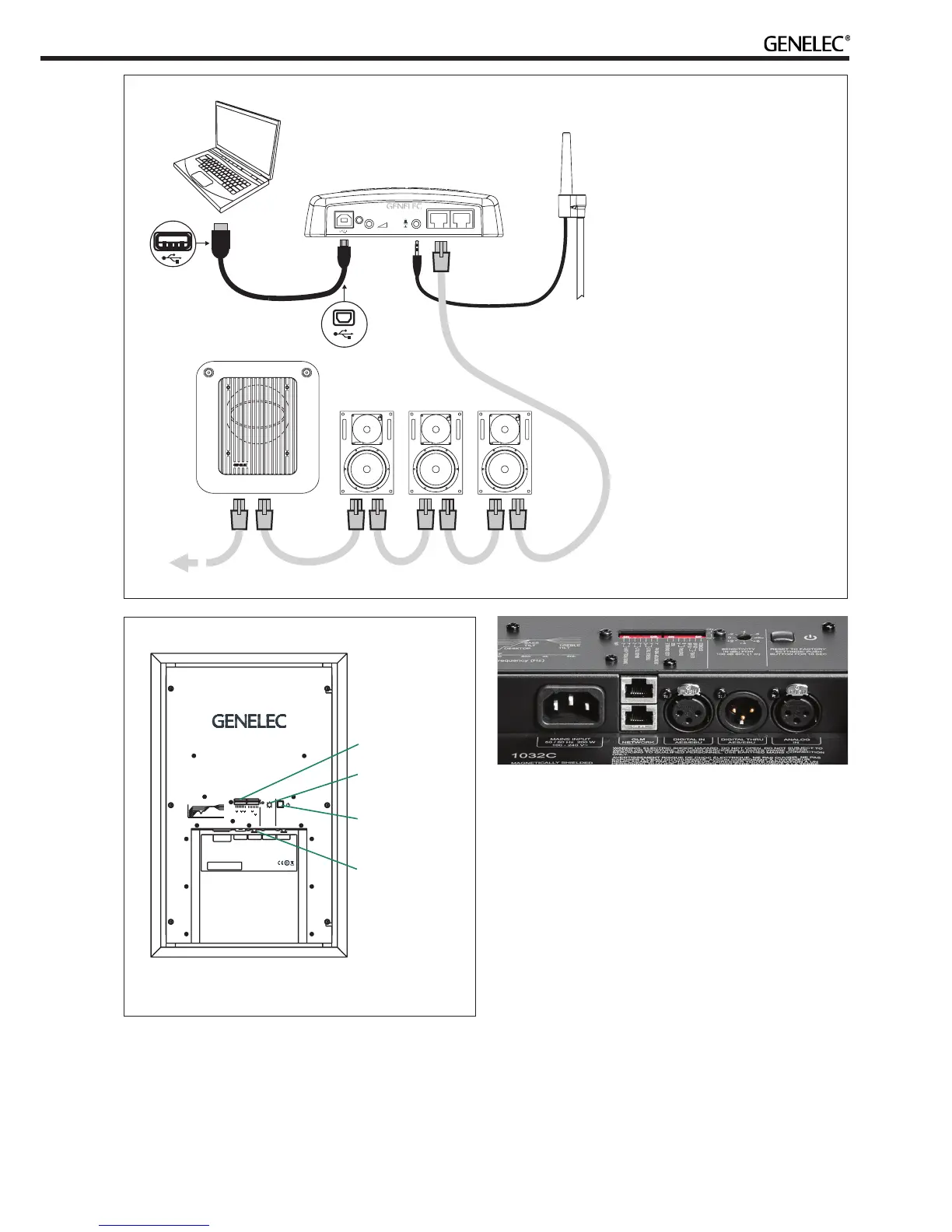

Figure 1. GLM control network cabling
Figure 3. Connector panel detail.
