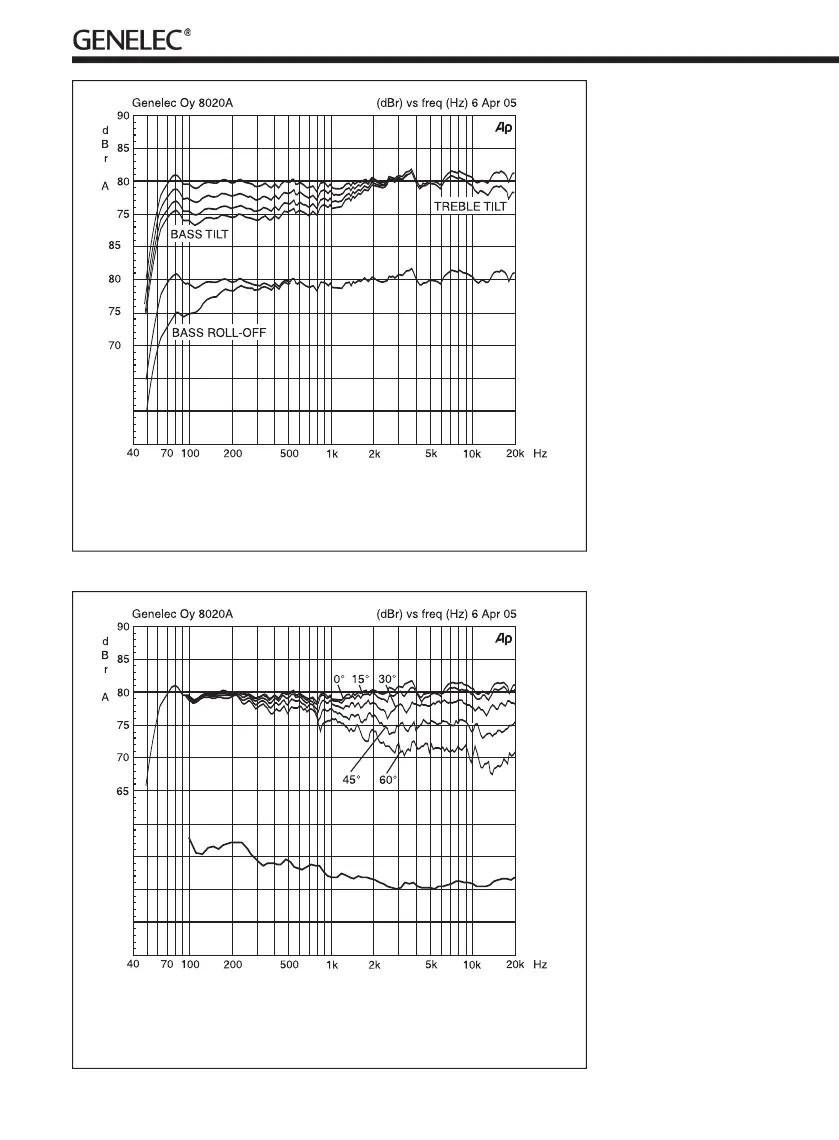

Figure 4. The curves above show the effect of the “Bass Tilt”, “Treble
Tilt” and “Bass Roll-Off” controls on the free field response of the
8020A
Figure 5. The upper curve group shows the horizontal directivity
characteristics of the 8020A measured at 1 m. The lower curve
shows the system's power response.
