Generac Portable Products 1900 PSIPressureWasher

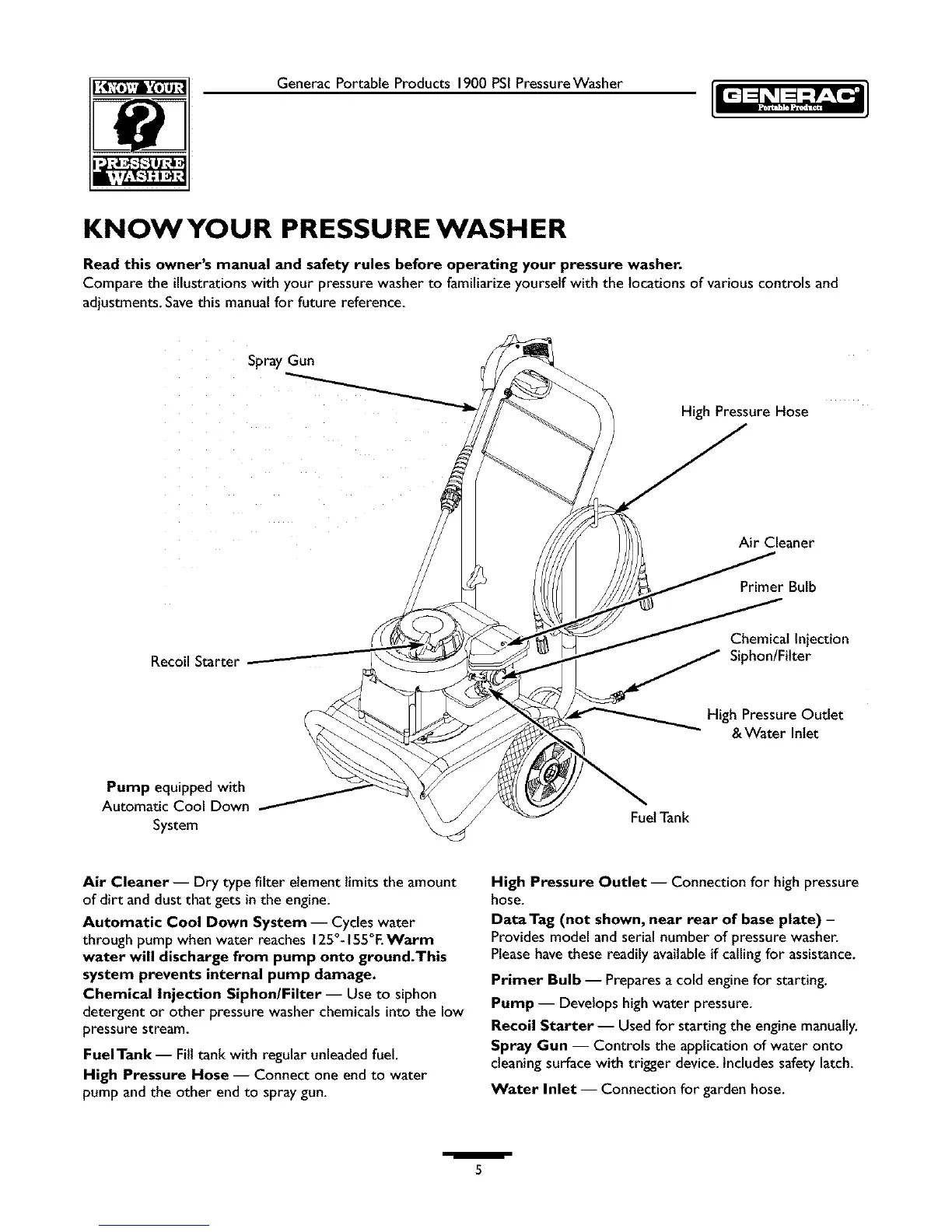

KNOWYOUR PRESSURE WASHER
Read this owner's manual and safety rules before operating your pressure washer.
Compare the illustrationswith your pressure washer to familiarize yourself with the locations of various controls and
adjustments. Savethis manualfor future reference.
Spray Gun
High Pressure Hose
Air Cleaner
Primer Bulb
Recoil Starter
Chemical Injection
Siphon/Filter
High PressureOutlet
& Water Inlet
Pump equipped with
Automatic Cool Down
System
FuelTank
Air Cleaner-- Dry type filter element limitsthe amount
of dirt and dust that gets inthe engine.
Automatic Cool Down System -- Cycles water
through pump when water reaches 125°-155°EWarm
water will discharge from pump onto ground.This
system prevents internal pump damage.
Chemical Injection Siphon/Filter -- Use to siphon
detergent or other pressure washer chemicals into the low
pressure stream.
FuelTank- Filltank with regular unleaded fuel.
High Pressure Hose -- Connect one end to water
pump and the other end to spray gun.
High Pressure Outlet -- Connection for high pressure
hose.
DataTag (not shown, near rear of base plate) -
Provides model and serial number of pressure washer.
Pleasehave these readily available if calling for assistance.
Primer Bulb -- Prepares a cold enginefor starting.
Pump -- Develops high water pressure.
Recoil Starter -- Used for starting the engine manually.
Spray Gun -- Controls the application of water onto
cleaningsurface with trigger device. Includessafety latch.
Water Inlet -- Connection for garden hose.
/
5
