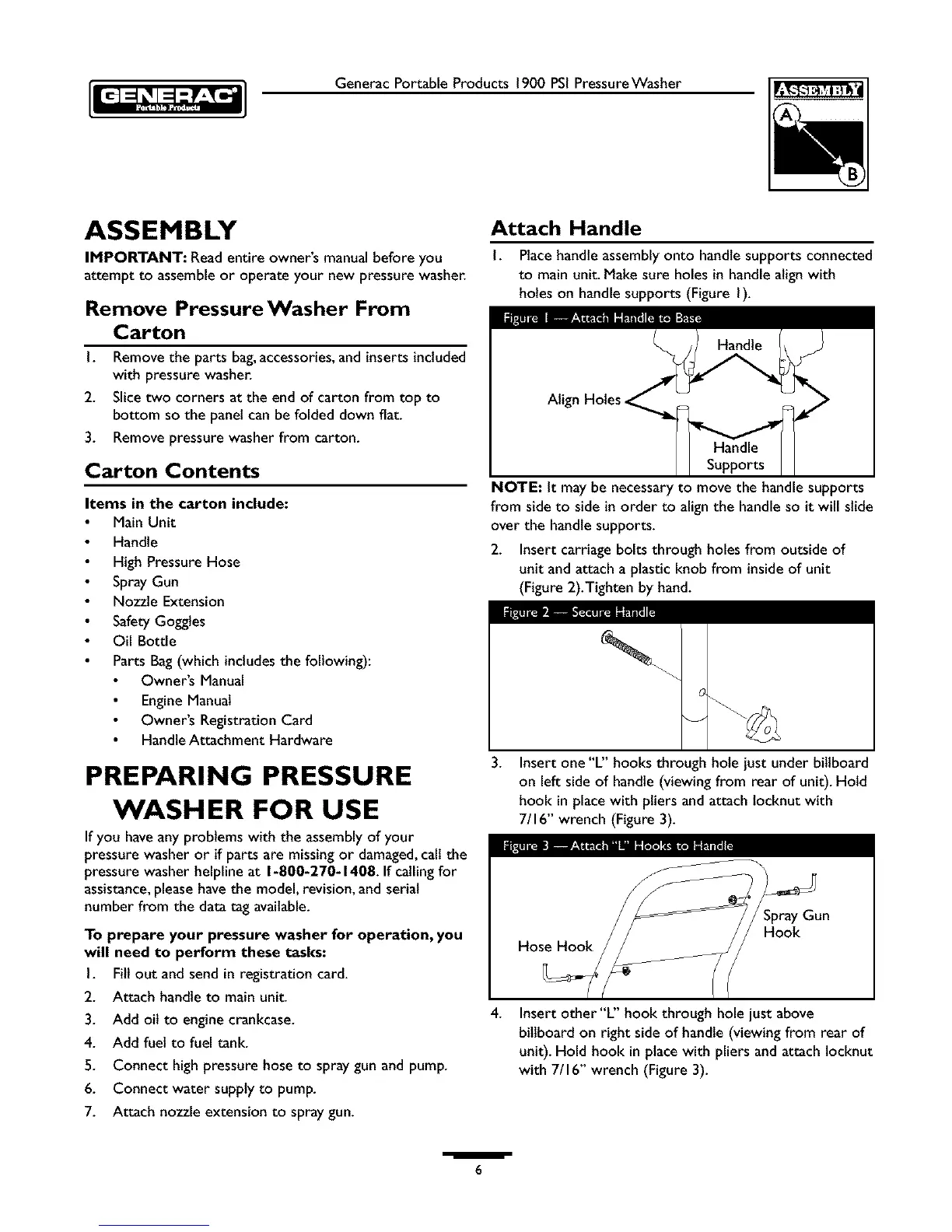

GeneracPortableProducts1900PSIPressureWasher
ASSEMBLY
IMPORTANT: Readentire owner's manualbefore you
attempt to assembleor operate your new pressure washer.
Remove Pressure Washer From
Carton
I. Removethe parts bag,accessories,and inserts included
with pressure washer.
2. Slicetwo corners at the end of carton from top to
bottom so the panel can be folded down fiat.
3. Removepressure washer from carton.
Carton Contents
Items in the carton include:
Main Unit
Handle
High Pressure Hose
SprayGun
Nozzle Extension
SafetyGoggles
Oil Bottle
Parts Bag(which includesthe following):
Owner's Manual
EngineManual
Owner's Registration Card
HandleAttachment Hardware
PREPARING PRESSURE
WASHER FOR USE
Ifyou haveany problems with the assemblyof your
pressure washer or if parts are missing or damaged,call the
pressure washer helpline at 1-800-270-1408. If callingfor
assistance,pleasehave the model, revision, and serial
number from the data tag available.
To prepare your pressure washer for operation, you
will need to perform these tasks:
I. Fillout and send in registration card.
2. Attach handleto main unit.
3. Add oil to engine crankcase.
4. Add fuel to fuel tank.
5. Connect high pressure hose to spray gun and pump.
6. Connect water supply to pump.
7. Attach nozzle extension to spray gun.
Attach Handle
]. Placehandleassemblyonto handlesupportsconnected
to main unit.Make sure holes in handle align with
holes on handle supports (Figure I).
Alig
Handle
Supports
NOTE: It may be necessaryto move the handle supports
from side to side in order to alignthe handle so it will slide
over the handle supports.
2. Insert carriage bolts through holes from outside of
unit and attach a plastic knob from insideof unit
(Figure 2).Tighten by hand.
.
Insert one "L" hooksthrough hole just under billboard
on left side of handle (viewing from rear of unit). Hold
hook in place with pliers and attach locknut with
7/16" wrench (Figure 3).
;prayGun
Hook
4.
Insert other"L" hook through hole just above
billboard on right side of handle (viewing from rear of
unit). Hold hook in place with pliers and attach locknut
with 7/16" wrench (Figure 3).
/
6
