Owner’s Manual for Stationary Industrial Generators 5
Section 2 General Information
2.1 — Unit Identification

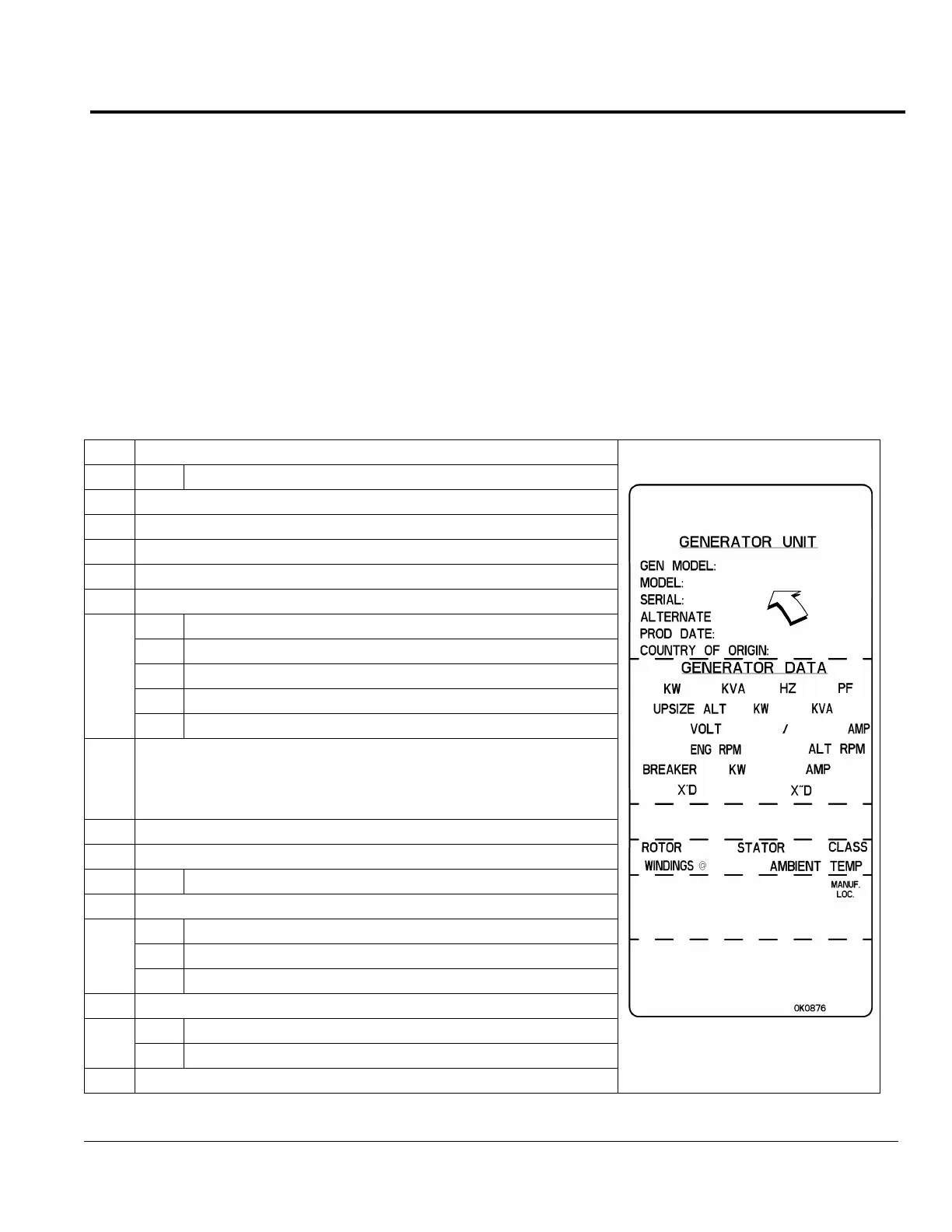

2.1.1— Data Label
Each generator set has a DATA LABEL containing important information about the generator. The data label lists the
unit serial number, rated voltage, amps, wattage capacity, etc.
NOTE: The figure below is a generic representation only. For actual information on your particular model, refer
to the data label(s) affixed to your unit.
2.1.2— Model Identification Code
The model identification code gives important information about the generator set. For example, if the code is:
SG 0100 A G03 6.8 N 23 H B Y Y 3
Then the generator would have the attributes shown in bold below:
SG Stationary gaseous generator.
SD Stationary diesel generator.
0100 Rated output is 100,000 watts (100kW).
A Voltage code (see Subsection 2.1.3).
G03 Indicates engine MFG (for manufacturer’s use).
6.8 Engine is 6.8 liter.
N Natural Gas fuel system.
L LP Liquid Withdrawal fuel system.
V LP Vapor Withdrawal fuel system.
R Dual fuel system with LP liquid as secondary.
P Dual fuel system with LP Vapor as secondary.
D Diesel fuel system.
23
2,300 Engine rpm rating (15 = 1500 rpm, 18 = 1,800 rpm, etc.)
NOTE: Engines operating above 1,500 or 1,800 rpm use a gearbox
to reduce the engine rpm to the desired alternator rotor rpm of 1,500
rpm (50 Hz operation) or 1,800 rpm (60 Hz operation).
H Unit has optional “H” control panel.
B Brushless excitation.
P Permanent magnet excitation.
Y Standard enclosure equipped.
N No enclosure — suitable for indoor installation.
S Level 1 sound attenuation.
L Level 2 sound attenuation.
Y Exhaust muffler mounted.
N Exhaust muffler not provided.
L Exhaust muffler shipped loose with unit.
3 Emission designation (for factory use).
SG0100AG036.8N23HBYY3
Sample
