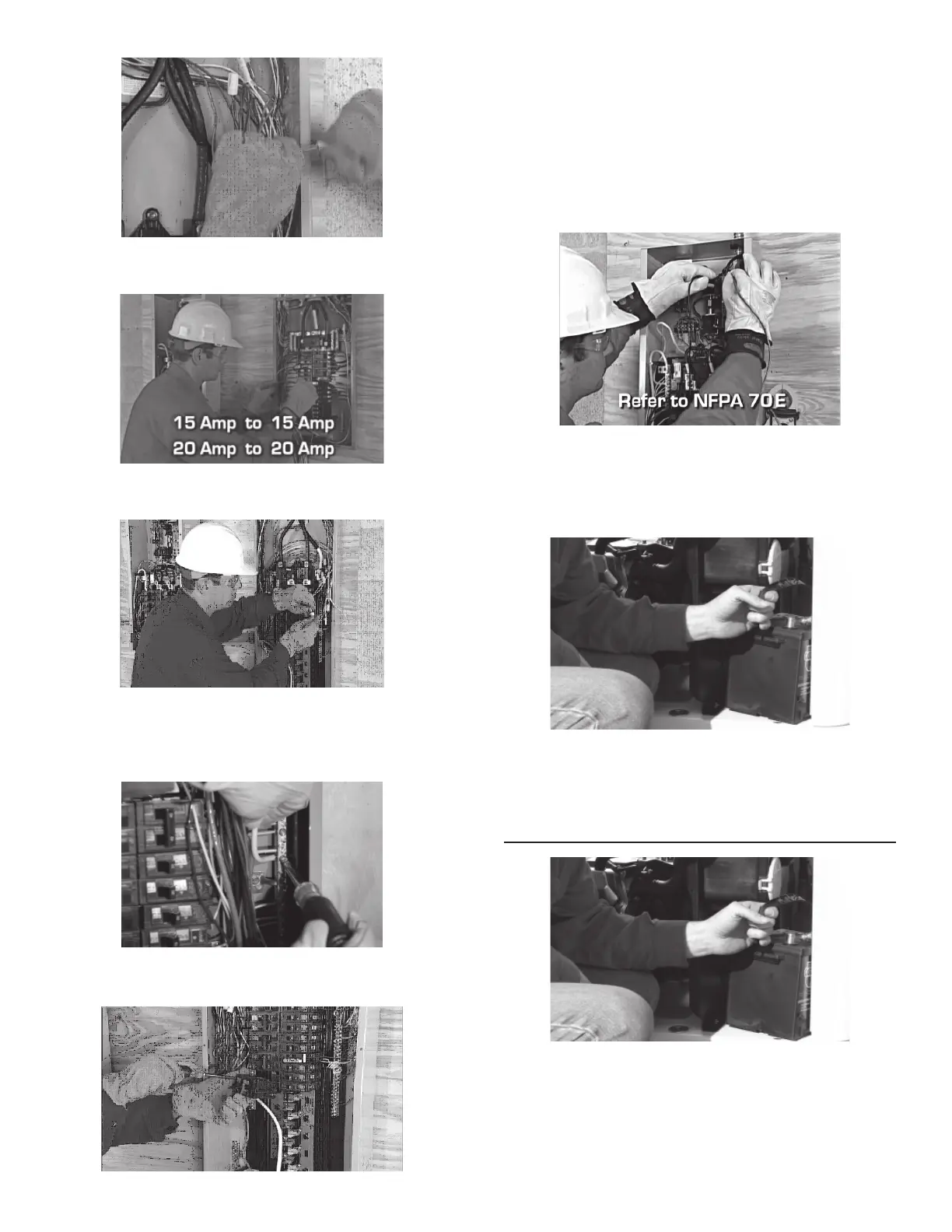

7. Choose a circuit to be backed up and remove the power lead
from the breaker.
8. Using UL Listed wire nuts, reconnect the power lead to a
matching breaker in the transfer switch.
9. Make sure each circuit moved is protected by the same
size breaker in the transfer switch. 15 Amp circuits must be
connected to 15 Amp breakers and 20 Amp circuits to 20
Amp breakers.
10. Connect the provided large neutral to the neutral bar in the
distribution panel.
11. Install a 2-pole breaker in the distribution panel to protect
the transfer switch. The required amp rating of the breaker
depends on which transfer switch is used. If installing an
8-circuit, pre-wired load center switch, the breaker cannot
exceed 40 Amps. For all other pre-wired load center switches
the breaker cannot exceed 70 Amps. This breaker must be
compatible with the existing electrical distribution panel.
Install the breaker in two adjacent empty slots (one above the
other) in the main panel.
12. When all priority circuits have been moved to the transfer
switch, close the main breaker to restore utility power and
make sure utility voltage at the transfer switch is correct.
Refer to NFPA 70-E for the safety equipment required when
working inside a live transfer switch.
13. Before purchasing a battery for the generator, refer to
the generator Owner’s Manual for a list of recommended
batteries. Follow all of the procedures and safety precautions
in the Owner’s Manual when installing the battery.
BATTERY INSTALLATION
1. Before purchasing a battery for the generator, refer to the
Owner’s Manual for the recommended battery.
• 8 kW: Group 26R, 12 Volt, 350cca minimum
• 10-20 kW: Group 26R, 12 Volt, 525cca minimum
