7000EXL Extended Life Generator
23

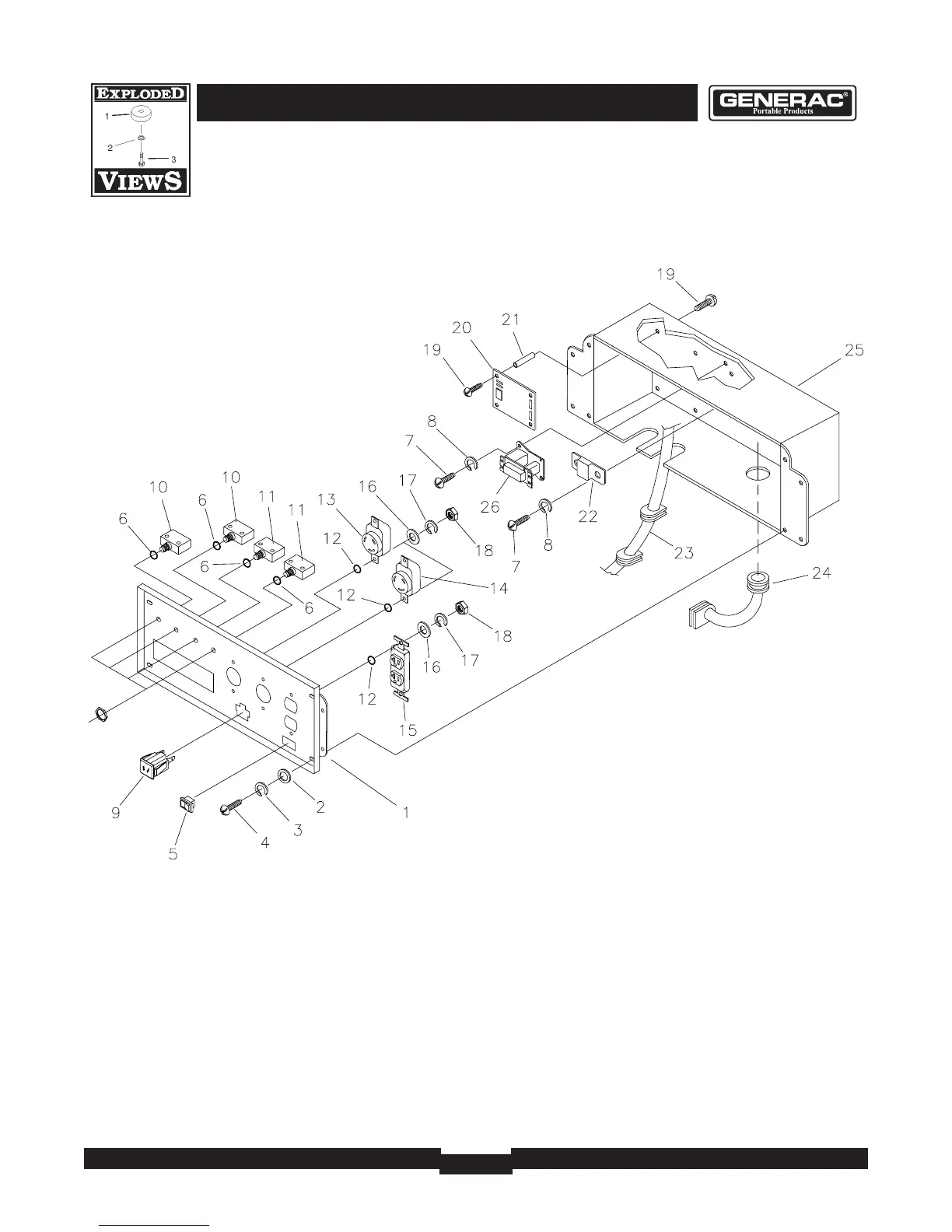

EXPLODED VIEW AND PARTS LIST - CONTROL PANEL
Item Part # Qty Description
1 A92070GS 1 PANEL, Control
2 23897GS 4 WASHER
3 49226GS 4 WASHER, Lock
4 91526GS 4 SCREW
5 82538GS 1 SWITCH, Idle Control
6 82881GS 4 WASHER, Lock
7 43181GS 4 SCREW
8 43182GS 4 WASHER, Lock
9 90418GS 1 OUTLET, 12V
10 75207AGS 2 BREAKER, Circuit, 30A
11 75207GS 2 BREAKER, Circuit, 20A
12 23365GS 6 WASHER
13 68868GS 1 OUTLET, 120V, 30A Locking
Item Part # Qty Description
14 43437GS 1 OUTLET, 120V/240V, 30A Locking
15 68759GS 1 OUTLET, 120V, 20A Duplex
16 43180GS 6 WASHER
17 22264GS 6 WASHER, Lock
18 51715GS 6 NUT
19 64526GS 8 SCREW
20 83970GS 1 BOARD, System Control
21 64525GS 4 STAND-OFF
22 87962GS 1 BREAKER, Circuit, 12V, 10A
23 84335GS 1 ASSY,Wire Harness
24 84134GS 1 GROMMET, Rubber Conn.
25 B92069GS 1 BOX, Control Panel
26 84028GS 1 TRANSFORMER, Idle Control
