10 Owner’s Manual for Mobile Light Tower
General Information
Component Locations

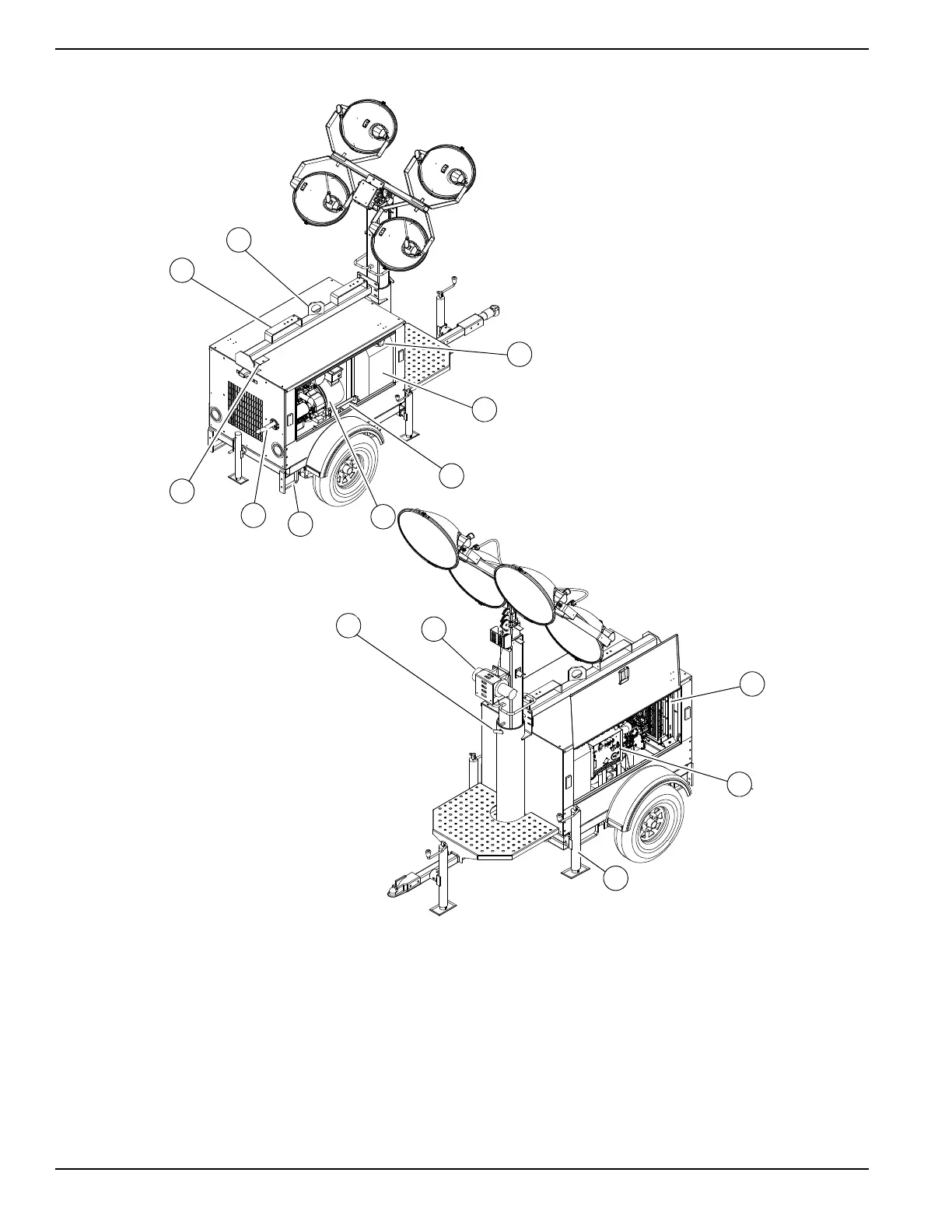

Figure 2-3. Component Locations
A Upper forklift pocket (2 locations) H Engine exhaust
B Central lifting point I Radiator access panel
C Fuel fill J Mast rotation knob
D Fuel tank K Electric winch
E Battery L Radiator
F Generator M Control panel
G Lower forklift pocket/tie-down point (4 locations) N Jacks attached to outriggers
