Owner’s Manual for Mobile Light T
ower
15
General Information
Unit Dimensions

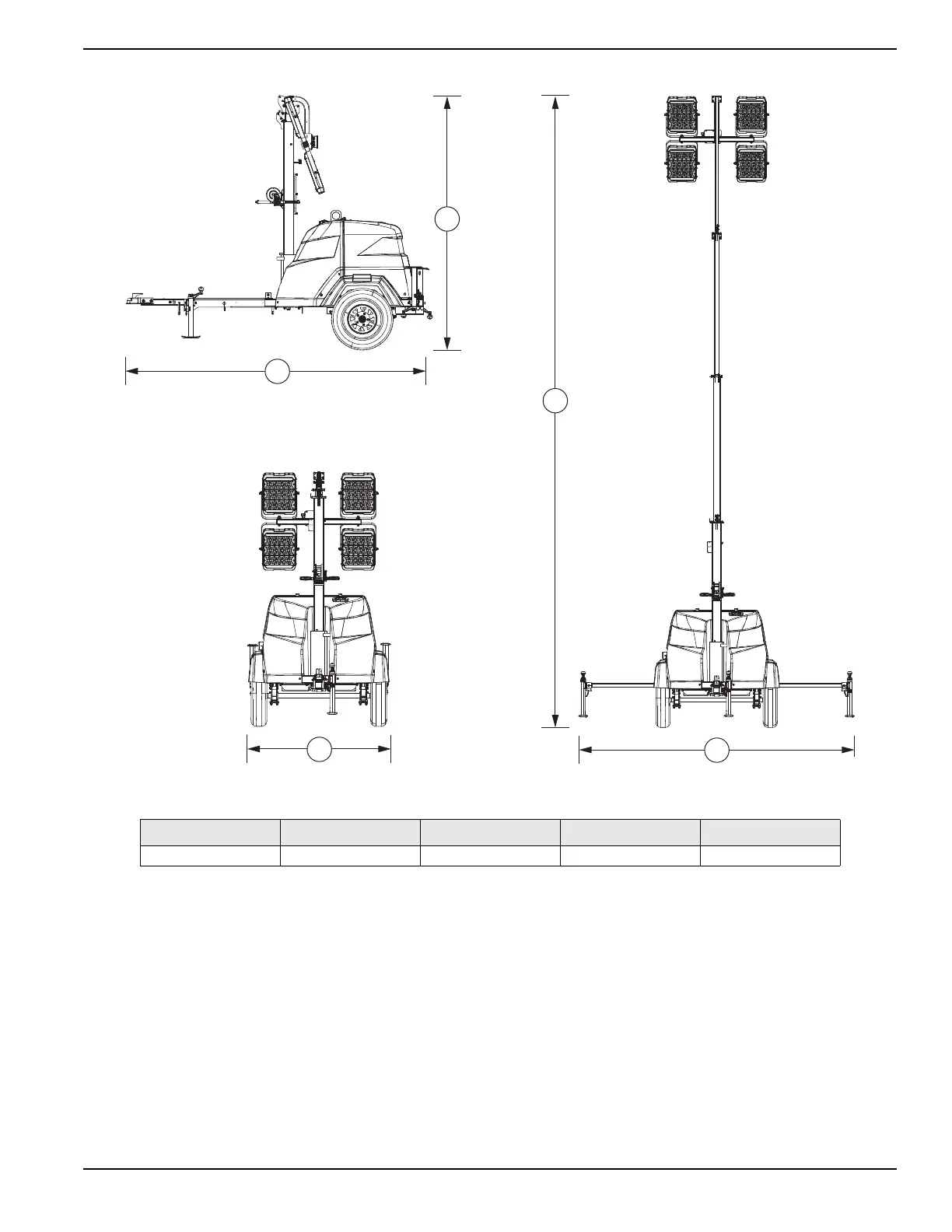

Figure 2-9. Unit Dimensions
A
B
C
D
E
1
18 in (3 m)
101 in (2.6 m)
23 ft (
7 m)
10 ft (3.05 m)
57 in (1.45
m)
A
B
C
E
D
009807
18
20
Table of Contents
Table of Contents
3
Section 1:Introduction and Safety
5
Introduction
5
Read this Manual Thoroughly
5
Safety Rules
5
How to Obtain Service
5
General Hazards
6
Explosion and Fire Hazards
6
Trailer Hazards
6
Electrical Hazards
7
Battery Hazards
7
Fuel Hazards
8
Engine Safety
8
Operating Safety
8
Positioning the Unit
8
Starting the Unit
8
Raising and Lowering the Mast
9
Service Safety
9
Towing Safety
9
Hitch and Coupling
9
Running Lights
10
Wheels and Tires
10
Safe Towing Techniques
10
Reporting Trailer Safety Defects
10
Safety and Operating Decals
11
Section 2:General Information
15
Specifications
15
Unit Serial Number Locations
16
Trailer Tongue Storage and Tow Positions
17
Place Trailer Tongue in Tow Position
17
Place Trailer Tongue in Storage Position
18
Unit Dimensions
19
Component Locations
20
Control Panel
22
Section 3: Operation
23
Light Tower Setup
23
Raising Mast-Manual Winch
24
Raising Mast-Electric Winch (if Equipped)
25
Prestart Checklist
26
Starting the Unit
26
Operating the Lights
27
Engine Derating
27
Customer Convenience Receptacles (if Equipped)
27
Load Limit and Overload
27
Shutting down the Unit
27
Removing Loads from Receptacles (if Equipped)
27
Automatic Shutdown
28
Storing the Unit
28
Lowering Mast-Manual Winch
28
Lowering Mast-Electric Winch (if Equipped)
28
Manually Lowering Electric Mast
29
Positive Air Shutdown (PAS) (if Equipped)
29
Test the PAS
29
Reset the PAS
29
Lower Radiator Hose Heater (if Equipped)
30
Tandem Tow (if Equipped)
30
Telemetry (if Equipped)
30
Spark Arrester (if Equipped)
30
Heated Fuel Filter (if Equipped)
30
Towing the Unit
30
Lifting the Unit
31
Tying down the Unit
32
Section 4:Maintenance
33
Emissions Information
33
Daily Walk-Around Inspection
33
General Maintenance
33
Preparing for Service
33
Cleaning the Unit
33
Inspecting the Unit
33
Basic Maintenance Schedule
34
Manual Winch: Use, Operation, and Maintenance
35
Prior to Use
35
Operation
35
Maintenance
35
Electric Winch (if Equipped): Use, Operation, and Maintenance
35
Winch Mechanical Brake
35
Trailer Wheel Bearings
36
Jack Maintenance
36
Section 5: Troubleshooting
37
General Troubleshooting
37
Troubleshooting the Lights
38
Section 6:Wiring Diagrams
39
Mast Junction Box Wiring and Light Connections
39
AC Analog (1 of 2)
40
AC Analog (2 of 2)
41
DC Analog
42
