8 Owner’s Manual for Power Zone Connectivity Server
Installation and Operation
Connection Details
Light Emitting Diodes (LEDs)
There are two LEDs at the front on the enclosure:
• Red LED: Represents system power.
– If red LED is on, Connectivity Server is powered.
– If red LED is off, Connectivity Server is not pow-
ered.
• Green LED: Represents RS-485 (only) communi-
cation status.
– If green LED is blinking, RS-485 communication
is working properly. The blinking rate will be 0.25
seconds on and 0.25 seconds off (2 Hz).
– If green LED is off, RS-485 communication is not
working properly or RS-485 interface is not con-
nected.
Connecting to the Connectivity
Server
The Connectivity Server can be accessed via Wi-Fi,
Bluetooth or Ethernet. ModBus RTU access can be
enabled using a third party ModBus/RS-485 to USB
converter.
NOTE: Do not enable Wi-Fi and Bluetooth
simultaneously. If Wi-Fi is needed, disable Bluetooth. If
Bluetooth is needed, disable Wi-Fi.
Wi-Fi Connection
1. See Figure 3-2. On the Power Zone Pro Main
Controller Built-in Display, select “System
Settings”.
2. Select “Enable” to enable Wi-Fi/Bluetooth. Wi-Fi
and BlueTooth cannot be enabled at the same
time.

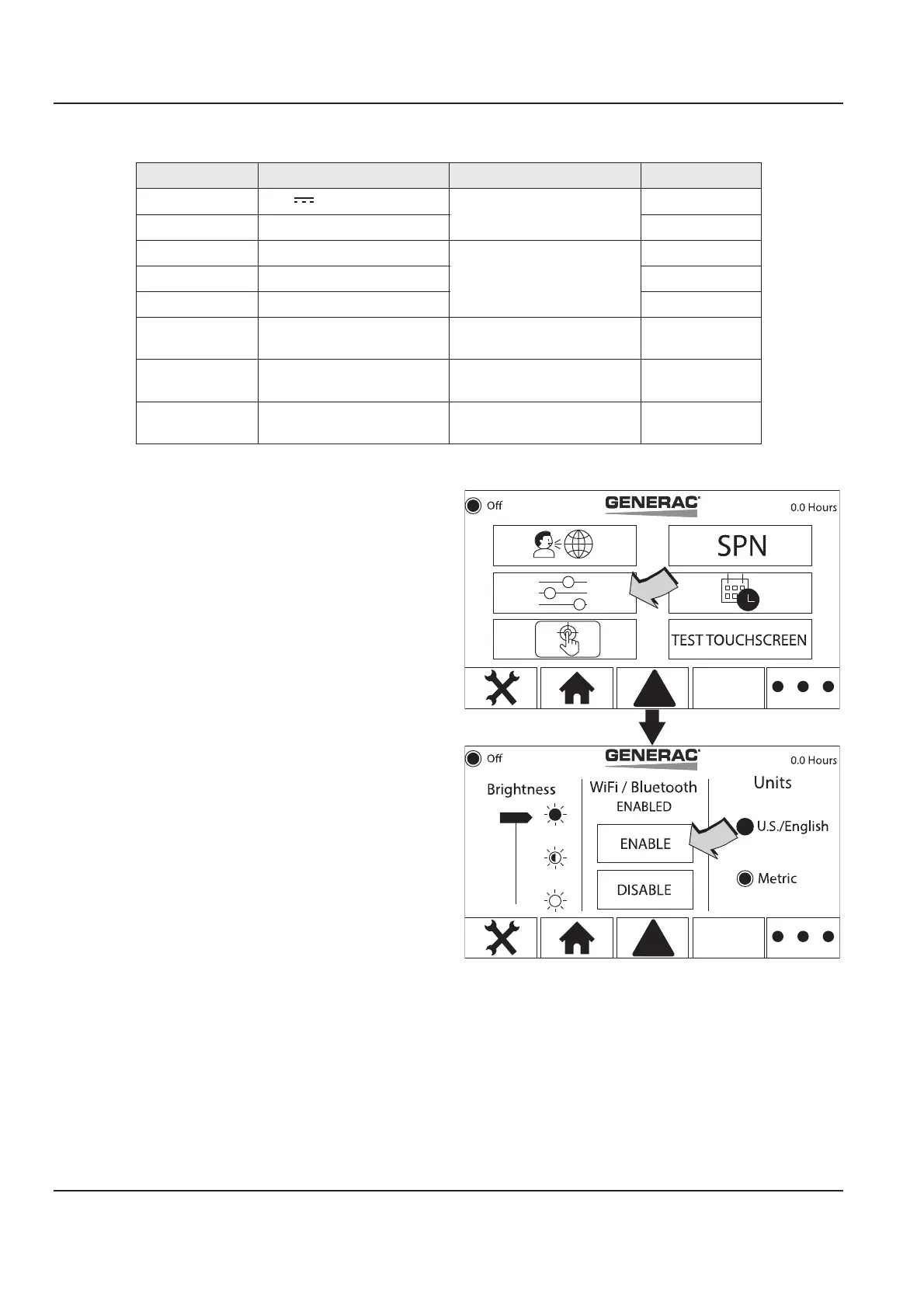

Figure 3-2. System Settings and Wi-Fi/Bluetooth
Connection
3. See Figure 3-3. To connect a mobile device to the
Connectivity Server using Wi-Fi, the Wi-Fi SSID,
password and IP address are required. This
information can be accessed from the Power Zone
Pro Main Controller “System Details” menu and by
selecting “Network Info”.
Connector Description Purpose Wire # (Default)
PWR_RS485-5 12 V
Provides power to the
Connectivity Server
15F
PWR_RS485-4 Ground 0C
PWR_RS485-3 RS-485 Ground
This is Modbus Master and is
used to connect to Power
Zone Pro Main Controller
0B
PWR_RS485-2 RS-485 - 393
PWR_RS485-1 RS-485 + 392
HDMI
High-Definition Multimedia
Device connector
For Generac Engineering Use
Only
–
Ethernet RJ-45 Ethernet connector
Used to connect to PC, BMS
or other external device
–
USB
Universal Serial Bus Type A
connector
Can be used for external add
on USB devices or modules
–
To Next Page
