14 Owner’s Manual for Power Zone Connectivity Server
Installation and Operation

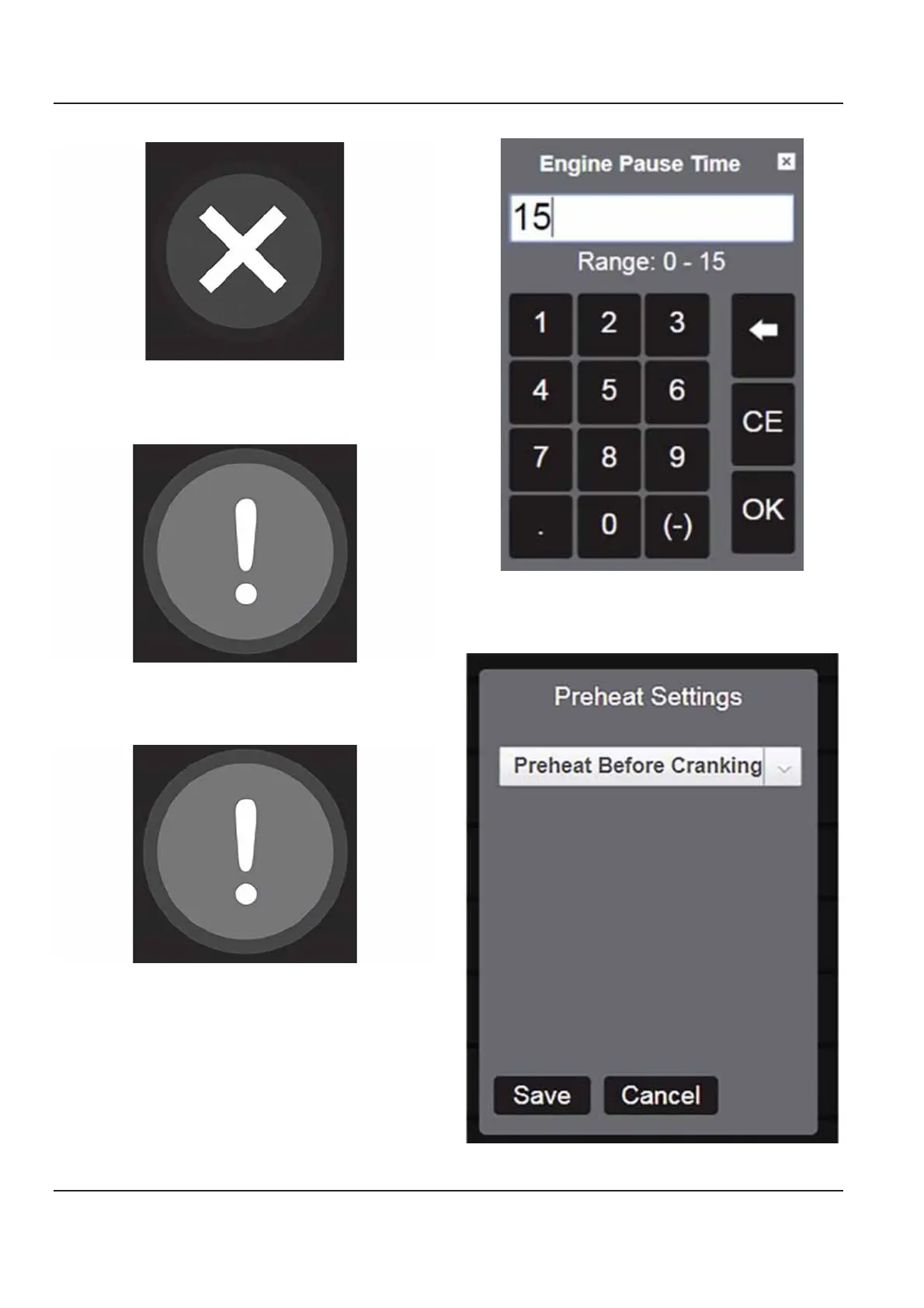

Figure 3-16. Shutdown Alarm Condition (Red)
Figure 3-17. Non-Shutdown Alarm Condition (Red)
Figure 3-18. Warning Condition (Yellow)
Editing
Editing of configuration parameter values is performed by
two methods: by entering a value (Figure 3-19) or
selecting a value using the pull down selection box
(Figure 3-20).
Figure 3-19. Numeric Value Editing (with ranges)
Figure 3-20. Pull Down Selection Box
007525
007526
007526
007528
