Owner’s Manual for Power Zone Connectivity Server 3
General Information
Section 2 General Information
Equipment Description
The Generac Power Zone Connectivity Server
(Assembly No. 10000039844) is a user interface for the
Power Zone system. The Connectivity Server can be
used in applications other than generator control.

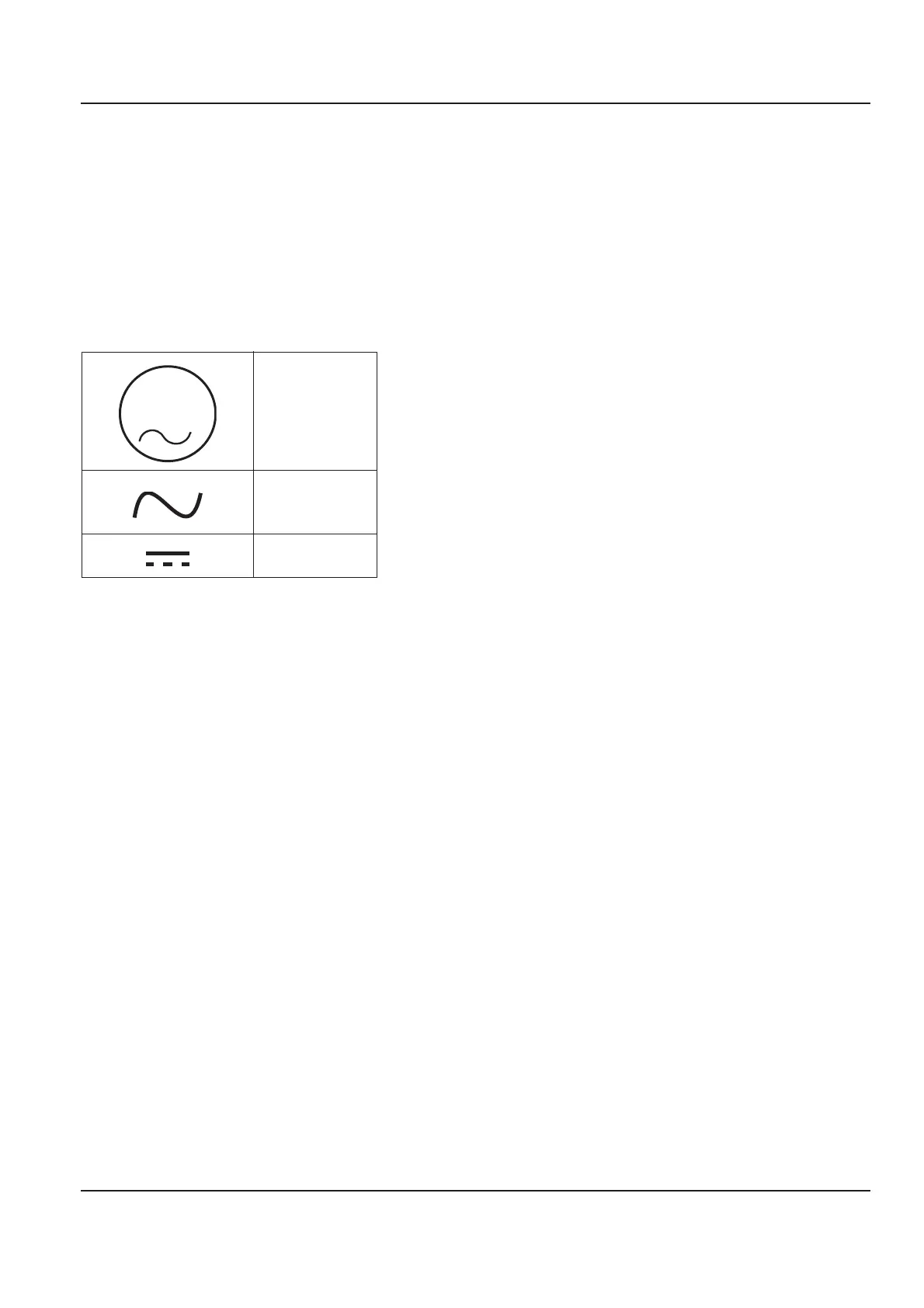

Symbol Definition
Standard Features
• Wi-Fi
®
/Bluetooth™
• AUTO/OFF/MANUAL Indication
• Not in AUTO Indication
• Alarm Acknowledge Button
• Multi-Lingual
• On Screen Editable Parameters
• Key Function Monitoring
– Three Phase Voltage, Amperage, kW, kVA,
and kVAR
– Selectable Line to Line or Line to Neutral Voltage
Measurements
– Voltage Frequency
– Engine Speed
– Engine Coolant Temperature
– Engine Oil Pressure
– Engine Oil Temperature
– Battery Voltage
– Warning and Alarm Indication
– Diagnostics
– Maintenance Events/Information
– Engine Hourmeter
• Communications Ports
– Ethernet – 1 Port
– RS-485 – 1 Port for Generator Main Controller
– USB – 1 Type A (Host)
Codes and Standards
• UL 2200
• UL6200
• CSA STD C22.2 No. 14
• C-ETL-US
• IEC 61010-1
• FCC
• NFPA 110 (Software Programmable Level for
1 or 2)
AC Generator
AC Voltage
DC Voltage
G
