Owner’s Manual for Power Zone Connectivity Server 13
Installation and Operation

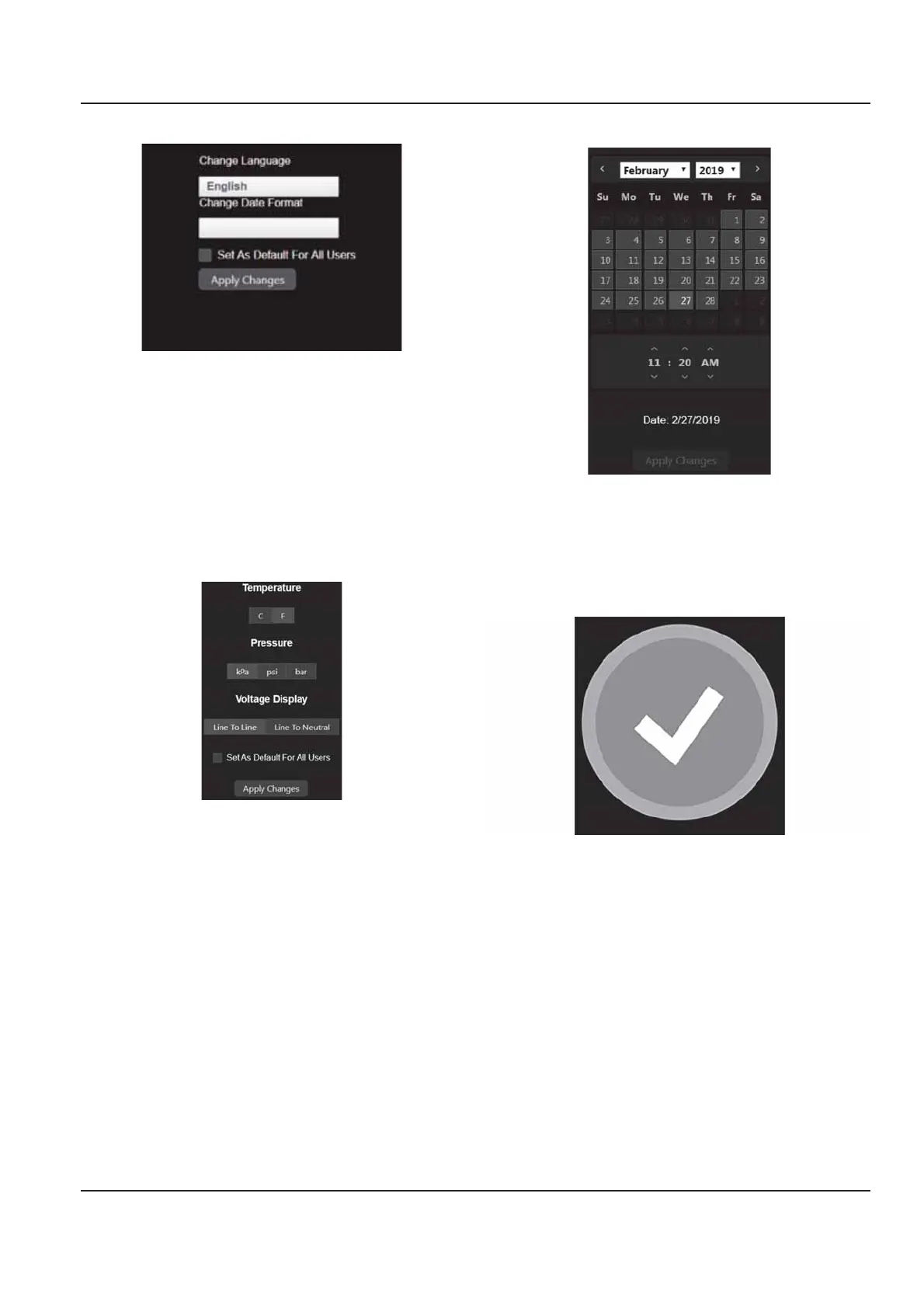

Figure 3-12. Language Selection
Units of Measure
To set the units of measure go to the (E) Setup icon and
choose “User”. A selection for “Units of Measure” will
appear on the right side of the screen. Checking the
“Save” button will save the selection. Checking the “Set
As Default” will apply the selection to the Built-in Display
and all new remote users.
Figure 3-13. Units of Measure
Date/Time
The system date and time can be set from the (E) Setup
icon. Navigate to Setup ĺ Calendar ĺ Date/Time.
Changing the date/time on the Connectivity Server
means a change to the “System Time” and this will
eventually change all other connected equipment
(displays and modules) in the system. This will affect
timestamps of data and execution of calendar based
commands.
Figure 3-14. Date/Time
Health Checkmark
See Figure 3-15. The checkmark indicates the system is
healthy.
Figure 3-15. System is Healthy (Green)
See Figure 3-16, Figure 3-17 and Figure 3-18. When
the generator has an alarm or warning status, the
checkmark will change to indicate the level of fault.
007522
007524
