20 Owner’s Manual for Power Zone Connectivity Server
Installation and Operation
• Analog Pressure Loss Delay: The amount of time
(in seconds) from the last good sensor value
before the pressure sensor value is considered
lost.

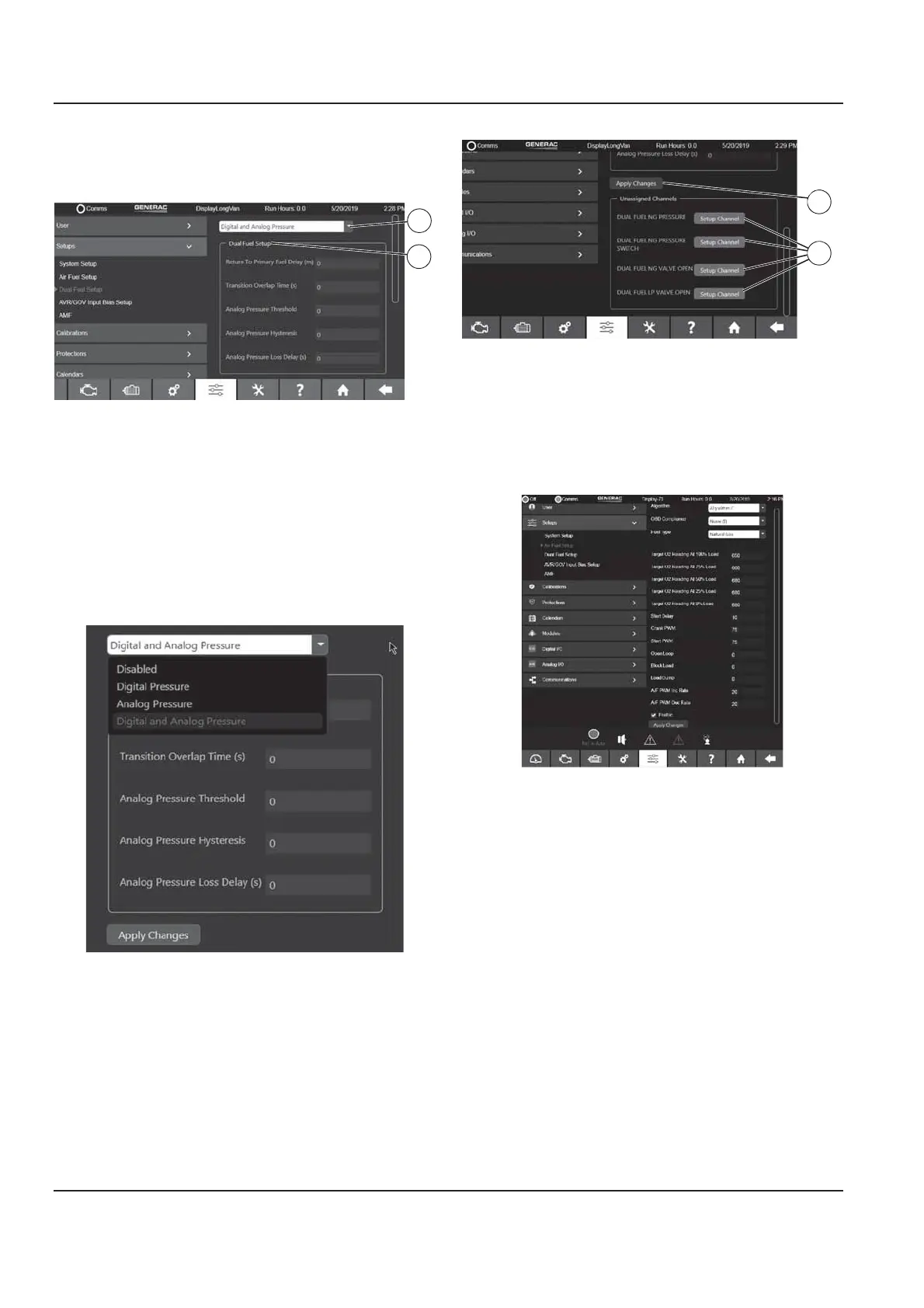

Figure 3-38. Dual Fuel Settings
See Figure 3-39. Select the dropdown to choose which
sensor(s), if any, are attached to the generator. Select
“Disabled” if there are no sensors attached.
NOTE: The settings for Analog Pressure Threshold,
Analog Pressure Hysteresis, and Analog Pressure Loss
Delay(s) are only available when using an analog
pressure sensor and are in the units of that sensor value.
Figure 3-39. Sensors
See Figure 3-40. As a precaution, the screen will
indicate when a needed sensor channel is not setup for
the configuration chosen. Select the “Setup Channel”
button (A) to navigate to the appropriate I/O configuration
screen. If all channels are set, this section will be empty.
If the “Apply Changes” button (B) is selected and there
are unassigned channels, the settings will be applied and
a warning message will indicate a potential problem has
been detected.
Figure 3-40. Setup Channel
Air/Fuel Setup
See Figure 3-41. The Air/Fuel Setup screen is
programmed at the factory to calibrate emissions and
should not be adjusted.
Figure 3-41. Air/Fuel Setup
009711
007542
To Next Page
