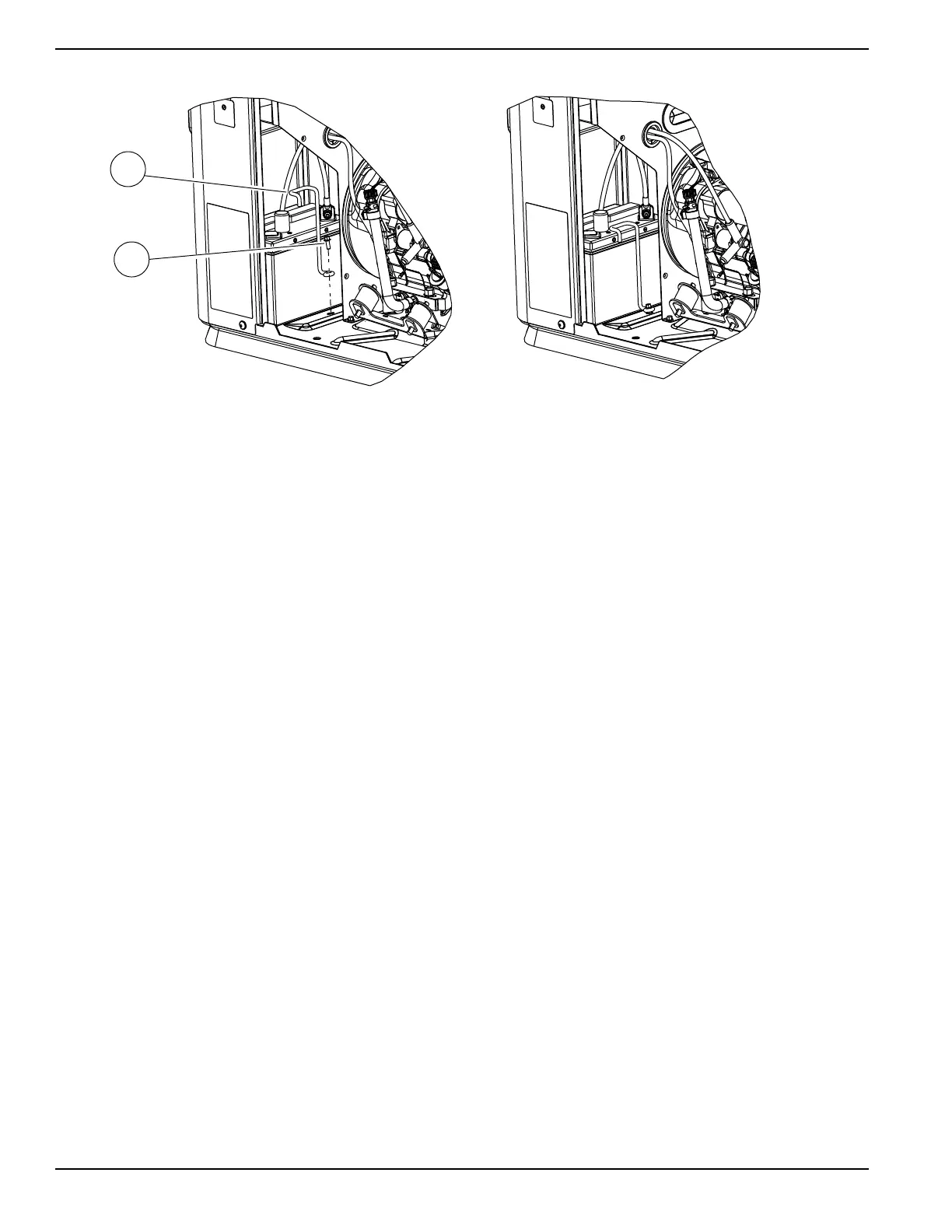

Figure 6-4. Battery Installation
8. Install the 7.5 Amp ATO® fuse in the generator
control panel.
9. Assemble the battery access panel with the 2 hex
head screws and tighten securely.
10. Assemble the front door by hooking it to the base
and aligning the slots to the hooks on the top of the
enclosure.
11. Assemble the top lid with the 4 Allen screws and
secure it in place.
Always recycle batteries in accordance with local laws
and regulations. Contact your local solid waste collection
site or recycling facility to obtain information on local
recycling processes. For more information on battery
recycling, visit the Battery Council International website
at: http://batterycouncil.org/.
