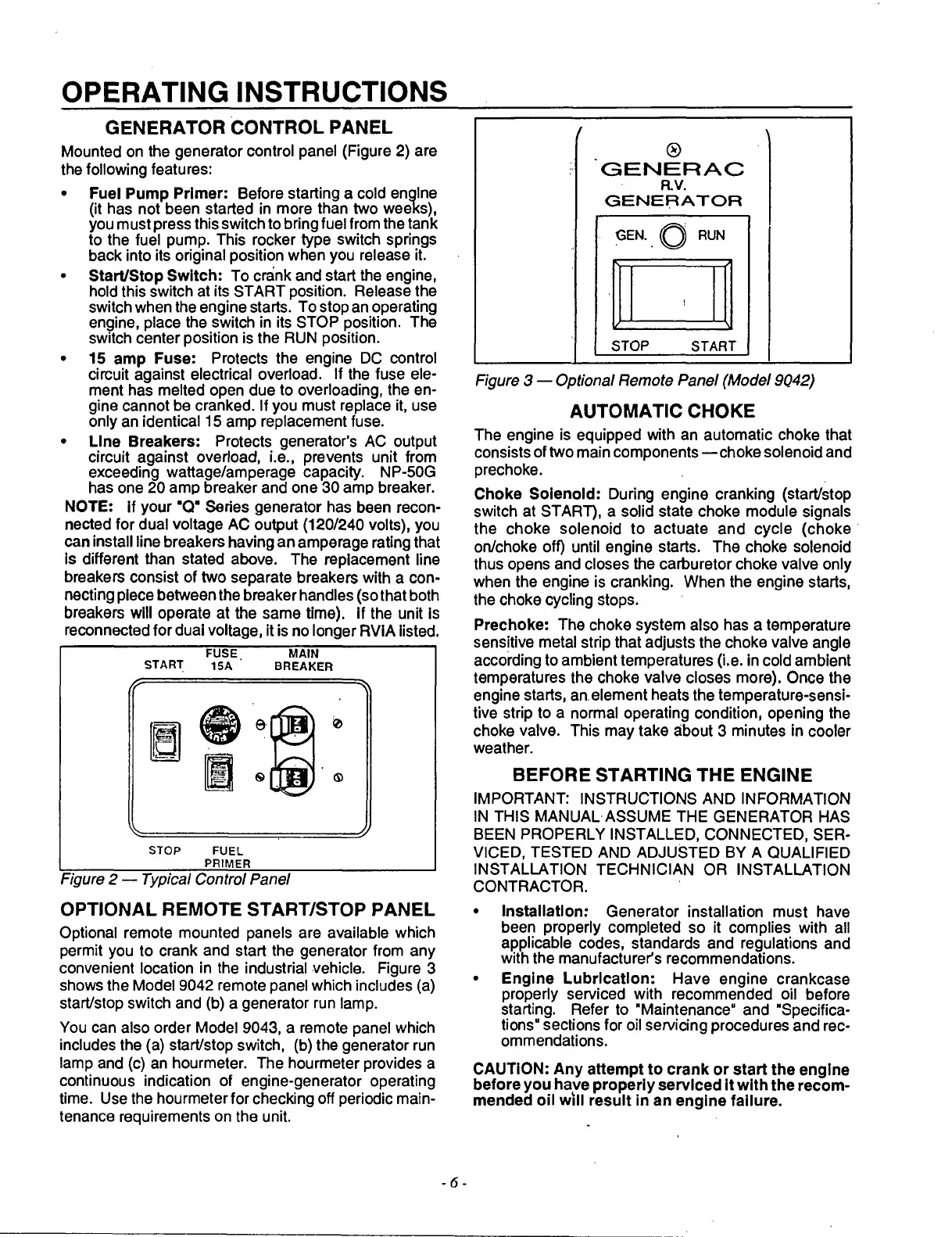

OPERATING
INSTRUCTIONS
GENERATOR
CONTROL
PANEL
Mounted
on
the
generator
control
panel
(Figure
2)
are
the
following
features:
Fuel
Pump
Primer:
Before
starting
a
cold
engine
(it
has
not
been
started
in
more
than
two
weeks),
you
must
press
this
switch
to
bring
fuel
from
the
tank
to
the
fuel
pump.
This
rocker
type
switch
springs
back
into
its
original
position
when
you
release
it.
Start/Stop
Switch:
To
crank
and
start
the
engine,
hold
this
switch
at
its
START
position.
Release
the
switch
when
the
engine
starts.
To
stop
an
operating
engine,
place
the
switch
in
its
STOP
position.
The
switch
center
position
is
the
RUN
position.
15
amp
Fuse:
Protects
the
engine
DC
control
circuit
against
electrical
overload.
If
the
fuse
ele¬
ment
has
melted
open
due
to
overloading,
the
en¬
gine
cannot
be
cranked.
If
you
must
replace
it,
use
only
an
identical
15
amp
replacement
fuse.
Line
Breakers:
Protects
generator’s
AC
output
circuit
against
overload,
i.e.,
prevents
unit
from
exceeding
wattage/amperage
capacity.
NP-50G
has
one
20
amp
breaker
and
one
30
amp
breaker.
NOTE:
If
your
"Q"
Series
generator
has
been
recon¬
nected
for
dual
voltage
AC
output
(120/240
volts),
you
can
install
line
breakers
having
an
amperage
rating
that
is
different
than
stated
above.
The
replacement
line
breakers
consist
of
two
separate
breakers
with
a
con¬
necting
piece
between
the
breaker
handles
(so
that
both
breakers
will
operate
at
the
same
time).
If
the
unit
is
reconnected
for
dual
voltage,
it
is
no
longer
RVIA
listed.
OPTIONAL
REMOTE
START/STOP
PANEL
Optional
remote
mounted
panels
are
available
which
permit
you
to
crank
and
start
the
generator
from
any
convenient
location
in
the
industrial
vehicle.
Figure
3
shows
the
Model
9042
remote
panel
which
includes
(a)
start/stop
switch
and
(b)
a
generator
run
lamp.
You
can
also
order
Model
9043,
a
remote
panel
which
includes
the
(a)
start/stop
switch,
(b)
the
generator
run
lamp
and
(c)
an
hourmeter.
The
hourmeter
provides
a
continuous
indication
of
engine-generator
operating
time.
Use
the
hourmeter
for
checking
off
periodic
main¬
tenance
requirements
on
the
unit.
(
©
GENERAC
R.V.
GENERATOR
GEN.
(Q)
RUN
Figure
3
Optional
Remote
Panel
(Model
9042)
AUTOMATIC
CHOKE
The
engine
is
equipped
with
an
automatic
choke
that
consists
of
two
main
components—choke
solenoid
and
prechoke.
Choke
Solenoid:
During
engine
cranking
(start/stop
switch
at
START),
a
solid
state
choke
module
signals
the
choke
solenoid
to
actuate
and
cycle
(choke
on/choke
off)
until
engine
starts.
The
choke
solenoid
thus
opens
and
closes
the
carburetor
choke
valve
only
when
the
engine
is
cranking.
When
the
engine
starts,
the
choke
cycling
stops.
Prechoke:
The
choke
system
also
has
a
temperature
sensjtive
metal
strip
that
adjusts
the
choke
valve
angle
according
to
ambient
temperatures
(i.e.
in
cold
ambient
temperatures
the
choke
valve
closes
more).
Once
the
engine
starts,
an
element
heats
the
temperature-sensi¬
tive
strip
to
a
normal
operating
condition,
opening
the
choke
valve.
This
may
take
about
3
minutes
in
cooler
weather.
BEFORE
STARTING
THE
ENGINE
IMPORTANT:
INSTRUCTIONS
AND
INFORMATION
IN
THIS
MANUAL
ASSUME
THE
GENERATOR
HAS
BEEN
PROPERLY
INSTALLED,
CONNECTED,
SER¬
VICED,
TESTED
AND
ADJUSTED
BY
A
QUALIFIED
INSTALLATION
TECHNICIAN
OR
INSTALLATION
CONTRACTOR.
Installation:
Generator
installation
must
have
been
properly
completed
so
it
complies
with
all
applicable
codes,
standards
and
regulations
and
with
the
manufacturer’s
recommendations.
Engine
Lubrication:
Have
engine
crankcase
properly
serviced
with
recommended
oil
before
starting.
Refer
to
"Maintenance''
and
"Specifica¬
tions”
sections
for
oil
servicing
procedures
and
rec¬
ommendations.
CAUTION:
Any
attempt
to
crank
or
start
the
engine
before
you
have
properly
serviced
it
with
the
recom¬
mended
oil
will
result
in
an
engine
failure.
FUSE
MAIN
START
ISA
BREAKER
(r
%
%
»
STOP
FUEL
_
PRIMER
_
Figure
2
Typical
Control
Panel
6
