Section 7 Electrical Data

62 Diagnostic Repair Manual

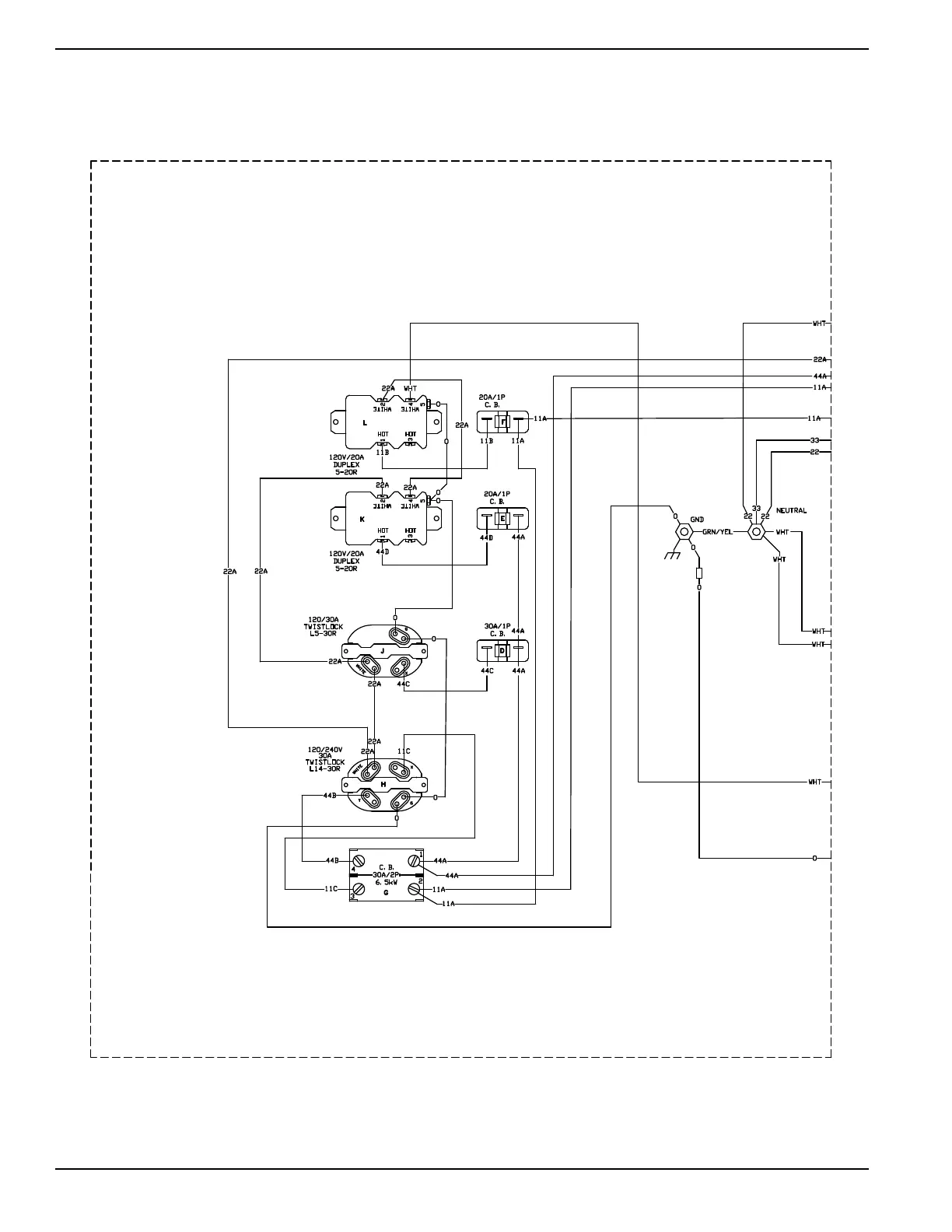

Wiring Diagram and Electrical Schematic, XC6500E/XC8000E Drawing No. 10000010343-A

WIRING - DIAGRAM

XC6.5E/XC8.0E PORTABLE

DRAWING #:10000010343

REVISION: -A-

DATE: 12/13/16
