Model 1000 Humidier Installation Manual
Table of Contents
Specications 3
Unit Location 3
Additional Materials That May Be Necessary: 3
Installation 4-5
Installing The Control 5-6
Final Steps Of Installation 7
How The Humidier Works 7
Maintenance 8
Parts Drawing 8
Humidier Chassis Cut Out 9
Inside Your Box 9
Trouble Shooting 10
FAQ’s 10-11
Limited Warranty 12
Unit Location
• For installation on a vertical surface of the warm air plenum of any forced air furnace.
• WARNING: Disconnect electrical power before beginning installation.
• Do not install where temperatures fall below 32°F / 0° C or where plenum temperatures exceed 200° F / 93° C.
For maximum evaporative capacity, install this humidier on the warm air supply plenum.
Additional Materials That May Be Necessary:
1. 1/4" Diameter plastic supply tubing for cold water applications, or 1/4" copper supply tubing for hot water applications
2. Current sensing relay (Model #GA50 - GFI #7026) / or single pole single throw isolation relay
3. Junction box, 115V grounding outlet, cover and wire
4. 1/2” I.D. Drain hose / 3/4" PVC drain
5. #8 Self-piercing sheet metal screws
6. Misc. wire and connectors
Specifications
• Model: 1000 (A & M) Elite Flow Through Humidiers (GFI #5730 & #5735)
• Type: Fan Powered Flow Through
• GPD: 18 Based on 120° F / 49° C Plenum Temperature
• Warranty (Years): 10
• Replacement Vapor Pad
®
: GA19 (GFI#7919) (Replace 1-2 times per season)
• Dimensions (Inches): 16 W x 16-1/2 H x 10-1/2 D
• Weight (Pounds): 15
• Home Size (Sq. Ft.): To 3,000
• Installation: Warm Air / Return Air Plenum
• Plenum Opening (Inches): 14-1/8 W X 12 H
• Pallet Qty: 24
• Cabinet Construction: UV-Stable Automotive Grade Plastic
• Humidistat (Included): “M” Models: MHX3C / “A” Models: GFX3
• Voltage: 120VAC
• In The Box: “M” Models: MHX3C / “A” Models: GFX3 (Incuded) Humidier,
Humidistat, Control Bypass Damper, 24V Transformer, Solenoid Valve, Vapor Pad
®
, Saddle Valve, (GCV3412 Code Valve -
A Models), Installation Instructions, Template, Parts.

!

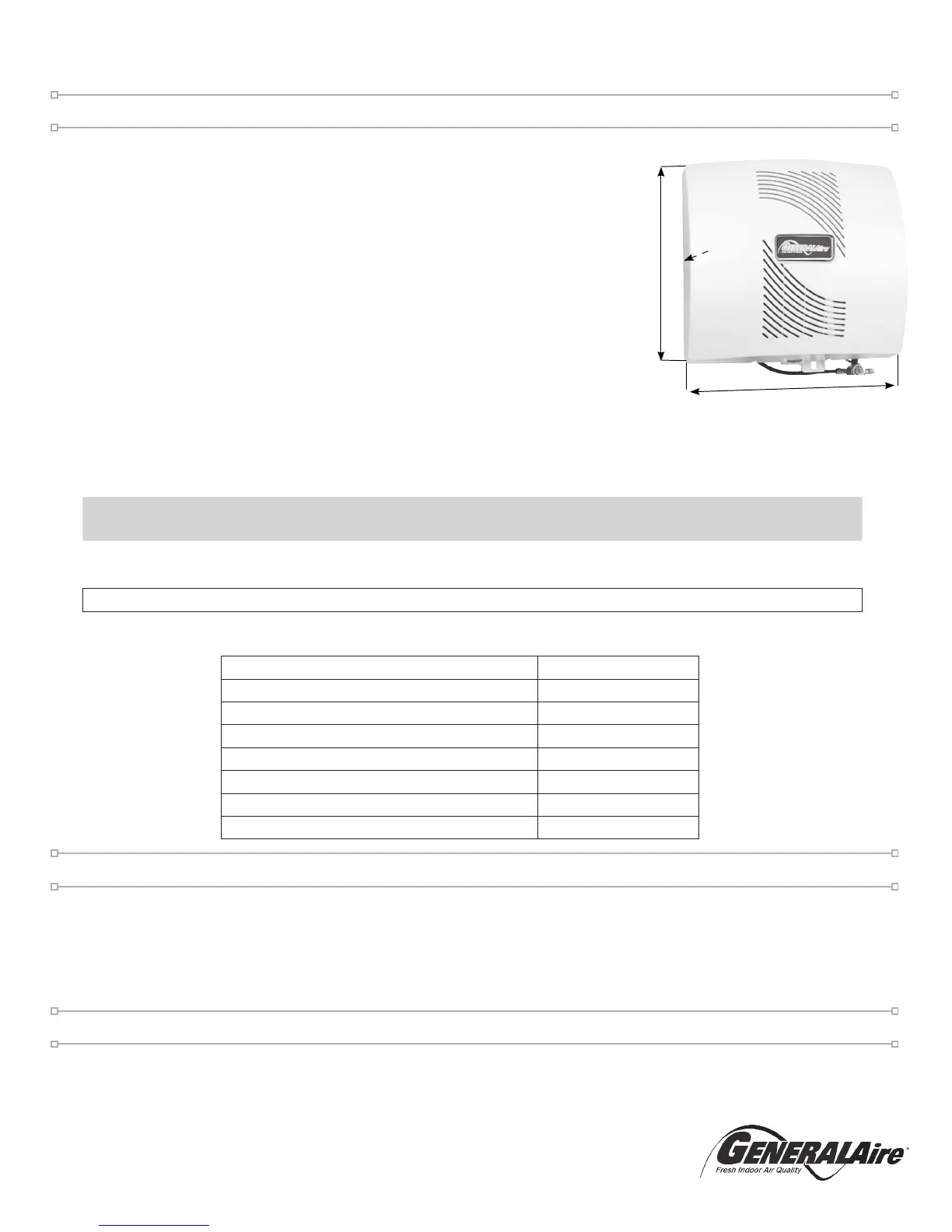

16” W
16-1/2” H
10-1/2” D
Expected Humidity Performance Coverage in Square Feet Based on Construction Type
Model No. GPD
Loose
(0.75 AC/H)
Average
(0.50 AC/H)
Tight
(0.30 AC/H)
Elite 570 12 800 Sq. Ft. 1200 Sq. Ft. 2000 Sq. Ft.
Elite 900 17 1115 Sq. Ft. 1650 Sq. Ft. 2800 Sq. Ft.
Elite 1000 18 1175 Sq. Ft. 1770 Sq. Ft. 3000 Sq. Ft.
Outside Design Temperature 0° F / -18° C
Outside Design R.H. 70% R.H.
Inside Design Temperature 70° F / 21° C
Inside Design R.H. 30% R.H.
Air Changes/hour (AC/H) 0.30
Ceiling Height (Feet) 8
Furnace Plenum Temperature 120° F / 49° C
Furnace Run Time For Calculating Sq. Ft. 8 Hour /1 Day
Humidifier Performance Baseline Criteria
