GeneralAire 1000 - Humidifier Chassis Cut out; Inside Your Box

9
www.generallters.com
Model 1000 Humidier Installation Manual
Inside Your Box
Humidifier Chassis Cut Out
Model 1000A (GFI#5730) includes:
Humidier components: GA19 Vapor pad, Solenoid Assembly
Accessories: GFX3 Automatic Digital Humidistat, Code Valve, Saddle Valve
Model 1000M (GFI#5735) includes:
Humidier Components: GA19 Vapor Pad, Solenoid Assembly, Relay Circuit Board
Accessories: MHX3C Manual Humidistat, Saddle Valve

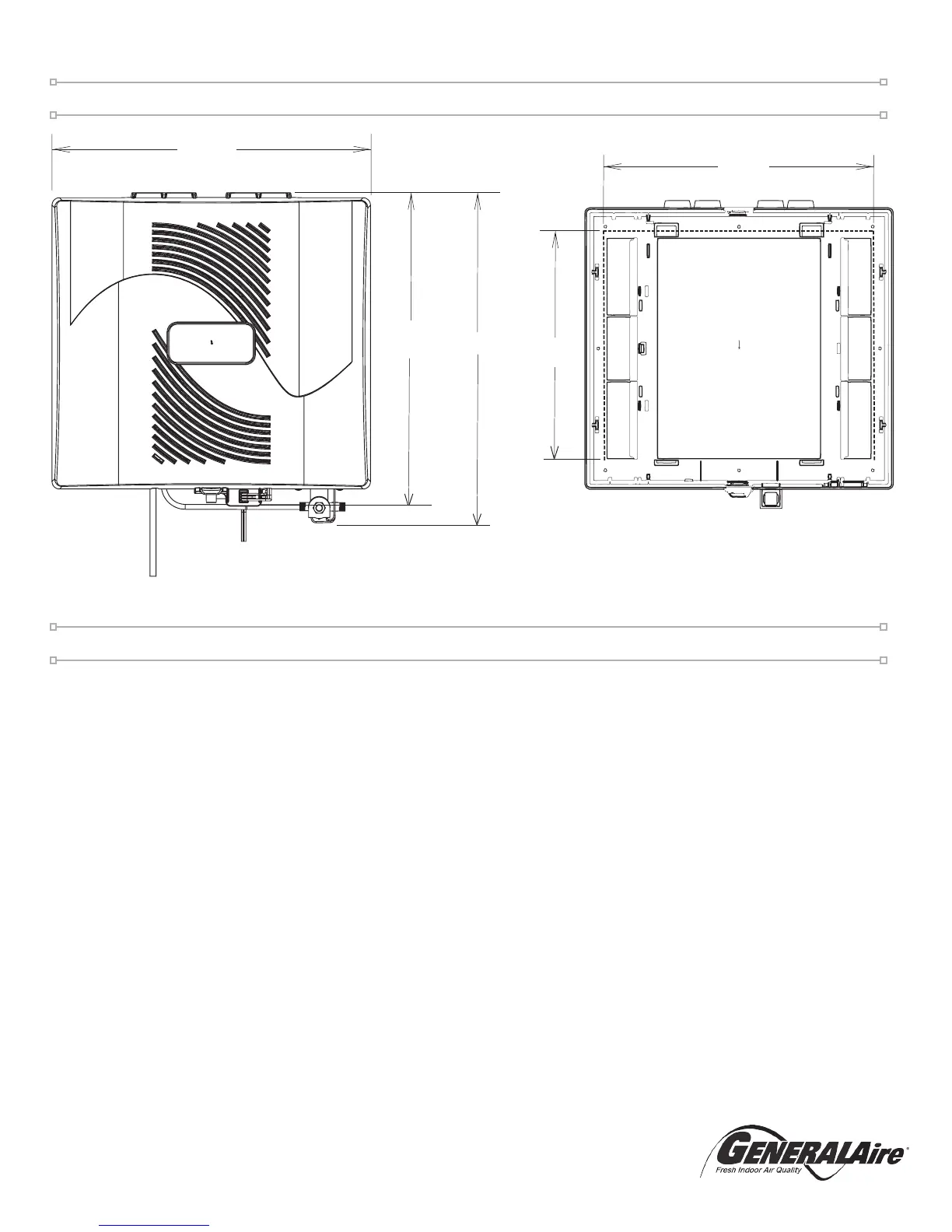

16-3/4”
17”
16-1/2”
12-1/8”
14-1/8”
Humidier Chassis with plenum
cut out shown as dashed lines
