Model 1000 Humidier Installation Manual
Breathe Healthier! Residential Whole-House Indoor Air Quality
GA4237 MOTOR
900-71 NAMEPLATE
900-9 NOZZLE
900-10 SPOUT
900-40 PAD RAIL
GA19 EVAPORATOR PAD
900-15 DISTRIBUTOR TROUGH
GA4247 FAN BLADE
GA4231 ORIFICE - YELLOW
P-190 COMPRESSION SLEEVE (PLASTIC)/P102 COPMRESSION SLEEVE (BRASS)
P-101 COMPRESSION NUT
GA4235 DISTRIBUTOR TUBE
P-189 TUBE SUPPORT
P-101 COMPRESSION NUT
P-102 COMPRESSION SLEEVE (BRASS) OR
P-190 COMPRESSION SLEEVE (PLASTIC)
GA4004 STRAINER SCREEN
GA4045 SOLENOID & HARNESS
ASSEMBLY
900-14 DRAIN PAN
1000-11 HARNESS - BOARD
GA4238 RELAY ASS'Y
1137-31 POWER SUPPLY CORD

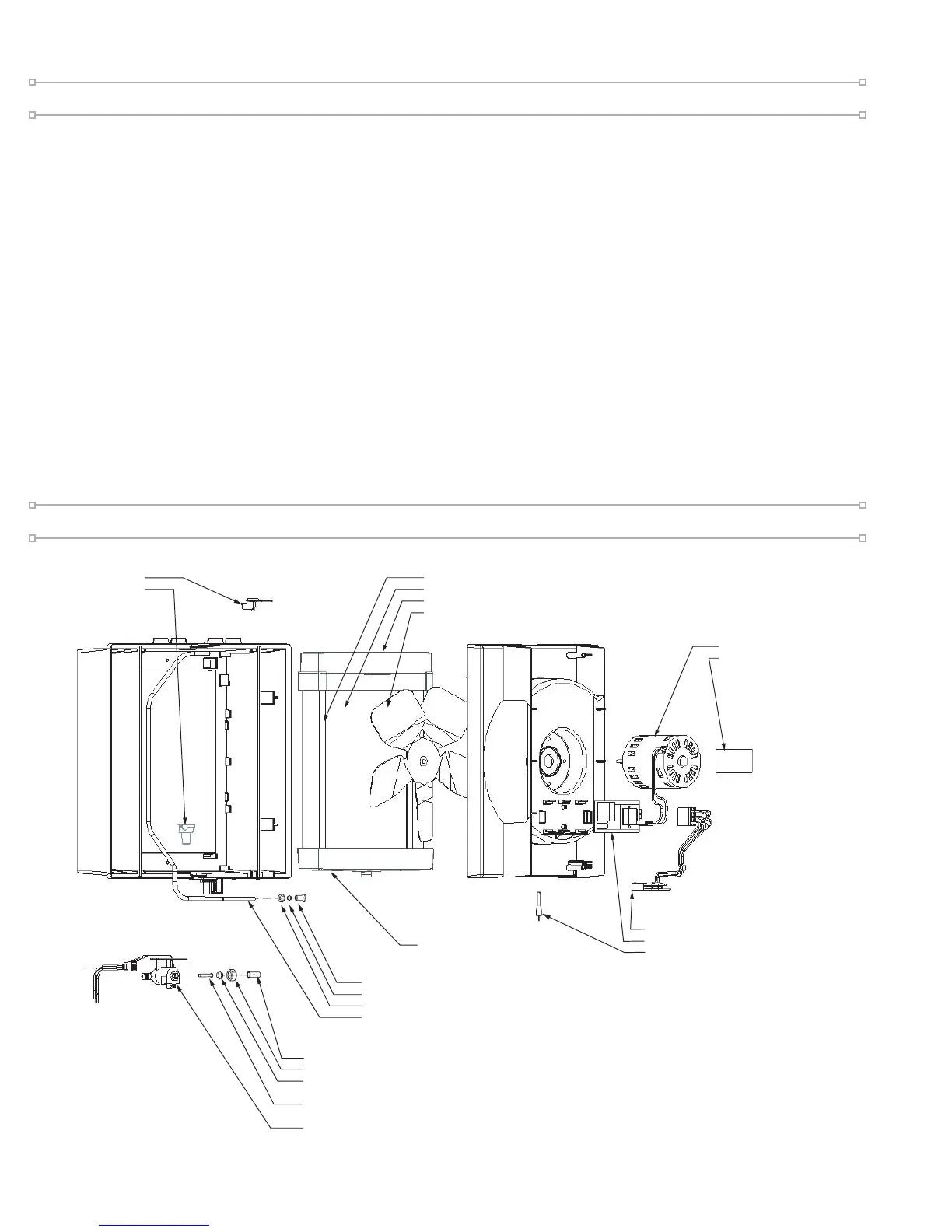

Parts Drawing
Maintenance
Your humidier is engineered to give helpful and trouble-free humidication. For maximum efciency the following
cleaning procedures should be carried out at the end of each heating season:
1. Turn off the water supply and electrical power to the humidier.
2. Remove cover, water distributor trough, used Vapor Pad
®
, pad rails and drain pan. Clean excessive mineral
deposits from the distributor trough, drain pan, pad rails and humidier cabinet. A solution of 1/2 vinegar & 1/2
water will help loosen mineral deposits. Inspect drain hose, clean or replace as necessary.
3. Insert a new GA19 Vapor Pad
®
(GFI# 7919; black notch on top). Install trough, pad rails and drain pan. Replace
cover, reconnect electrical plug. Replace Vapor Pad
®
yearly for peak performance.
4. In heavy mineral areas or if the solenoid valve fails to function disconnect the 1/4” water supply line from the
solenoid valve. Carefully pull the strainer screen (GFI #7564) from the valve body. Clean the mineral deposits from
all parts. If the orice is clogged, it may be opened by inserting a small pin. Reinsert the lter into the valve body.
5. Reconnect the 1/4” water line to the solenoid valve if necessary. Turn on the water supply and check all points for
leakage. The operation of the unit may be checked by starting the furnace. The humidier operates only when the
furnace blower is running or the burner circuit is energized. The humidier is now ready for operation.
6. During the summer, turn OFF the water supply and electrical power to the humidier.
