Genesis GXP Series User Manual

© 2016 Genesis Attachments, LLC
Genesis GXP Jaw Armor
17

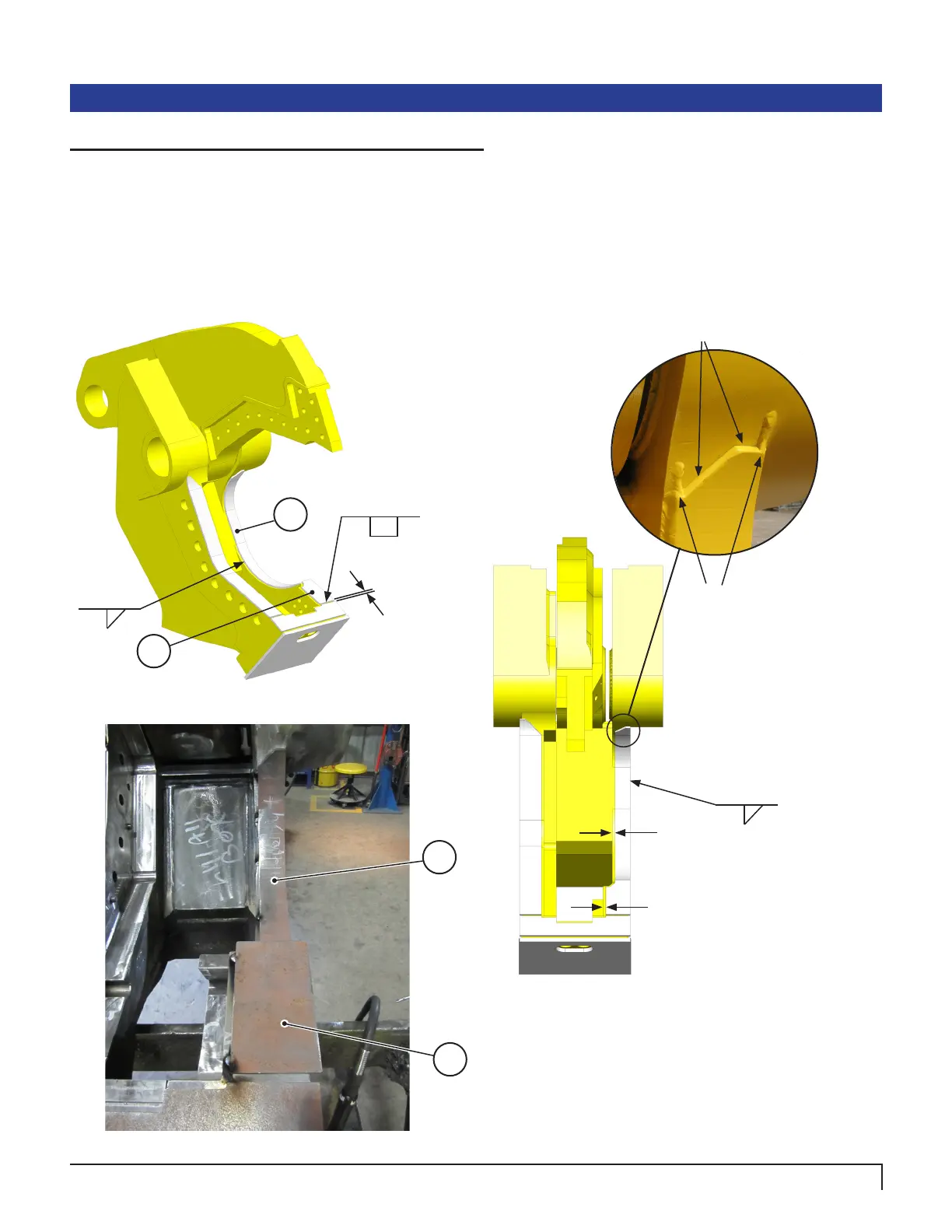

SET-UP AND TACK PROCEDURE
Lower Guide Side and Guide Blade Seat
Set Item 2 onto the lower guide side and hold the offset dimension (See Figure 17b). Clamp down
ush with the prole and tack weld into position. Set Item 5 onto the guide blade seat and hold
the offset dimension (See Figures 17a and b). Clamp down and tack weld into position.
Extend welds 1.50”
past the Jaw Armor.
Then grind weld ends
smooth and taper to
parent metal.
No Weld
2
5
A
D
Figure 17a
Figure 17c
Figure 17b
Figure 17d
A
(
A
A
2
5
D
