Genesis GXP Series User Manual

© 2016 Genesis Attachments, LLC
Genesis GXP Jaw Armor
18

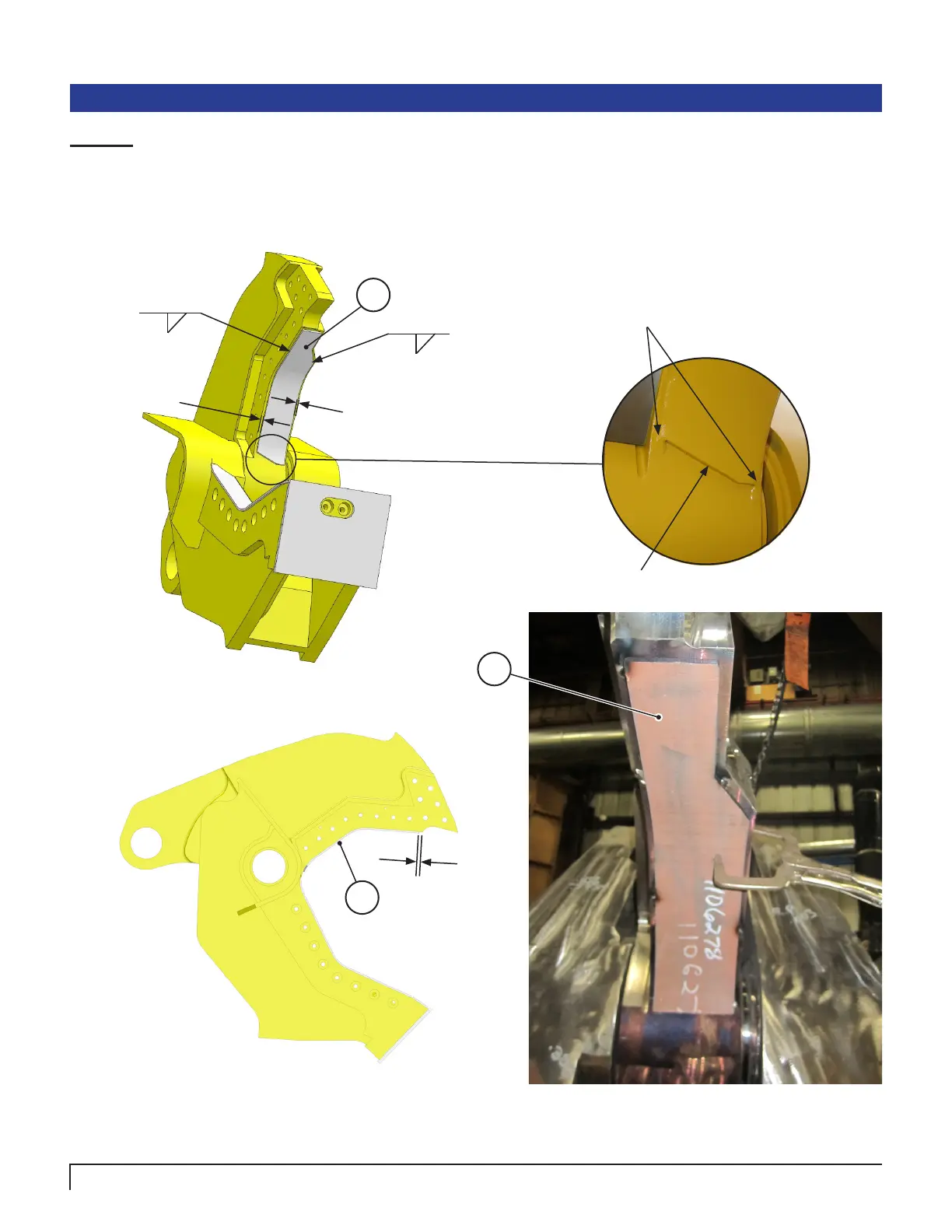

SET-UP AND TACK PROCEDURE
Upper
Place Item 6 at the bottom of the upper jaw (See Figure 18a). Make sure the plate has the required
width on all sides for the correct size weld. Clamp ush to the jaw prole and tack weld in place.
Figure 18a
Extend welds 1.50” past the Jaw Armor. Then
grind weld ends smooth and taper to parent
metal.
A
A
No weld
D
B
6
6
6
C
Figure 18b
Figure 18c
Figure 18d
